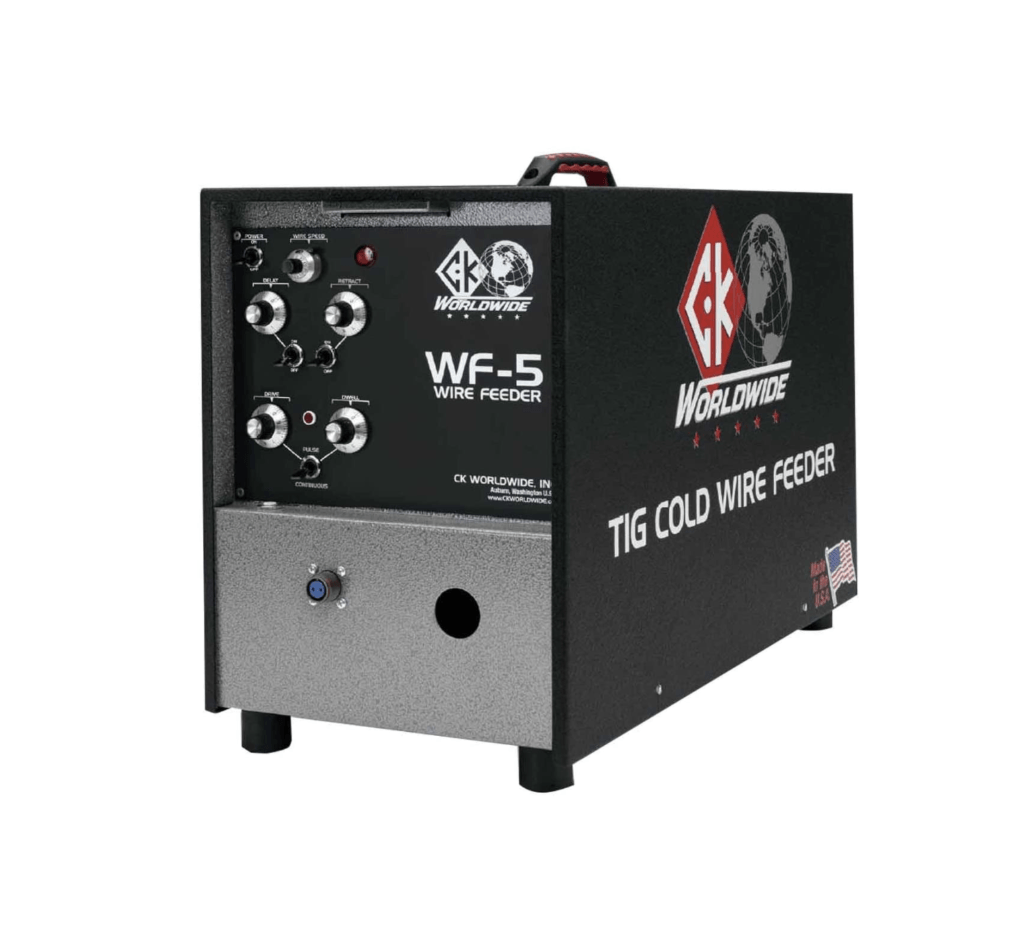

CK Worldwide Cold Wire Feed Unit (WF5)

CK Worldwide Wire Feeder WF5

Automate the addition of filler metal with the touch of a button using the WF-5 Cold Wire Feeder. This machine works independently to provide continuous filler metal for your TIG welding needs.

• Increases productivity
• Automates adding of filler metal
• All parameters can be duplicated for consistency
• Dual groove drive roll accepts multiple wire sizes
• Accepts standard wire spool sizes
• Eliminates filler rod stub loss
• Machine cover keeps filler metal clean and uncontaminated
• Makes fully-automated, or one-handed, TIG welding possible

WF-5 SPECIFICATIONS

Voltage | 115V AC (220V AC 50 hz. —Special Order)
Phase | Single Phase
Frequency | 50/60 Hz.
Height | 15" (38.1cm)
Width | 10" (25.4cm)
Length | 21" (53.3cm)
Weight | 54 lbs. (24.5kg)
Filler Wire Spool Size | 12" (30.5cm)
Filler Wire Sizes | 023" (.5mm), .030" (.8mm), .035" (.9mm), .045" (1.1mm), 1/16" (1.6mm)
Wire Feed Speed Range | 0–700 in/min (0–1,775cm/min)
Feed Time (pulsed mode) | continuously variable
Dwell Time (pulsed mode) | continuously variable
Delay Start Time | continuously variable
Wire Retract Time | continuously variable
