    CK Worldwide TIG Welding System (MT200 AC/DC)

    Save 9% Save 9%
    Original price $2,195.00
    Original price $2,195.00 - Original price $2,195.00
    Original price $2,195.00
    Current price $1,995.00
    $1,995.00 - $1,995.00
    Current price $1,995.00
    SKU CK-MT200-AC/DC

    The MT200-AC/DC is the answer to both creativity and production driven TIG welding. This innovative TIG welding machine provides the ability to quickly and efficiently adapt to dynamic welding situations, while maintaining the quality of experience you have come to expect from CK Worldwide.

    Owners Manual

    CREATE, REPAIR, & CUSTOMIZE

    •  High-performance dual voltage inverter for 115V and 220V

    •  Two dynamic welding modes: GTAW (TIG) and SMAW (Stick)

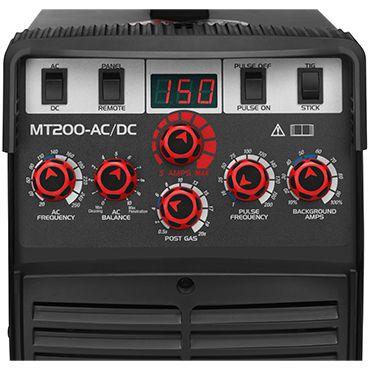

    •  Easy-to-use interface allows quick setting adjustments

    •  Compact, portable design for use in multiple applications

    •  Features square wave technology

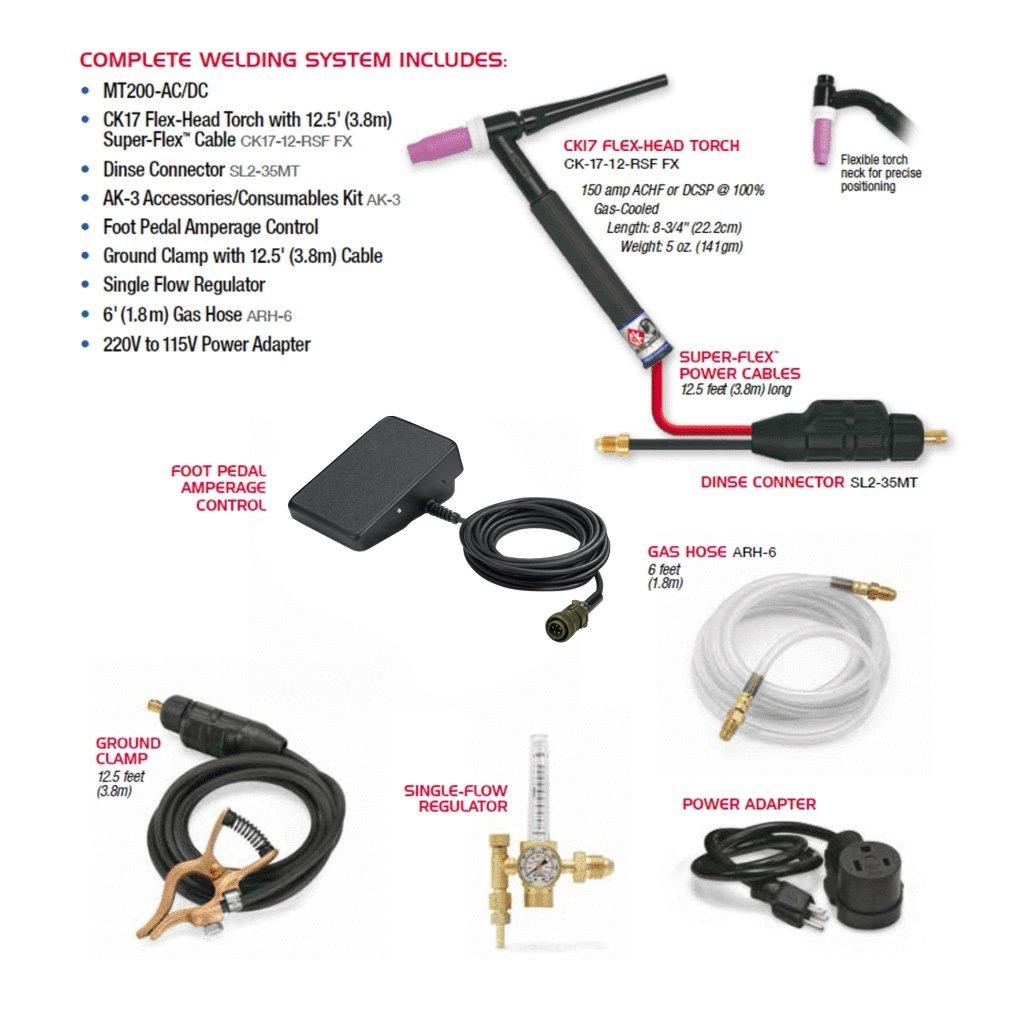

    Complete Welding System Includes:

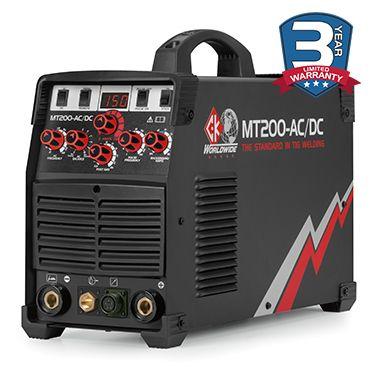

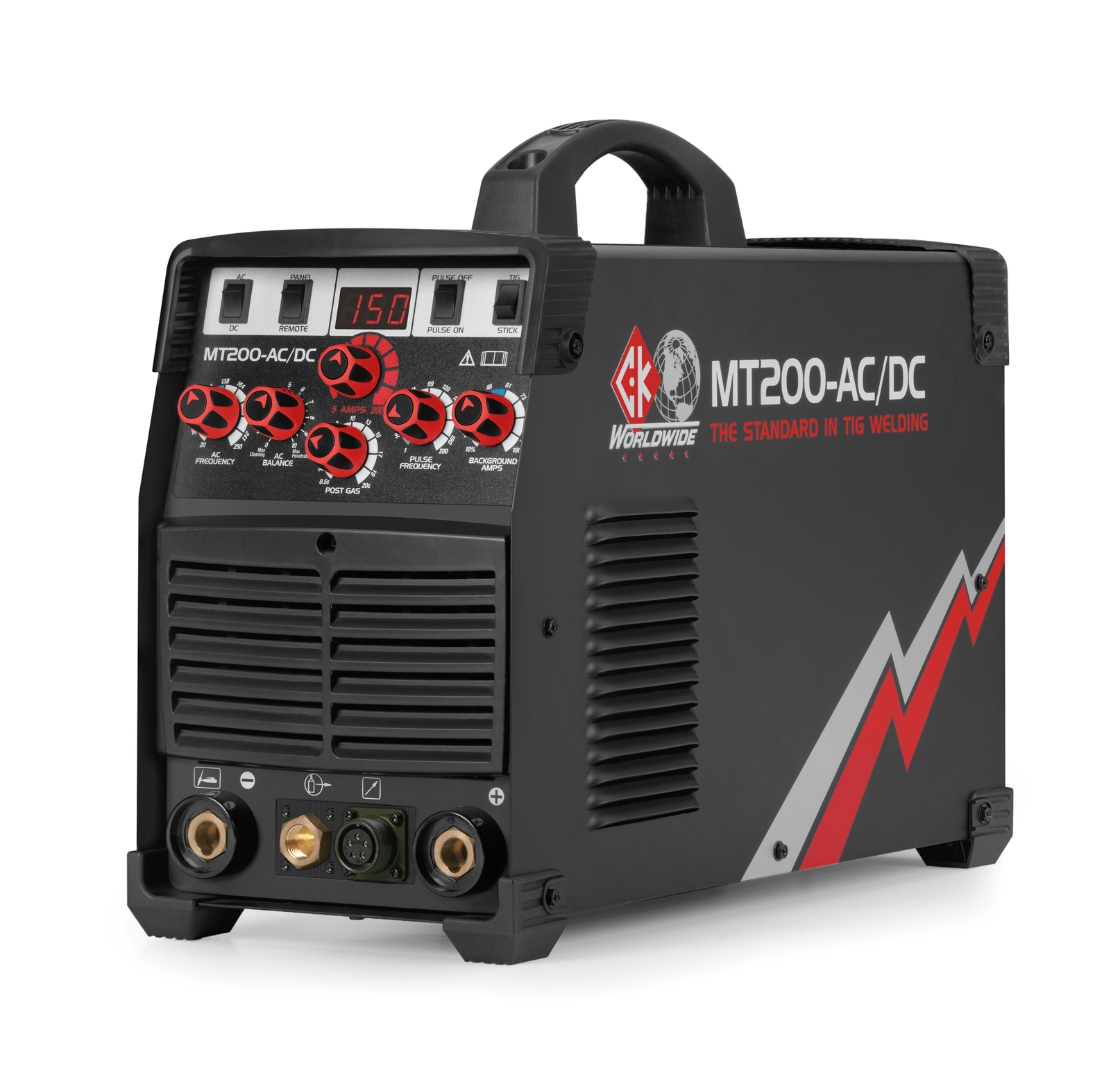

    • MT200-AC/DC TIG Welding Machine

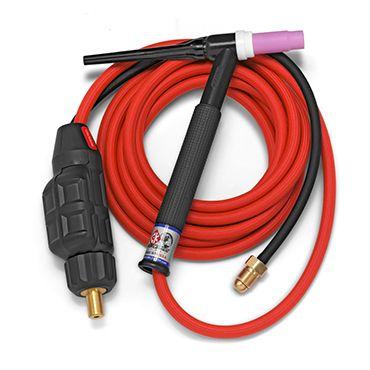

    • CK17 Flex-head Torch with 12.5’ (3.8m) Super-Flex™ Cables (CK17-12-RSF FX)

    • Dinse Connector (SL2-35)

    • AK-3 Accessory/Consumable Kit (AK-3)

    • Foot Pedal Amperage Control

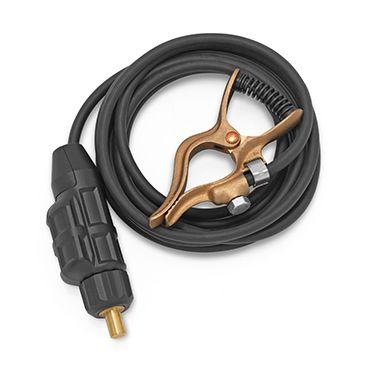

    • Ground Clamp with 12.5’ (3.8m) Cable

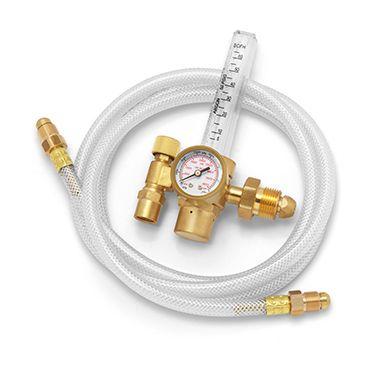

    • Single-Flow Regulator

    • 6’ (1.8m) Argon Hose

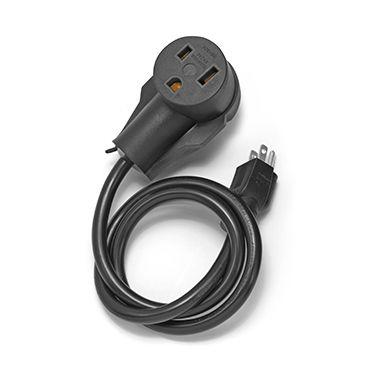

    • 220V to 115V Power Adapter


      Input Voltage 120VAC +/-15%, 50/60Hz 220VAC +/-15%, 50/60Hz
      Input Current (I max) 115V:  21 Amps 220V:  34 Amps
      Output Current Range GTAW 115V:  5-140 Amps 220V:  5-200 Amps
      Output Current Range SMAW 115V:  10-110 Amps 220V:  10-160 Amps
      Rated Output GTAW 115V:  140A @ 15.6V
      40% duty cycle
      220V:  200A @ 18.0V
      25% duty cycle
      Rated Output SMAW 115V:  110A @24.4V
      25% duty cycle
      220V:  160A @26.4V
      30% duty cycle
      Max. Open Circuit Volts 74 volts
      Gas Pre-Flow 0.5 seconds
      Gas Post-Flow 0.5-20 seconds
      AC Frequency 20-250 Hz
      Pulse Frequency 1-200 Hz
      Pulse Width 50%
      Base Current 10-100%
      Arc Start High Frequency
      Dimensions (L, W, H) 20" (502mm) x 8.5" (217mm) x 15" (381mm)
      Weight 32 lbs. (14.5kg)
