CK Worldwide Water-Cooled TIG Welding System (MT375-AC/DC)
CK Worldwide Water-Cooled TIG Welding System (MT375-AC/DC)
Check out the Specs here: MT375-AC/DC Spec Sheet
-
Water-Cooled TIG Welding System
-

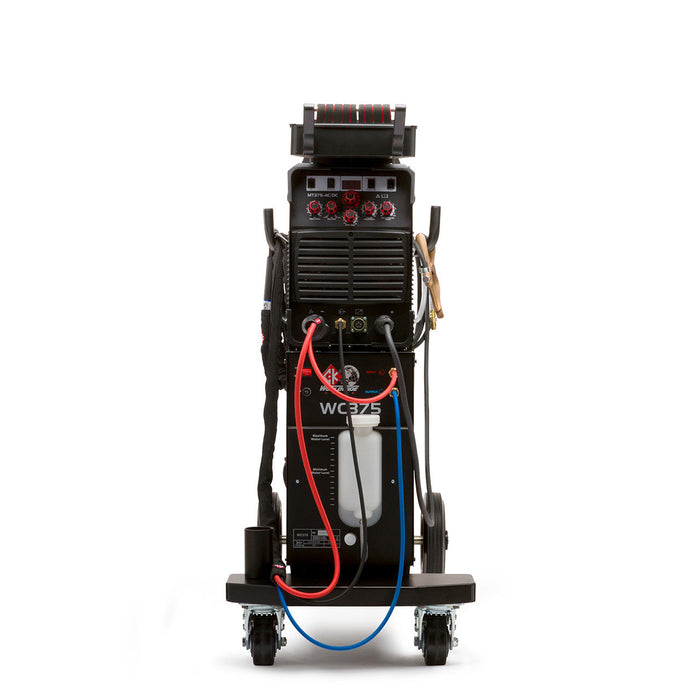

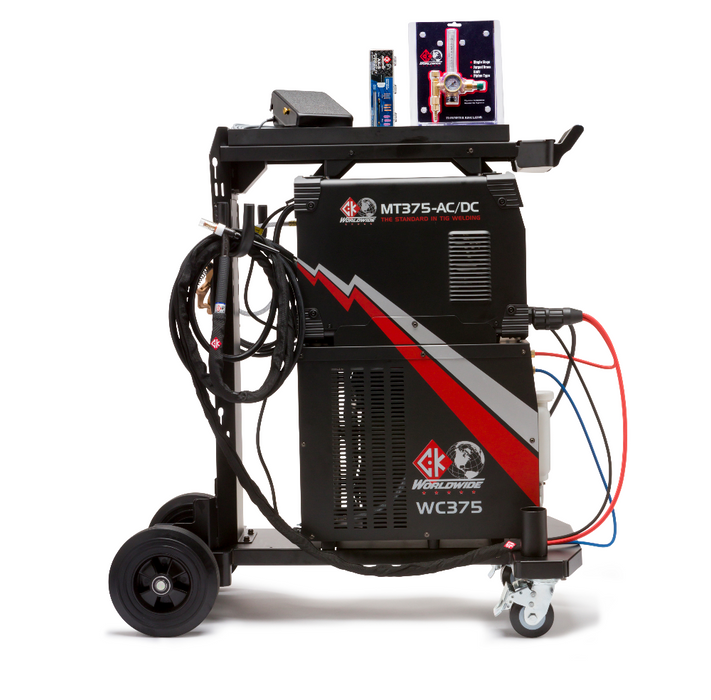

Fully equipped with a dual pump water cooler and utility cart
-
Dual Voltage (230V - 460V)
-
High Frequency Arc Start
-
Easy-to-Use Interface
-

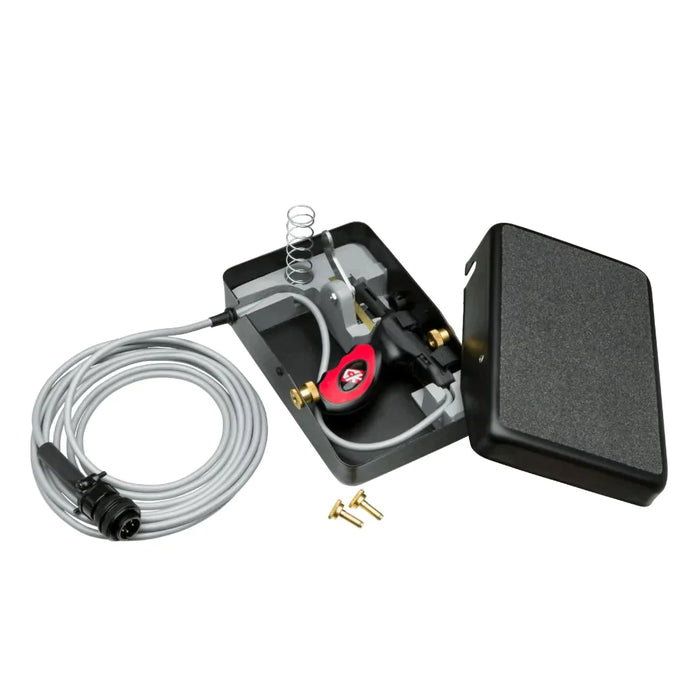

Patented Steady-Grip™ foot pedal quickly converts to fingertip amperage control

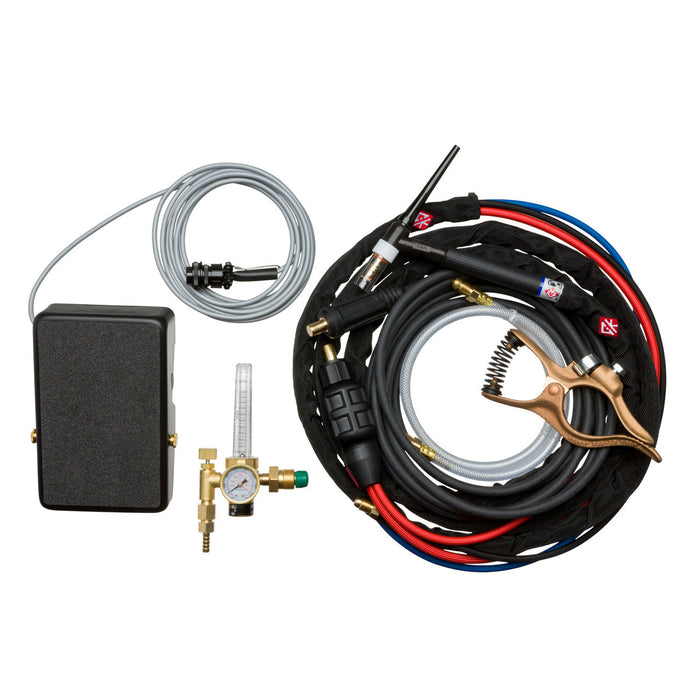

The MT375AC/DC from CK Worldwide is a dual voltage powerful 375 amp inverter with; AC balance and frequency, post gas flow settings, and pulse settings that use analog dials allowing for ease of use and range. The MT375 is fully equipped with a dual pump water cooler, utility cart, TL18 Trim-Line 350 amp flex neck torch with super flex cables, ground clamp, argon hose, accessory kit, and new patented Steady-Grip Foot Pedal. This new foot pedal design provides both options in one by incorporating the popular Steady Grip fingertip amperage control into a quick release foot pedal.
Quality Machine with a No Hassle 3 Year Warranty
The MasterTIG MT375 AC/DC welding machine is simple to operate and easy to fine tune for your welding jobs no matter what your skill level. The robust portable design allows you to easily tackle welding projects from basic fabrication, to aerospace and nuclear applications.
MT375 Specifications:
| Input Voltage | 230VAC +/-10%, 50/60Hz, single phase | 460VAC +/-10%, 50/60Hz, single phase |
|---|---|---|
| Input Current (I max)( I eff) | 230V: 44 Amps / 26 Amps | 460V: 38 Amps / 23 Amps |
| Output Current Range GTAW | 230V: 5-275 Amps DC; 5- 260 Amps AC | 460V: 5-375 Amps DC; 5- 360 Amps AC |
| Output Current Range SMAW | 230V: 10-200 Amps DC | 460V: 10-300 Amps DC |
| Rated Output GTAW |
230V: 275 Amps @ 21.0 VDC, 35% duty cycle 260 Amps @ 20.4 VAC, 35% duty cycle |
460V: 375 Amps @ 25.0 VDC, 35% duty cycle 360 Amps @ 24.2 VAC, 35% duty cycle |
| Rated Output SMAW |
230V: 200 Amps @ 28.0 VDC, 40% duty cycle |
460V: 300 Amps @ 32.0 VDC, 40% duty cycle |
| Max. Open Circuit Volts | 84 volts | |
| Gas Pre-Flow | 0.5 seconds | |
| Gas Post-Flow | 0.5-20 seconds | |
| AC Frequency | 20-200 Hz | |
| Pulse Frequency | 1-200 Hz | |
| Pulse Width | 50% | |
| Background Current | 10-100% | |
|
Arc Start |
High Frequency | |
| MT375 Dimensions | Height: 15 in. (381mm) | |
| Width: 10.5 in. (267mm) | ||
| Length: 20.5 in. (521mm) | ||
| MT375 Weight | 82 lb. (37.2kg) | |
| Full System Dimensions | Height: 45 in. (1143mm) | |
| Width: 20 in. (508mm) | ||
| Length: 42 in. (1067mm) | ||
| Full System Weight | 170 lbs. (77.1kg) | |
