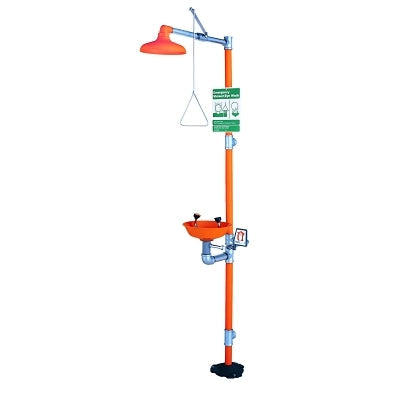

Eye Wash & Shower Station, 12 in, Safety Orange, Galvanized Steel

Eye wash is activated by flag handle, two GS-Plus spray heads deliver a flood of water for rinsing eyes. Shower Valve: 1 in IPS chrome plated brass stay-open ball valve, furnished with stainless steel actuating arm and 29 in stainless steel pull rod. Spray Head Assembly: Two GS-Plus spray heads, each has a flip top dust cover, internal flow and filter to remove impurities from the water flow. Eye Wash Valve: 1/2 in IPS chrome plated brass stay-open ball valve, remains in operation until flag handle is returned to closed position. Pipe and Fittings: Schedule 40 galvanized steel, furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.

Features:

• Eye Wash & Shower Station, 12 in, Safety Orange, Galvanized Steel

Specifications:

• Bowl Diam=12 in
• Bowl Height=36 in
• Bowl Material=ABS Plastic
• Color= Safety Orange
• Flow [Max]=20 gpm
• Height [Max]=90 in
• Height [Nom]=90 in
• Inlet Size=1-1/4 in
• Length [Nom]=32.3 in
• Material=Galvanized Steel
• Outlet Size=1-1/4 in
• Shower Head Diam=10 in
• Shower Head Height=85 in
• Shower Head Material=Plastic
• Type=Eye Wash & Shower Station
• Width [Nom]=16.8 in
• Wt.=4.4 lb

Quantity: 1
