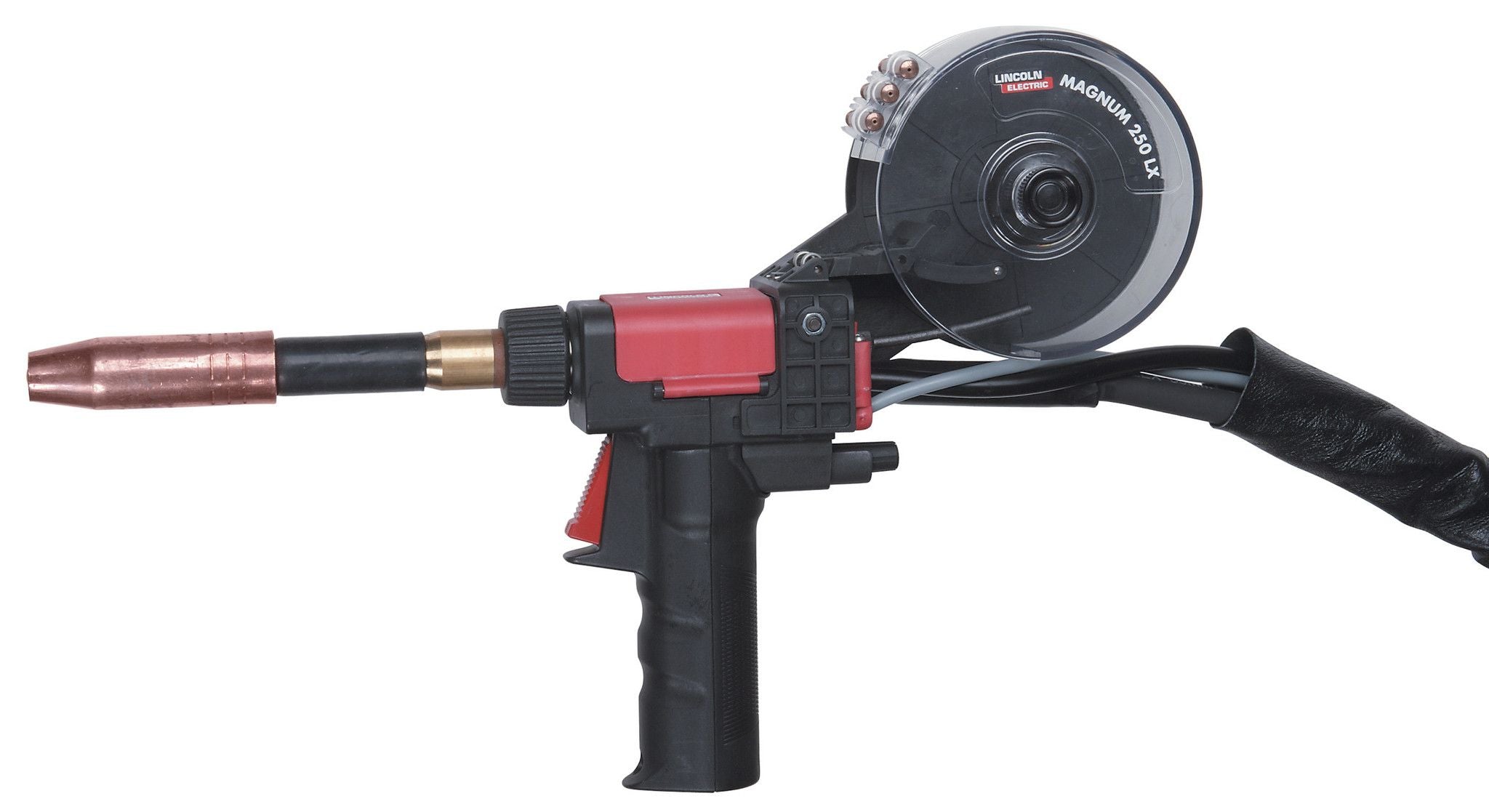

Lincoln K3570-2 Magnum® Pro 250LX Spool Gun - 25 ft

Lincoln K3570-2 Magnum® Pro 250LX Spool Gun - 25 ft





VERSATILITY WITHOUT HASSLE



The Magnum PRO 250LX spool gun partners longer-lasting Magnum Pro contact tips with a durable spool gun design, making it the most versatile accessory for the Power MIG® family.



Processes

• Aluminum MIG, MIG Steel



Wire Diameter Ranger

• .030" - 3/64" (0.8 - 1.2 mm) Aluminum
• .025" - .035" (0.6 - 0.9 mm) Steel



Features & Benefits



MAGNUM PRO EXPENDABLES

• Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time



CONNECTS EASILY AND EFFECTIVELY

• Plugs directly into the POWER MIG 256 and POWER MIG 260 without the need for an additional adapter



MULTI-TURN WIRE SPEED ADJUSTMENT

• Adjusts wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source



TOOL-LESS DRIVE ROLL TENSION

• Large thumbscrew makes fine adjustment of drive roll pressure effortless
• Setscrew allows for coarser adjustment if needed for steel



Specifications



DUTY CYCLE	60%
RATED AMPERAGE	280 @ 60% Duty Cycle (Mixed Gas) 200A @ 100% Duty Cycle (Mixed Gas)
GUN TYPE	Spool Gun
CABLE LENGTH	25 ft. (7.6 m)
WIRE DIAMETER	Aluminum: .030" - 3/64" (0.8 - 1.2 mm) Steel: .025" - .035" (0.6 - 0.9 mm)
COOLING	Air Cooled
NET WEIGHT	13.5 lb (6.12 kg)



Included



• KP2747-1A - Diffuser, Thread-on, Aluminum 550A
• KP2743-1-62RA - Gas Nozzle Assembly, Aluminum , 5/8" Recessed
• KP2745-364AT - Tapered Contact Tip, Aluminum, 3.64"
• KP2518-2 - Drive Roll, Aluminum, .030"/.035" - 3/64"
• KP2879-5 - Barrel Liner, 180°
• KP2773-1 - Insulator, 550A



Accessories



CATEGORY	PRODUCT NUMBER	PRODUCT NAME
General	K3068-1	Lincoln Power MIG 256 MIG Welder
General	K3520-1	Lincoln Power MIG 260 MIG Welder



Drive Rolls



PRODUCT NUMBER	PRODUCT NAME
KP2518-1	Lincoln .025" / .035" Steel Drive Roll
KP2518-2	Lincoln .030" - .035" / 3/64" Aluminum Drive Roll



Contact Tips



PRODUCT NUMBER	PRODUCT NAME
KP2744-025T	Lincoln Copper Plus Contact Tip, 350A, .025" Tapered
KP2744-035AT	Lincoln .035" Copper Plus Aluminum Tapered Contact Tip
KP2744-035T	Lincoln Copper Plus Contact Tip, 350A, .035" Tapered
KP2744-364AT	Lincoln 3/64" Copper Plus Aluminum Tapered Contact Tip
KP2745-035AT	Lincoln .035" Copper Plus 550A Aluminum Tapered Contact Tip
KP2745-364AT	Lincoln 3/64" 550A Aluminum Tapered Copper Plus Contact Tip
KP2745-030A	Lincoln .030" 550A Aluminum Copper Plus Contact Tip



Nozzles



PRODUCT NUMBER	PRODUCT NAME
KP2742-1-62R	Lincoln Nozzle 350A, Thread-On, 1/8" Recessed
KP2743-1-62R	Lincoln Nozzle 550A, Thread-On, 1/8 Recessed Aluminum



Diffusers



PRODUCT NUMBER	PRODUCT NAME
KP2746-1	Lincoln Magnum Pro 250L Gas Diffuser
KP2747-1A	Lincoln 550A Thread-On Aluminum Diffuser



Insulators



PRODUCT NUMBER	PRODUCT NAME
KP2773-1	Lincoln Gooseneck Insulator 550A
KP2773-2	Lincoln 250A/350A Insulator for Magnum Pro Guns



Liners



PRODUCT NUMBER	PRODUCT NAME
KP2879-1	Lincoln Barrel Liner 45° and 60° Angle (.035" - 1/16")
KP2879-2	Lincoln Barrel Liner 180° Angle (.035" - 1/16")
KP2879-4	Lincoln 45/60° 550 Amp Expendable Liner
KP2879-5	Lincoln 180° 550 Amp Expendable Liner



Gun Tubes



PRODUCT NUMBER	PRODUCT NAME
KP3682-45	Lincoln 45° Barrel w/ Nut for Magnum Pro® 250LX /Magnum® Pro 250LXGT
KP3682-60	Lincoln 60° Barrel w/ Nut for Magnum Pro® 250LX /Magnum® Pro 250LXGT
KP3682-180	Lincoln 180° Barrel w/ Nut for Magnum Pro® 250LX /Magnum® Pro 250LXGT
