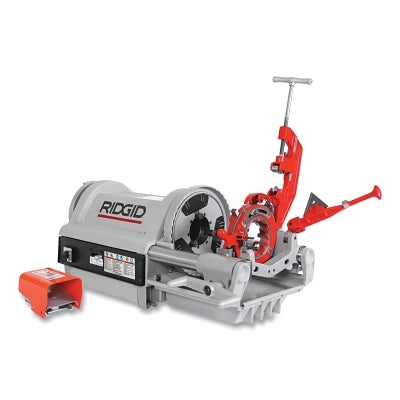

Model 1224 Threading Machine, NPT, 1/4 in to 4 in Pipe Capacity, 120 V AC, 15 A, 36/12 RPM
Model 1224 Threading Machine, NPT, 1/4 in to 4 in Pipe Capacity, 120 V AC, 15 A, 36/12 RPM
Regular price
$14,399.22
Sale price
$14,399.22
Regular price
Shipping calculated at checkout.
An induction motor helps minimize noise. Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch. Cam action, rear centering device. Two-speed gear box with a 3:1 ratio. Hammer-type chuck with replaceable rocker-action jaw inserts.
Features:
Specifications:
Quantity: 1
Features:
- Model 1224 Threading Machine, NPT, 1/4 in to 4 in Pipe Capacity, 120 V AC, 15 A, 36/12 RPM
Specifications:
- Amps [Nom]=15 A
- Frequency [Nom]=60 Hz
- Includes=(1) 1/4 in to 4 in NPT Hammer Chuck Machine; (1) No. 714 (914) 2-1/2 in to 4 in Receding Self-Opening Die Head; (1) No. 711 (911) 1/4 in to 2 in Universal Self-Opening Die Head; (1) No. 764 Cutter; (1) No. 744 Reamer; (3) Sets of Dies (1/2 in to 4 in); (1) gal Premium Oil; (1) F229 Spare Wheel; (1) No. 744 Cutter and No. 764 Cutter; (3) Hex Keys; 1-3/4 in Combination Wrench; (1) Tool Box
- Phase=Single
- Pipe Cap. [Max]=2 in at 36 RPM; 4 in at 12 RPM
- Pipe Cap. [Min]=1/4 in at 36 RPM; 2-1/2 in at 12 RPM
- Power Cap. [Max]=1-1/2 hp
- Rod Diam. - TPI=1/4 in to 2 in
- Speed [Nom]=36/12 RPM
- Threading Cap. [Max]=Geared Threader Sold Separately; 6 in (161)
- Threading Cap. [Min]=Geared Threader Sold Separately; 4 in (161)
- Type=Model 1224 Machine 120 V AC NPT
- Voltage [Nom]=120 V AC
