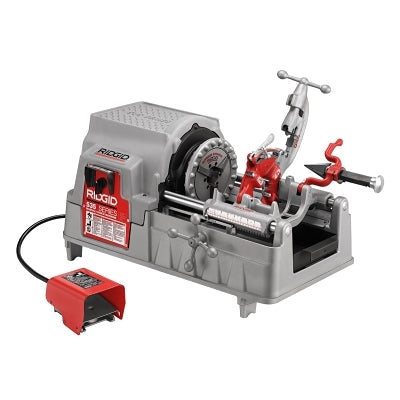

Model 535 Threading Machine, NPT, 1/8 in to 2 in Pipe Capacity, 115 V AC, 15 A, 36 RPM'

Large chip tray and oil reservoir makes the 535 ideal for longer, uninterrupted threading. Generous top cover for keeping tools and fittings handy. High clearance carriage makes threading easier. Speed Chuck, with three replaceable rocker-action jaws inserts, grips work piece instantly. Can be used with geared Models 141 and 161 threaders (sold separately).

Features:

• Model 535 Threading Machine, NPT, 1/8 in to 2 in Pipe Capacity, 115 V AC, 15 A, 36 RPM'

Specifications:

• Amps [Nom]=15 A
• Frequency [Nom]=50 Hz to 60 Hz
• Includes=(1) 1/2 in to 2 in NPT Hammer Chuck Machine 36 RPM; (1) 341 Reamer Assy with 5-Flute Cone
• RH
• 1/8 in to 2 in (42365); (1) 3/16 in Hex Key (46030); (1) 820 Cutter Assy (42390); (1) Wheel
• Cutter E1032 (44185); (1) Key
• Hex 5/32 (46015); (1) 1/2 in to 3/4 in Universal Alloy Die Set (47745); (1) 1 in to 2 in Universal Alloy Die Set (47750); (1) Nu-Clear Thread Cutting Oil (70835); (1) 811A 1/8 in to 2 in NPT Die Head
• Self-Opening
• RH (97065)
• Phase=Single
• Pipe Cap. [Max]=2 in
• Pipe Cap. [Min]=1/8 in
• Power Cap. [Max]=1/2 hp
• Rod Diam. - TPI=1/4 in to 2 in
• Speed [Nom]=36 RPM
• Threading Cap. [Max]=Geared Threaders Sold Separately; 4 in (141); 6 in (161)
• Threading Cap. [Min]=Geared Threaders Sold Separately; 2-1/2 in (141); 4 in (161)
• Type=10-Pc Model 535 Threading Machine with Accessories
• Voltage [Nom]=115 V AC

Quantity: 1
