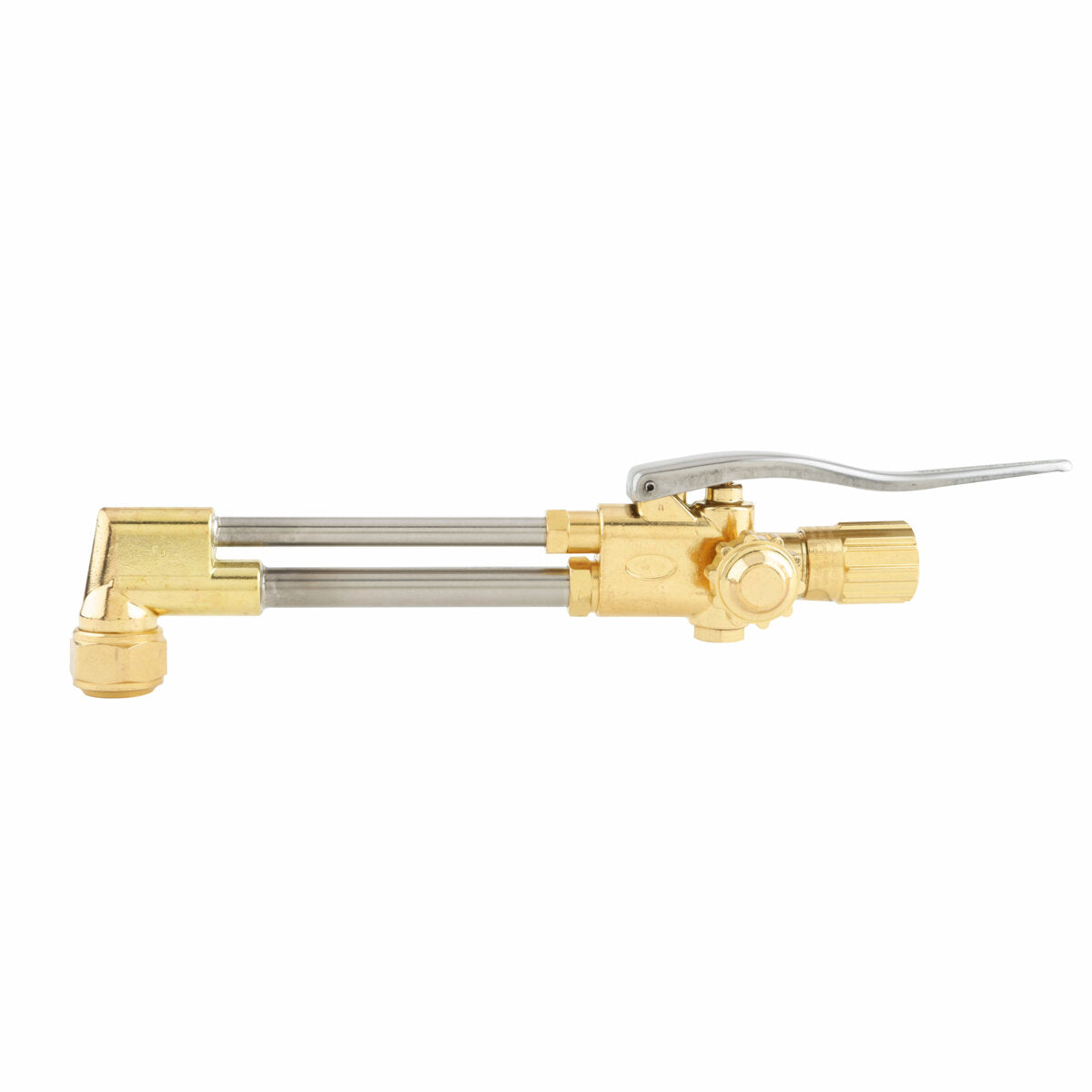

Model VH24 All Fuel Gases V-Series® Cutting Attachment

Model VH 24 is a heavy duty cutting attachment. The mixer design resists damage due to flashback. It is equipped with a durable stainless steel lever, has a coupling nut with locking ring to protect cutting attachment seat, and the cutting oxygen valve has an ease-on feature for more precise control. Cuts up to 8 in. (203.2mm) plate

• Model V-24 V-Series® heavy duty cutting attachment for use with all fuel gases
• Model VH 24 is a heavy duty cutting attachment. The mixer design resists damage due to flashback. It is equipped with a durable stainless steel lever, has a coupling nut with locking ring to protect cutting attachment seat, and the cutting oxygen valve has an ease-on feature for more precise control. Cuts up to 8 in. (203.2mm) plate
• Heavy duty cutting attachment for use with all fuel gases
• (E) equal or positive pressure mixing system resists damage due to flashback
• Stainless steel tube design with threaded connections for easy repair
• Protected torch union nut protects seats and O-rings from abuse and damage
• Fold-forward durable stainless steel cutting lever for convenience and ease of operation
• Ease-on cutting valve for safety, smoother starts and more precise cutting control
• Solid forged brass head resists abuse and distortion for reliable performance and longer service life
• Cuts up to 8 in. (203.2mm) plate
• Cutting attachment is 12-1/8 in. (307.9mm) in length
• Head angle is 90 degrees
• Model VH24 All Fuel Gases V-Series® Cutting Attachment
• 1 Year
• VH24 CA
• Harris
• Oxygen;Acetylene;Hydrogen;AllFuelGases

• Compatible Cutting Tip Model Number - Acetylene-H2 (Size): V1-101;V1-101-AC
• Compatible Cutting Tip Model Number - Alternate Fuel (Size): 1-GPN;1-GPP
• Compatible Handle Model Number: VH31
• Construction: Brass and stainless steel
• Cutting Capacity: Up to 8 in. (203.2mm) plate
• Duty: Heavy
• Gas / Gas Service: Acetylene;Hydrogen;Natural Gas;Methane;Propane;Propylene
• Head Angle: 90°
• Mixer Type: E-Equal or positive pressure
• Torch Length: 12-1/8 in. (307.9mm)
• Typical Application: Heavy fabrication;Construction;Shipbuilding;Pipeline connection

What's Included: Model VH24 All Fuel Gases V-Series® Cutting Attachment

Model Name: VH24 CA
