ArcOne AP-1 AirPlus® Powered Air System
ArcOne AP-1 AirPlus® Powered Air System
ArcOne AP-1 AirPlus® Powered Air System
THE AIRPLUS® POWERED AIR SYSTEM IS THE THIRD GENERATION DEVELOPMENT FROM THE ARCONE® PAPR SYSTEM
AircOne's AirPlus® air purifying system is a motorized, battery operated system that blows a constant supply of fresh, filtered air over the face. It creates a positive pressure inside the respirator head top, keeping out harmful welding fumes and particulates.
Head tops and other accessories are sold separately - you can view all of the head tops they offers below.
Features
- 8-Setting airflow control, minimum flow at 170 LPM
- Constant airflow correction technology
- Visual and audible alarms for low battery voltage
- 14-hour Lithium-Ion battery (at minimum fan speed) charges in 6 hours
- Audible and vibration alarms for low flow (clogged filter) and missing filter
- Ergonomic comfortable belt
- Flexible breathing tube with quick disconnect with fire retardant air-hose cover
- NOISH 42 CFR Part 84 Approval Number: TC-21C-0947

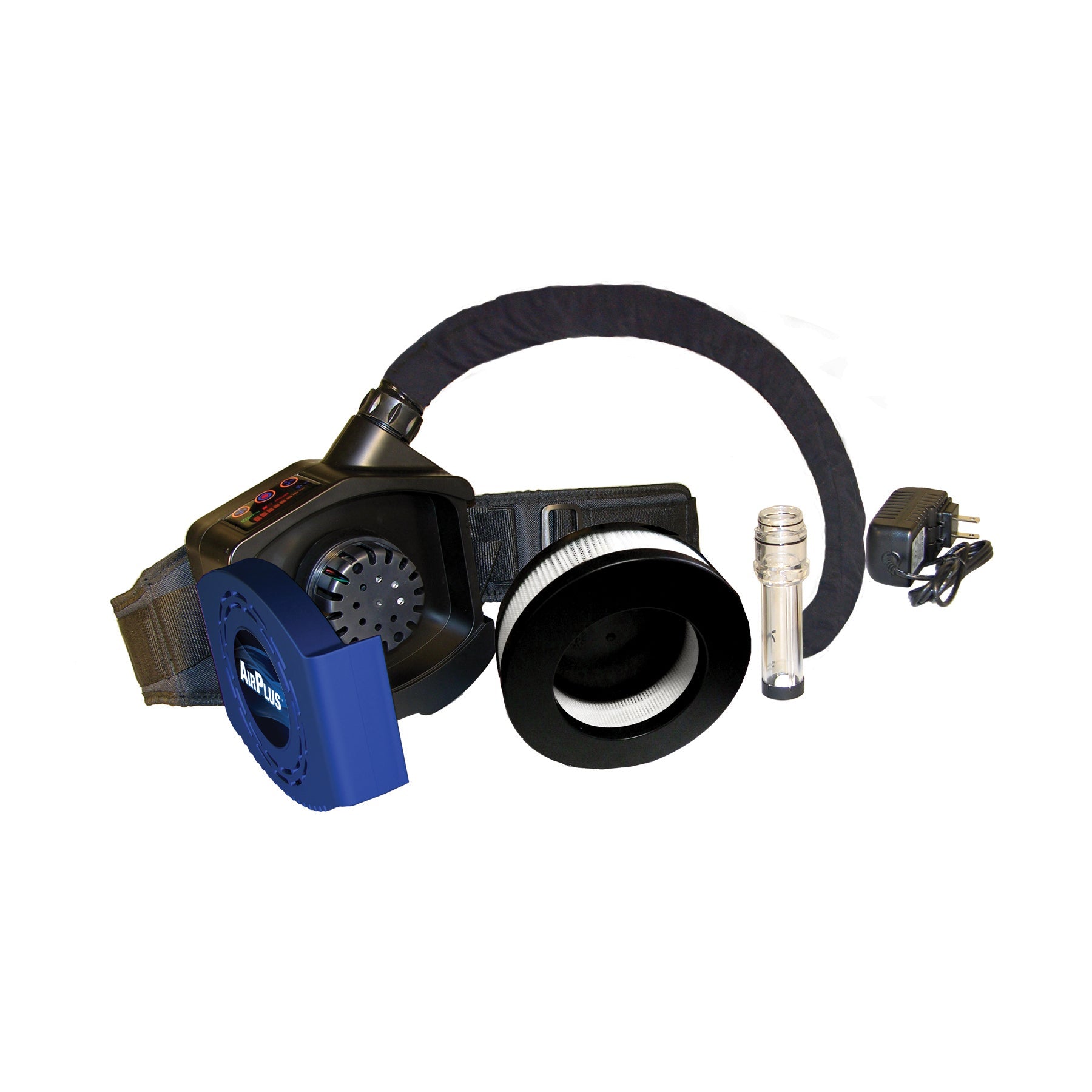

Includes
- Battery
- Battery Charger
- Waist Belt
- Flame Retardant Tube & Hose Cover
- Air Flow Indicator
- Powered Respirator with HEPA Filter
- Duffle Bag
Specifications
BLOWER UNIT
| TYPE | Flow Control |
| MOTOR SPEED | 6,000 - 10,000 RPM |
| MOTOR | Brush-less |
| AIR SUPPLY | Minimum of 6 Cubic Feet (170 liters/min) |
| CASE | Impact-Proof ABS |
| FILTER CARTRIDGE | Single plug-in type |
| HOSE LENGTH | 34.5" / 876 mm |
| HOSE DIAMTER (INTERNAL) | 1.1" / 28 mm |
| HOSE CONNECTION | Quick Disconnect |
| WEIGHT | 1.4 lbs / 0.63 kg |
| DIMENSIONS | 7.1" x 3.7" x 7.4" / 180 x 94 x 187 mm |
| COLOR | Black and Blue |
BATTERY
| TYPE | Lithium-On |
| VOLTAGE | 7.4 V |
| OPERATING TIME | 14 hours at minimum fan speed |
| CHARGING CYCLES | 350 (under ideal conditions) |
| HOUSING | Impact-Proof ABS |
| WEIGHT | 0.78 lbs / 0.35 kg |
| DIMENSIONS | 5.9" x 2.9" x 1.65" / 150 x 74 x 42 mm |
| COLOR | Black |
CHARGER
| TYPE | DC Rectifier |
| PRIMARY VOLTAGE | 120 V / 60 Hz |
| SECONDARY VOLTAGE | 7.4 V |
| OUTPUT CURRENT | DC 8.4 V, 1500 mA |
| WEIGHT | 0.24 lb / 0.110 kg |
| DIMENSIONS | 3.3" x 2.6" x 1.7" / 84 x 66 x 43 mm |
| COLOR | Black |
| APPROVALS | CE and FCC |
