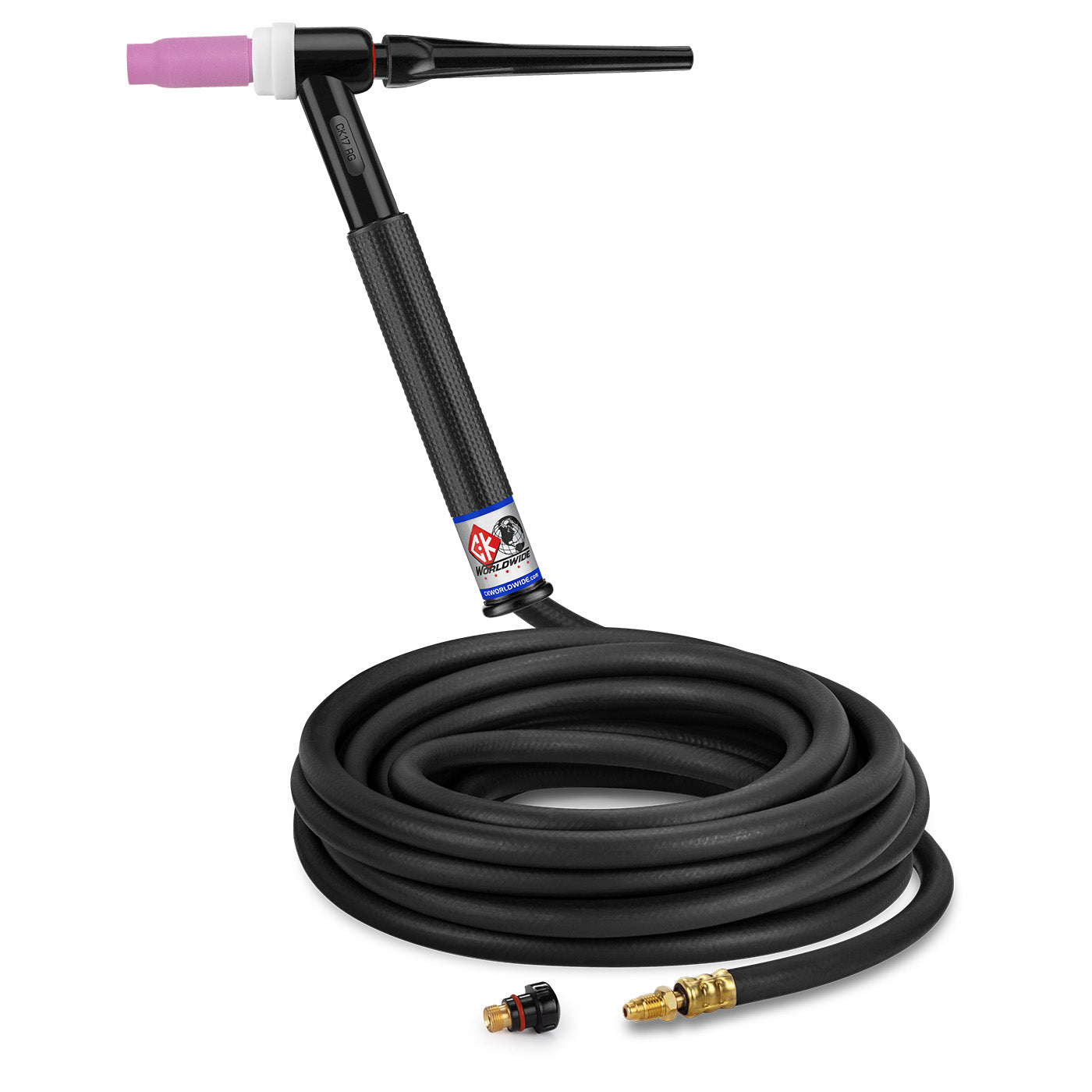

CK Worldwide CK17-25-R RG 150 Amp Gas-Cooled TIG Torch, Rigid Head, 25' Cable

The CK17-25-R RG delivers professional 150-amp TIG welding performance with a rigid head design that ensures maximum arc stability for precision applications. This gas-cooled torch operates at 100% duty cycle on both AC high frequency and DC straight polarity, making it ideal for continuous heavy-duty welding in shop and field environments.

• 150 amp rating at 100% duty cycle for continuous operation
• Rigid head construction provides superior stability and control
• Gas-cooled design for efficient heat dissipation during extended use
• 25-foot standard cables offer excellent reach and flexibility
• No valve configuration for streamlined operation
• Overall length: 8-1/8" (20.6cm)
• Weight: 5 oz (141gm)
• Compatible with AC high frequency and DC straight polarity

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

The CK17-25-R RG is part of the 3 Series torch family and uses standard 3/8" x 32 thread pattern consumables. This torch excels in applications requiring precise tungsten positioning and consistent arc characteristics, from structural welding to precision fabrication work.
