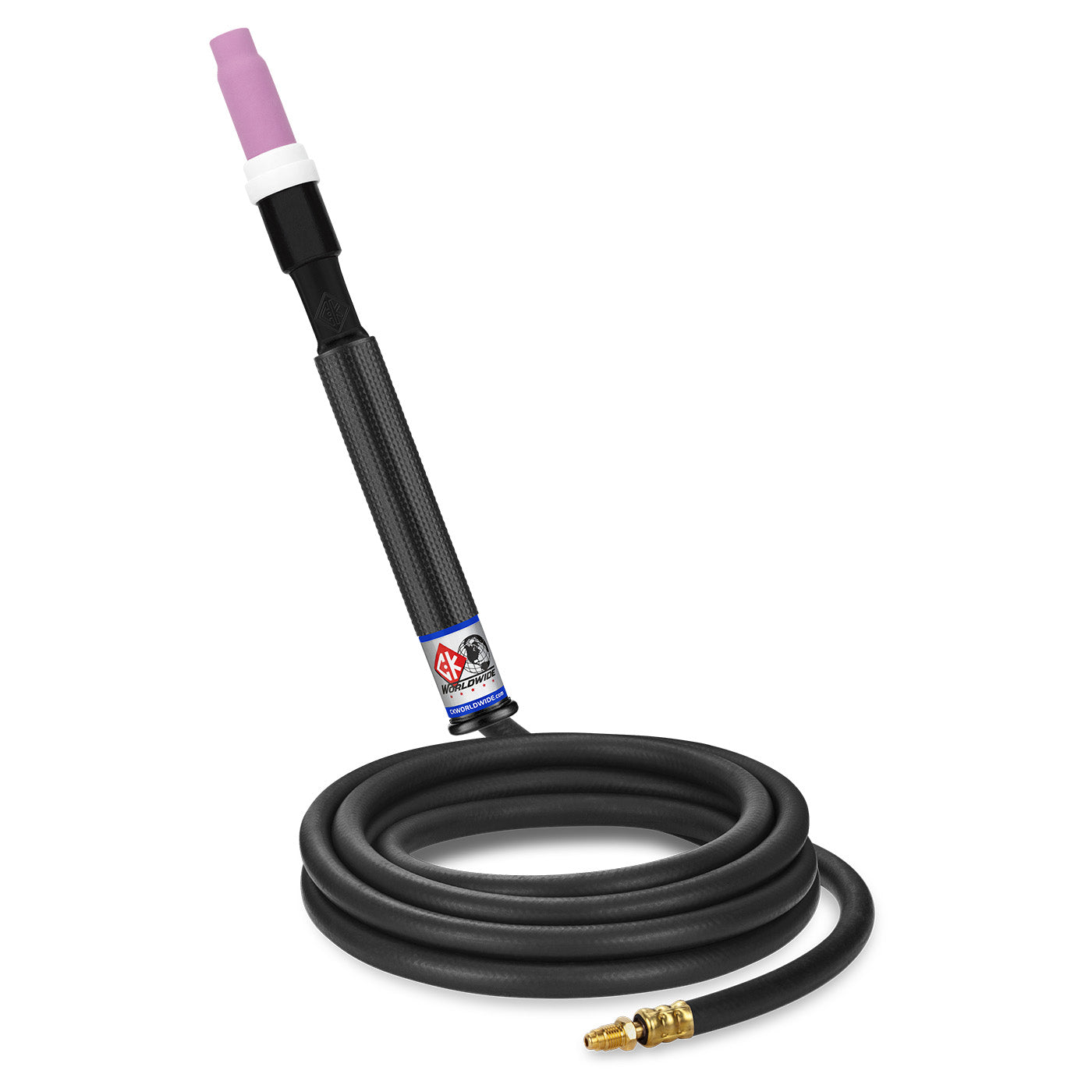

CK Worldwide CK17P-12-R RG 150 Amp Pencil TIG Torch Gas-Cooled 12.5

The CK17P-12-R RG delivers precision TIG welding performance in a compact pencil-style design rated for 150 amps at 100% duty cycle. This gas-cooled torch features a rigid head configuration that provides exceptional control and stability for detailed welding applications requiring maximum maneuverability.

• 150 amp capacity — AC high frequency or DC straight polarity at 100% duty cycle
• Pencil-style design — Compact 8-1/2" length, lightweight 3 oz construction
• Rigid head configuration — Superior stability for precise weld control
• Gas-cooled operation — Efficient heat dissipation without water cooling system
• 12.5 ft. cable length — Standard one-piece cable configuration
• 3 Series compatibility — Uses standard 3 Series consumables and accessories

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300S — Short Backcap

The CK17P pencil torch design offers welders enhanced visibility and access in confined spaces while maintaining the full performance of CK's 3 Series torch platform. Compatible with all 3 Series consumables and accessories for maximum versatility in professional welding applications.
