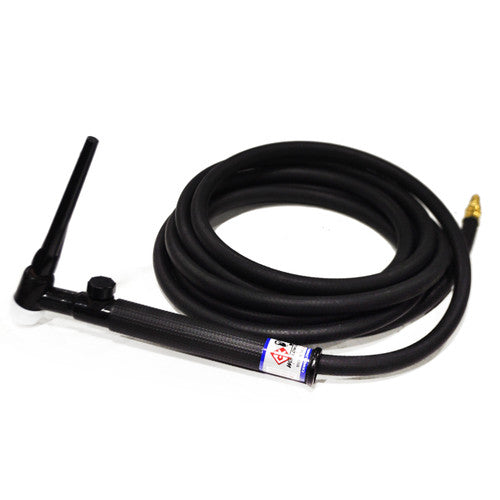

CK Worldwide CK17V-12-R RG-T 150A TIG Torch - Rigid Head with Valve, Gas-Cooled, 12.5ft Thread-On

The CK Worldwide CK17V-12-R RG-T delivers professional-grade TIG welding performance with integrated valve control for precise gas flow adjustment during operation. This 150-amp gas-cooled torch features a rigid head design and thread-on consumable compatibility for maximum versatility in demanding fabrication environments.

• 150 amp ACHF or DCSP rating at 100% duty cycle
• Rigid head design provides maximum stability and control
• Integrated valve on handle for instant gas flow adjustment
• Gas-cooled design for effective heat dissipation
• 12.5-foot cable assembly with standard one-piece construction
• Thread-on consumable compatibility for versatile setup options
• 8-1/8" overall length, 5 oz weight for comfortable handling
• 3/8" x 32 thread pattern for handle valve assembly

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

This torch is part of the 3 Series family and accepts standard 3 Series consumables for consistent performance across CK17, CK18, and CK26 torch models. The thread-on design provides secure consumable retention while allowing for quick changeovers between different cup sizes and tungsten configurations.
