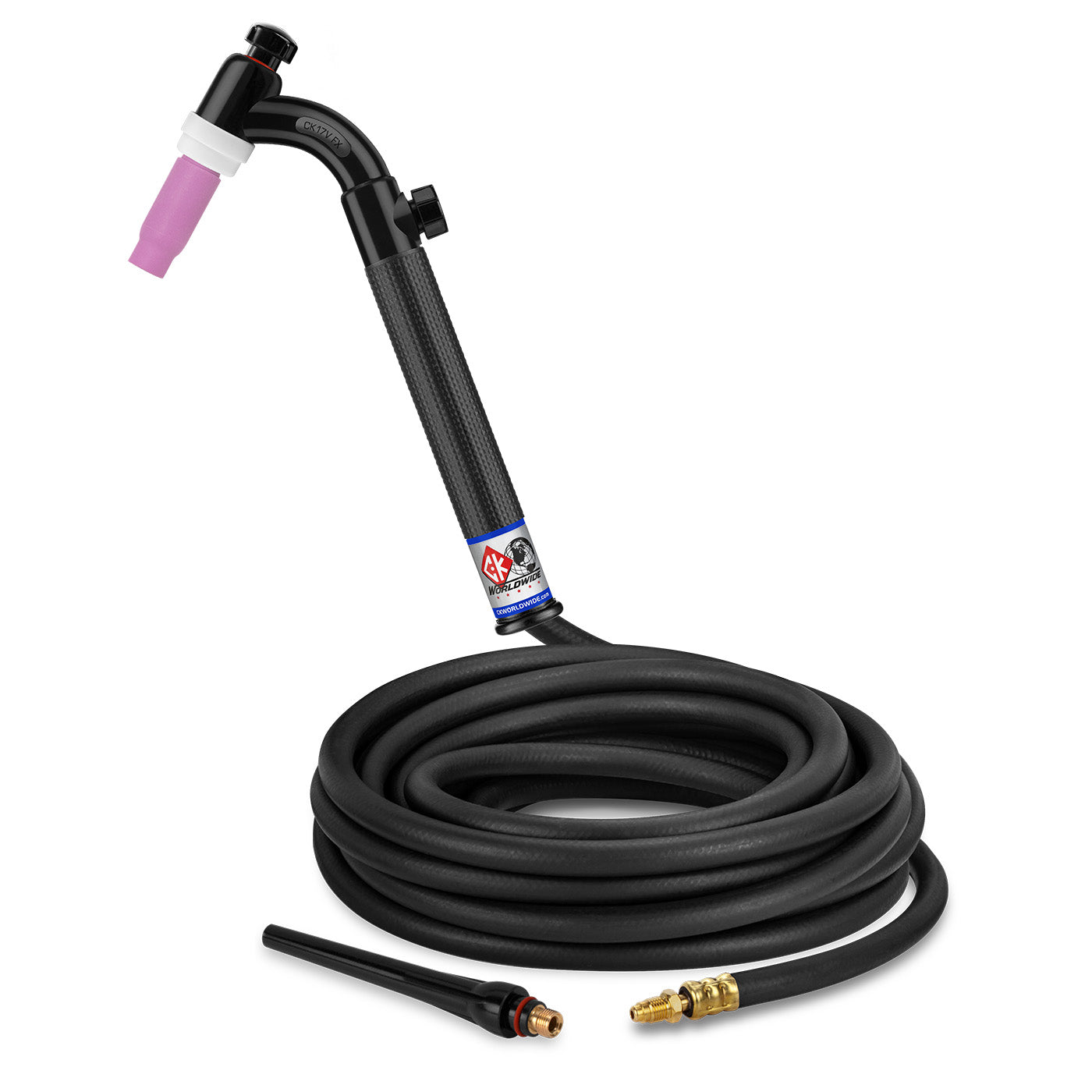

CK Worldwide CK17V-25-R FX - 150 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25 ft

The CK17V-25-R FX delivers precision TIG welding with the flexibility professionals demand. This 150 amp gas-cooled torch features CK Worldwide's signature flex head for 40-degree articulation in any direction, plus an integrated valve for direct gas flow control at the handle.

Engineered for demanding fabrication work, this torch combines CK's proven reliability with enhanced maneuverability for accessing tight joints and complex weld positions. The flex head design reduces operator fatigue while maintaining consistent arc control, making it ideal for structural steel, stainless steel, and aluminum welding applications.

• 150 amp capacity at 100% duty cycle on ACHF or DCSP
• Flex head design provides 40° of articulation in any direction
• Built-in valve enables precise gas flow control without reaching back to the machine
• Gas-cooled operation maximizes heat dissipation for extended welding sessions
• 25-foot cable length provides extended reach for large workpieces
• 3/8" x 32 thread pattern for secure consumable attachment
• Weight: 5 oz (141gm) for reduced operator fatigue
• Overall length: 8-3/4" (22.2cm)

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300S — Short Backcap

Compatible with 3 Series consumables and accessories. Perfect for fabrication shops requiring both precision and flexibility in their TIG welding operations, particularly where space constraints demand torch maneuverability without sacrificing amperage capacity.
