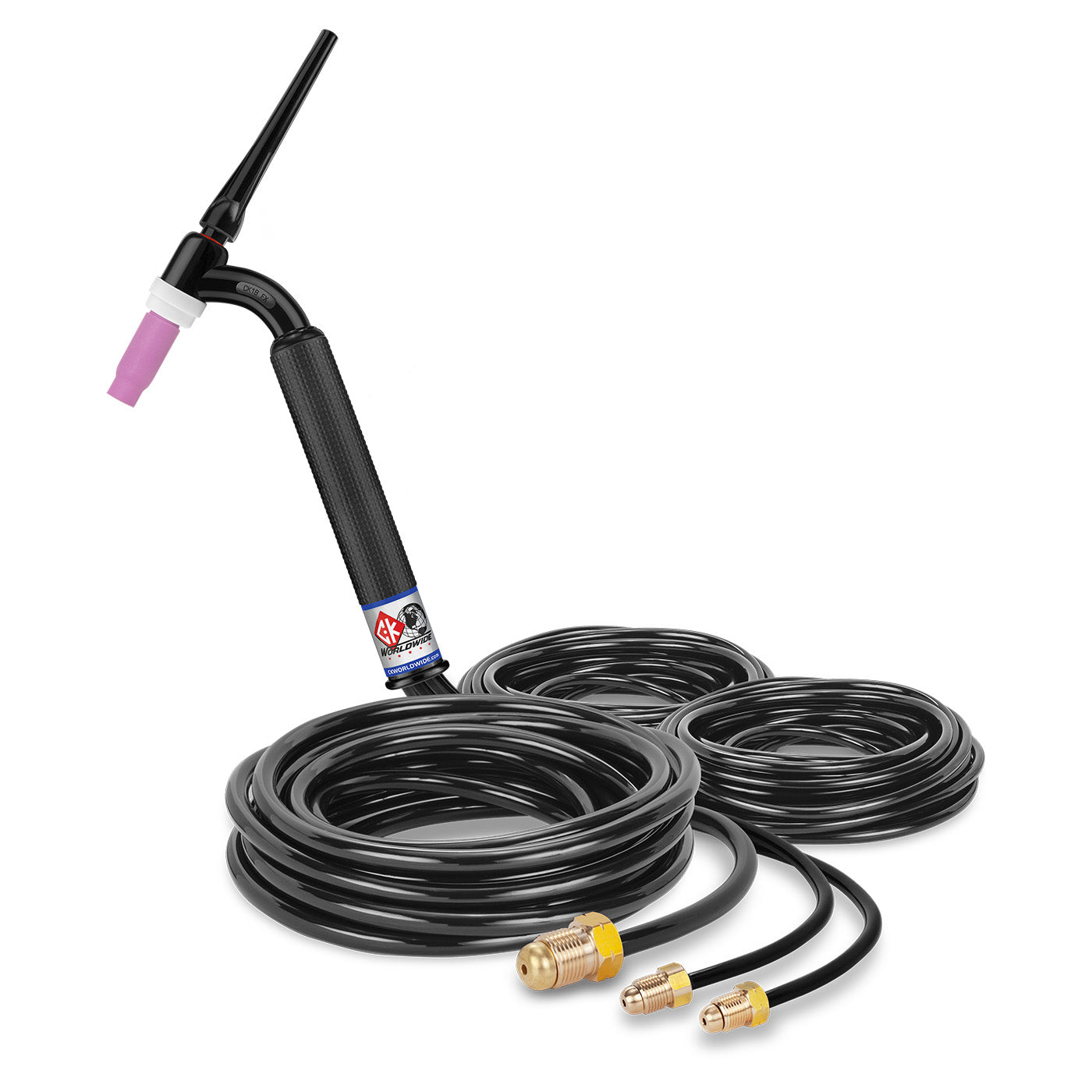

CK Worldwide CK18-25 FX 350 Amp Flex Head Water-Cooled TIG Torch 25 Ft

The CK18-25 FX delivers professional-grade TIG welding performance with 350 amp capacity at 100% duty cycle and CK Worldwide's signature flex head design that articulates 40 degrees in any direction for enhanced torch positioning and weld access in tight spaces.

This water-cooled torch incorporates Max Flow technology to maintain optimal operating temperatures during extended high-amperage welding sessions on steel, stainless steel, and aluminum. The flexible head construction allows precise torch angle adjustment while maintaining full amperage capability, making it ideal for complex fabrication work and production environments.

• 350 amp ACHF or DCSP at 100% duty cycle for continuous heavy-duty operation
• Flex head design provides 40-degree articulation in all directions
• Water-cooled system with Max Flow technology for superior heat management
• 25-foot cable length for extended reach
• 3-piece construction for easy maintenance and part replacement
• 9-1/2" torch length, 6.5 oz weight for balanced handling

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4" 6.4mm) Alumina Cup
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 300L — Long Backcap

The CK18-25 FX uses 3 Series head accessories and is compatible with standard 3/8" x 32 thread pattern consumables. This torch model is also known as the CK300 series and delivers the reliability demanded by professional welders and fabrication shops working with demanding production schedules.
