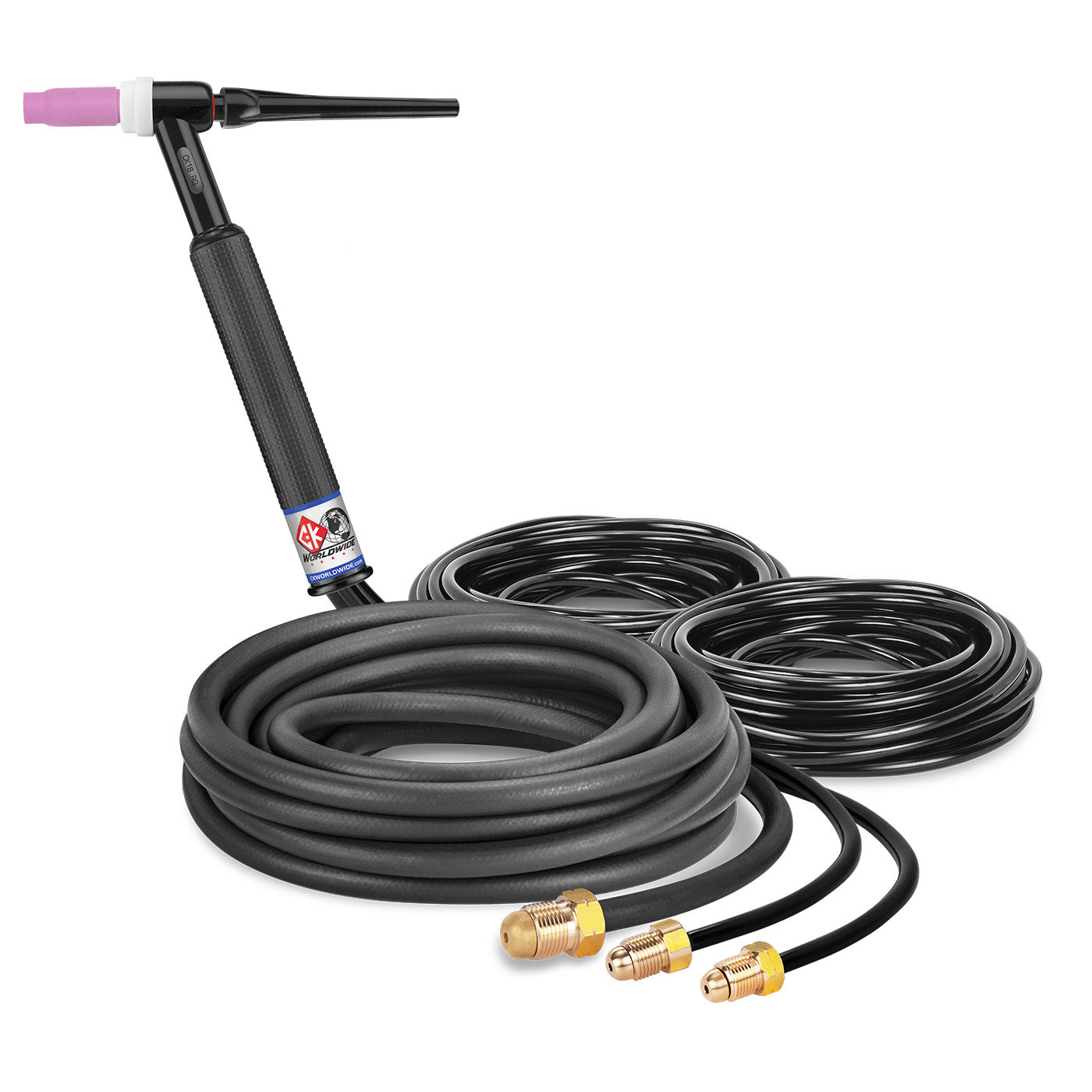

CK Worldwide CK18-25-R Heavy Duty TIG Torch - 400 Amp Water-Cooled, 25 Foot

The CK18-25-R delivers heavy-duty performance with 400 amp capacity at 100% duty cycle for continuous high-amperage TIG welding applications. This water-cooled rigid head torch provides superior arc stability and precise control for critical fabrication work requiring extended welding periods.

Built with CK Worldwide's Max Flow water cooling technology, the CK18-25-R maintains consistent performance during demanding production schedules. The rigid head style ensures stable arc positioning for precision welds, while the 25-foot cable length provides generous reach for large workpieces and fabrication projects.

• 400 amp rating ACHF or DCSP at 100% duty cycle
• Water-cooled design with Max Flow technology for extended operation
• Rigid head style ensures stable arc positioning and precise control
• 25-foot cable length provides generous reach for large fabrication work
• 3-piece cable construction for durability and flexibility
• 3 Series head accessories compatible for versatile consumable options
• Uses same torch body as CK18 and same power cable as CK510

Compatible Consumables

• 3A4 — #4 Alumina Cup (1/4" 6.4mm)
• 3A5 — #5 Alumina Cup (5/16" 8.0mm)
• 3A6 — #6 Alumina Cup (3/8" 9.6mm)
• 3A8 — #8 Alumina Cup (1/2" 12.8mm)
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 300L — Long Back Cap

The CK18-25-R is ideal for heavy industrial applications, structural fabrication, and production environments where continuous high-amperage welding is required. Compatible with standard 3 Series consumables and accessories for easy maintenance and operation.
