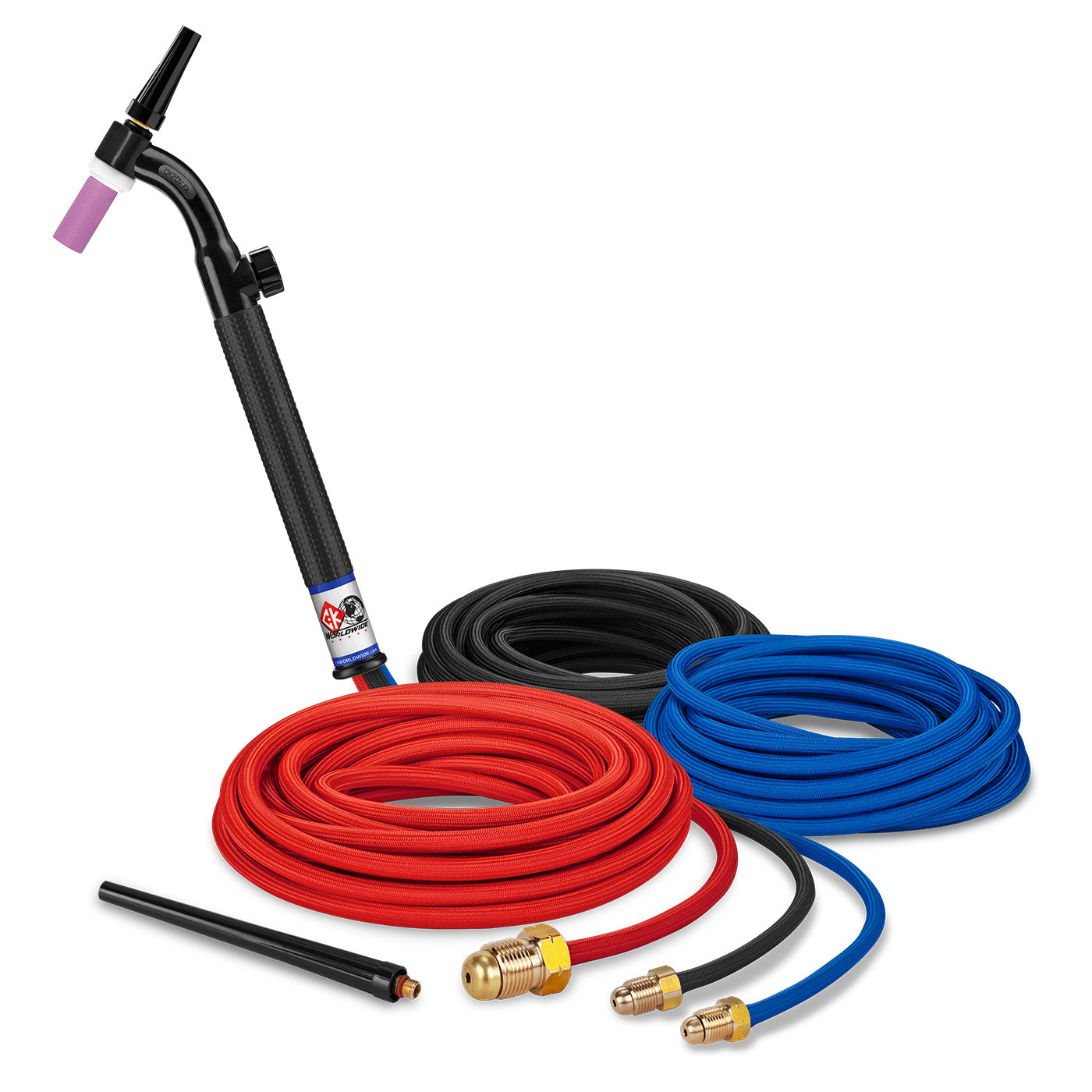

CK Worldwide CK20V-25SF FX - 250 Amp Flex Head TIG Torch with Valve, Water-Cooled, 25' SuperFlex Cable

This water-cooled flex head TIG torch delivers 250 amp capacity at 100% duty cycle with CK's signature 40-degree articulating head for precise positioning in tight spaces. The integrated valve provides instant gas flow control at your fingertips, while Max Flow cooling technology and 25' SuperFlex cables maximize operator comfort and torch longevity.

The CK20V-25SF FX combines professional-grade construction with the flexibility demanded by precision welding applications. Its articulating head design allows full 360-degree rotation with 40 degrees of flex in any direction, enabling access to complex joint configurations that would challenge rigid torch designs.

• 250 amp ACHF or DCSP @ 100% duty cycle — continuous high-amperage welding capability
• Flex head design — 40 degrees of articulation in any direction
• Water-cooled with Max Flow technology — superior heat management for extended operation
• Integrated gas valve — fingertip control for instant gas flow adjustment
• 25' SuperFlex cable assembly — enhanced flexibility and durability
• 7-1/2" overall length — compact profile for confined space welding
• 3 oz torch weight — reduces operator fatigue during extended use
• 3-piece cable construction — separate power, gas, and cooling lines

Compatible Consumables

• 200L — Long Backcap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten
• T0407GC2 — .040" x 7" 2% Ceriated Tungsten

Compatible with CK 2 Series torch accessories and designed for demanding fabrication environments requiring precise control and maximum duty cycle performance. Also known as CK25 and CK200 series compatibility.
