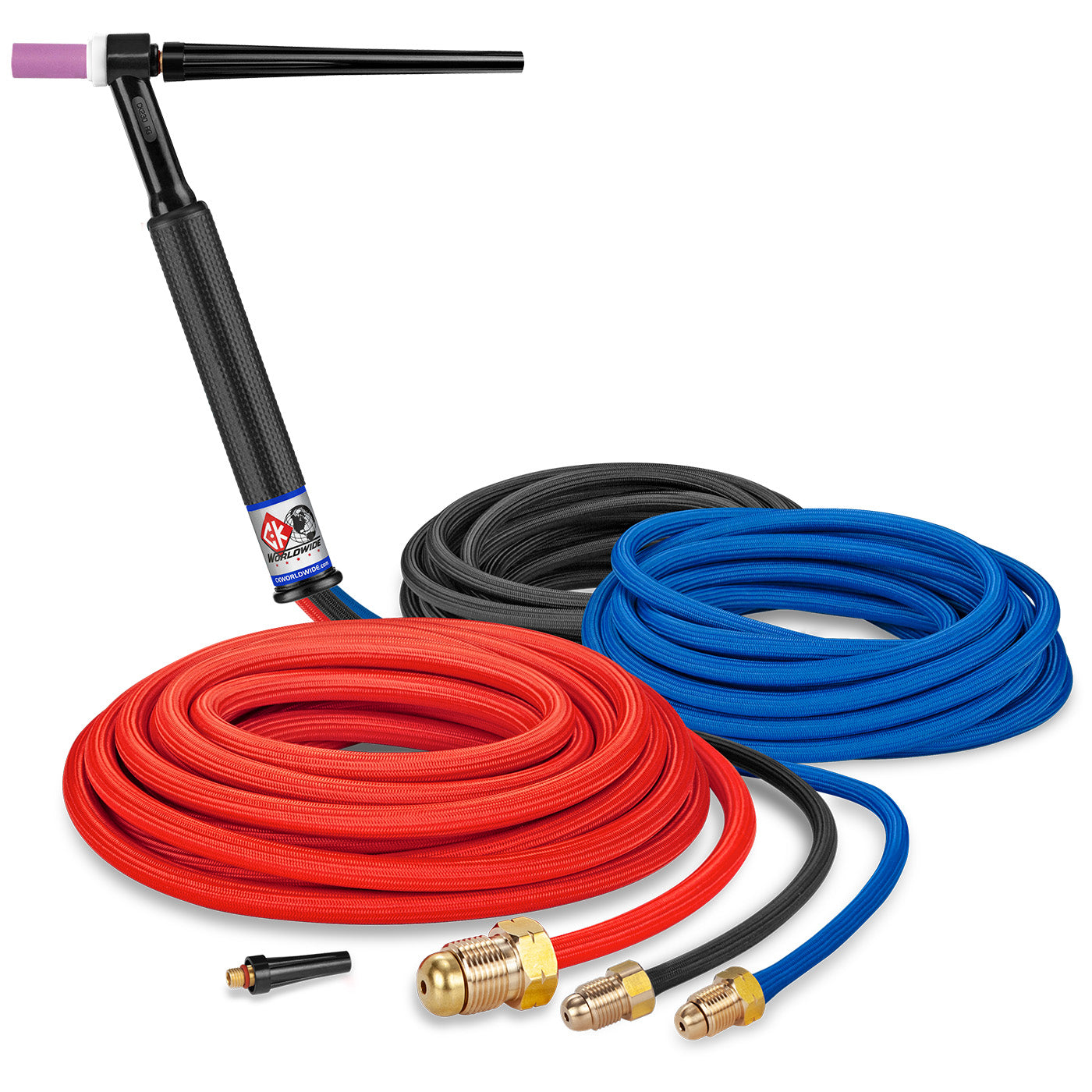

CK Worldwide CK2325 300 Amp Water-Cooled TIG Torch, Rigid Head, 25' Cable

The CK2325 delivers professional-grade TIG welding performance with 300 amp capacity at 100% duty cycle and water-cooled reliability for continuous heavy-duty operations. This rigid head torch provides exceptional arc stability and precise control for demanding fabrication and production welding applications.

Built with CK Worldwide's Max Flow cooling technology, this torch maintains optimal operating temperatures during extended welding sessions. The 25-foot standard cable configuration offers excellent reach for shop and field applications while maintaining electrical integrity and flexibility. The rigid head design ensures consistent arc positioning and superior control for precision welding tasks.

• 300 amp rating — AC high frequency or DC straight polarity at 100% duty cycle
• Water-cooled design — Max Flow cooling system for continuous operation
• 25-foot cable length — Extended reach for versatile positioning
• Rigid head configuration — Superior arc stability and control
• 2 Series compatibility — Uses standard 2 Series consumables and accessories
• Heavy-duty construction — 8-1/4" overall length, 3-3/4 oz head weight
• Professional-grade performance — Designed for demanding fabrication environments

Compatible Consumables

• 200L — Long Backcap
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2A8 — #8 (1/2" 12.8mm) Alumina Cup
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten
• T3327GC2 — 3/32" x 7" 2% Ceriated Tungsten

This torch is compatible with all CK 2 Series consumables and accessories, making it ideal for shops already using CK230 series torches. The water-cooled design makes it perfect for high-amperage aluminum welding, stainless steel fabrication, and continuous production environments where heat buildup would limit air-cooled torch performance.
