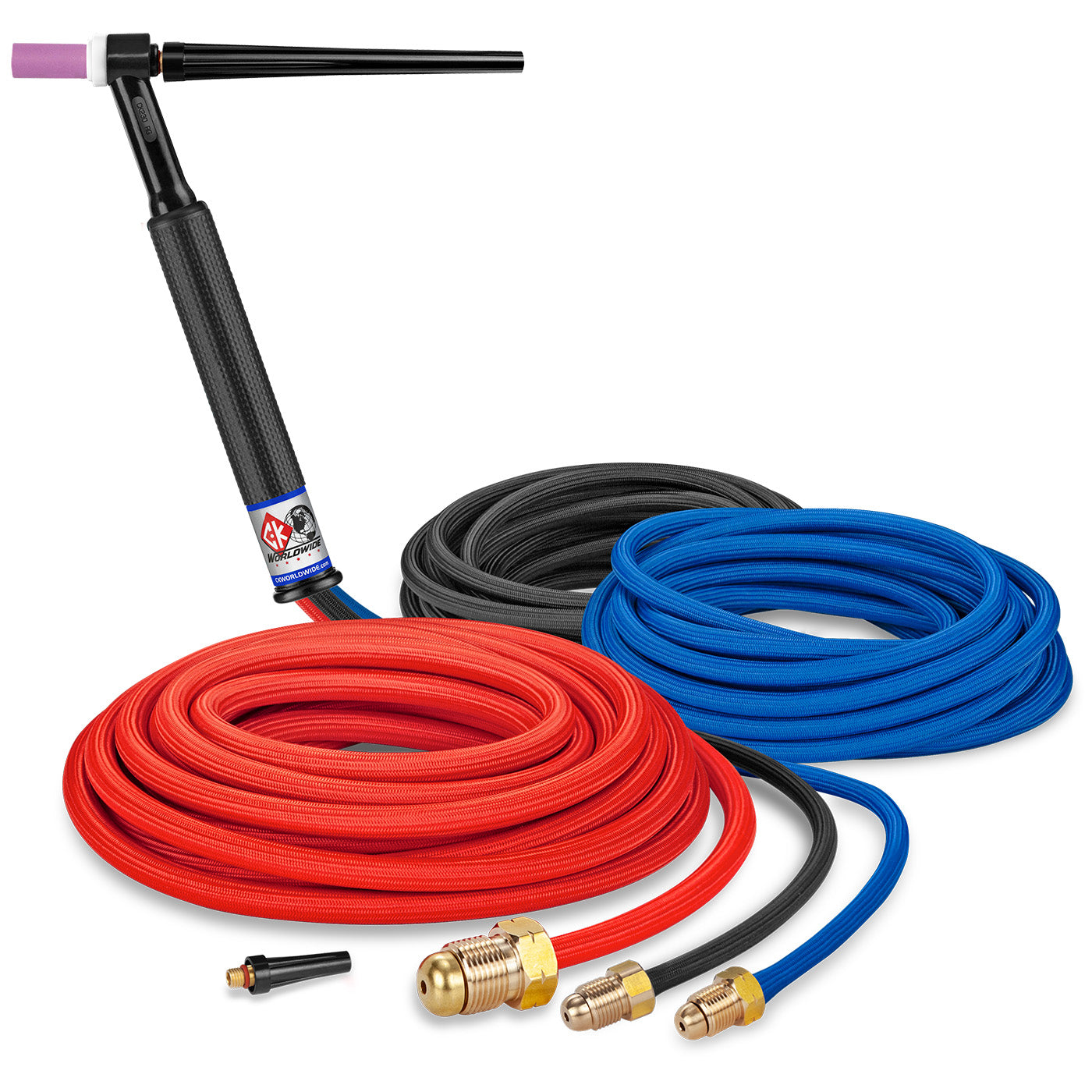

CK Worldwide CK2325SF - 300 Amp Water-Cooled TIG Torch, Rigid Head, 25' SuperFlex Cable

This water-cooled rigid head TIG torch delivers professional performance with its 300 amp capacity at 100% duty cycle and CK Worldwide's Max Flow cooling technology for extended operation in demanding applications. The rigid head design provides superior arc control and precision, while the 25-foot Superflex cables offer exceptional reach and flexibility without sacrificing durability.

Built for heavy-duty fabrication work, the CK2325SF features a streamlined design without a valve, allowing for direct machine control while maintaining the stability that the 2 Series torches are known for. The water-cooling system ensures consistent performance even during extended welding sessions at maximum amperage.

• 300 amp rating at 100% duty cycle ACHF or DCSP
• Water-cooled with Max Flow technology for extended operation
• Rigid head design for superior arc control and precision
• 25-foot Superflex cables for maximum reach and flexibility
• No valve design for direct machine control
• 8-1/4 inch overall length, 3-3/4 oz weight
• 3-piece cable construction for serviceability
• Compatible with 2 Series consumables and accessories

Compatible Consumables

• 200L — Long Back Cap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2A8 — #8 (1/2" 12.8mm) Alumina Cup

This torch is compatible with all 2 Series accessories and consumables, making it ideal for fabrication shops requiring consistent performance across multiple welding stations. The water-cooled design makes it particularly well-suited for production environments where high duty cycles are essential.
