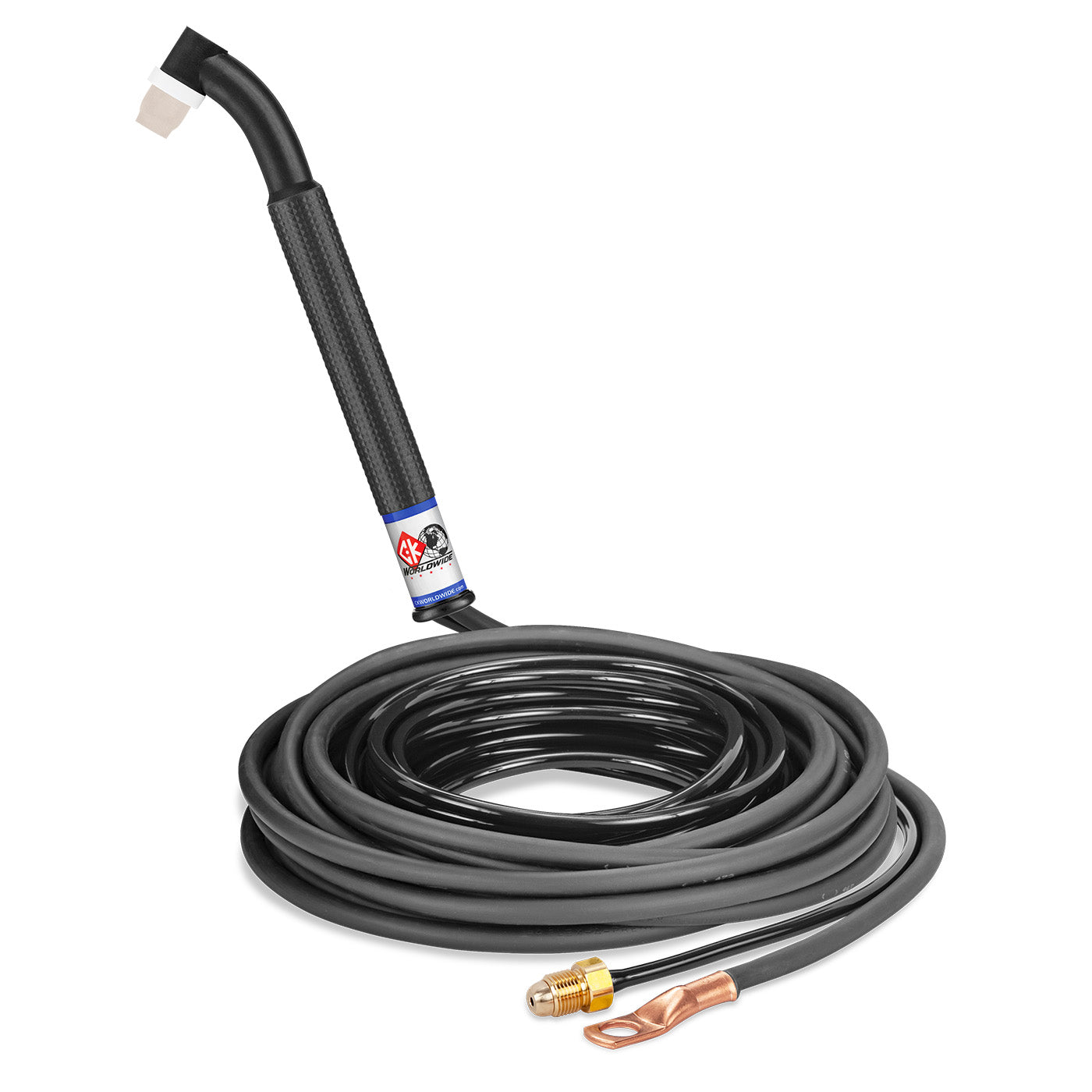

CK Worldwide CK24-25-2 FX - 90 Amp Flex Head TIG Torch, Gas-Cooled, 25' Cable

The CK24-25-2 FX delivers professional 90 amp TIG welding performance with CK Worldwide's signature flex head design that provides 40 degrees of articulation in any direction for superior access in tight spaces and complex weld joints.

This gas-cooled torch operates at 100% duty cycle on both AC high frequency and DC straight polarity, making it ideal for aluminum, steel, and stainless steel applications. The streamlined design eliminates the gas valve for reduced weight and simplified operation, while the 25-foot standard cable length provides excellent reach for larger fabrication projects.

• 90 amp capacity at 100% duty cycle ACHF/DCSP
• Flex head design with 40-degree articulation
• Gas-cooled operation — no water connections required
• 25-foot cable length for extended reach
• Single-piece cable construction
• Streamlined design without gas valve
• 8-1/4 inch overall length, 2-1/4 oz weight
• Compatible with 8 Series consumables and accessories

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2GL40 — .040" (1.0mm) Gas Lens
• 2GL116 — 1/16" (1.6mm) Gas Lens
• 80THS — Heatshield

Designed for production welding environments where maneuverability and reliability are essential. The flex head design excels in pipe welding, structural fabrication, and repair work where torch positioning is critical for quality results.
