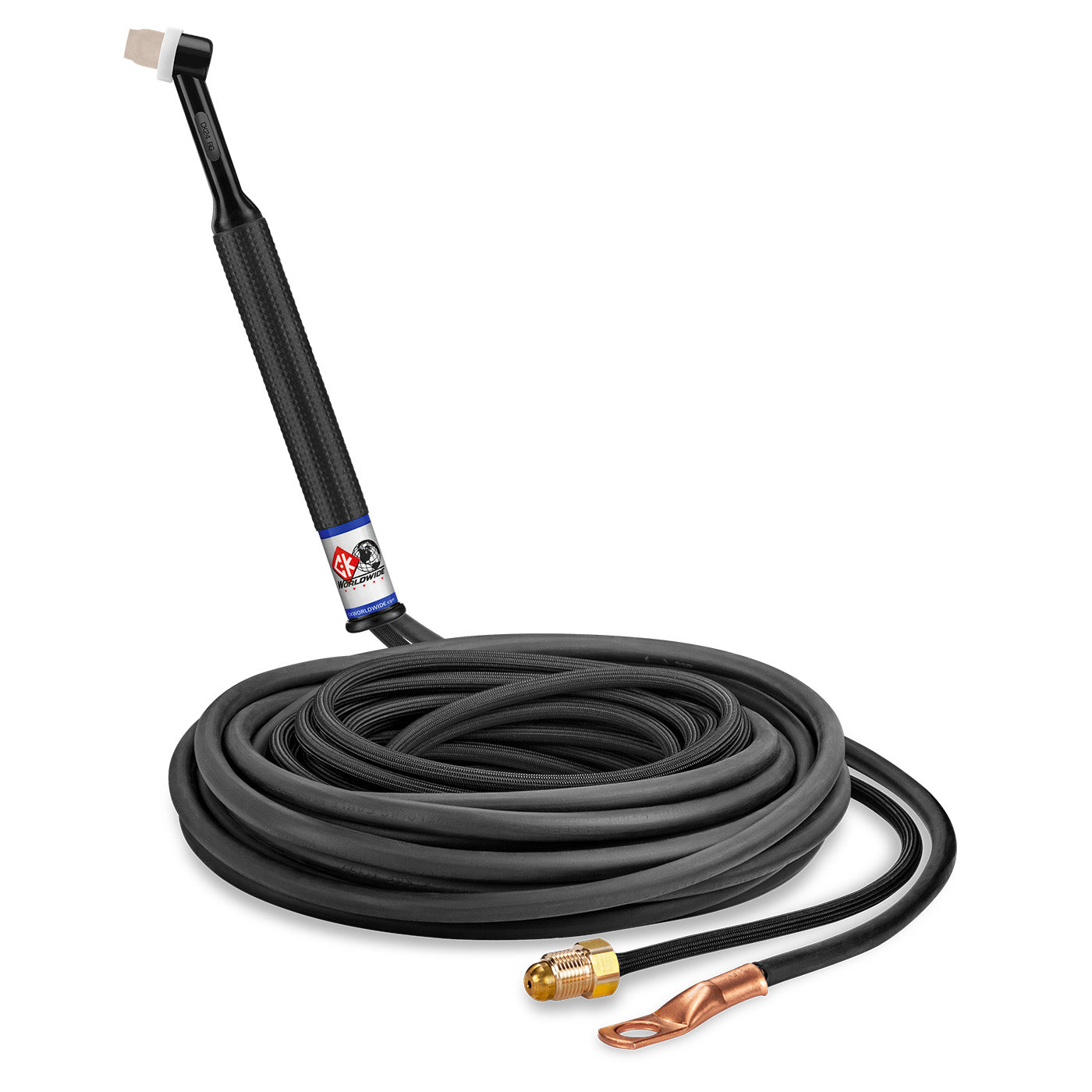

CK24-25-2SF RG - 80 Amp Rigid Head TIG Torch, Gas-Cooled, 25' SuperFlex Cables

The CK24-25-2SF RG delivers 80 amp capacity at 100% duty cycle with gas-cooled efficiency for demanding TIG welding applications. This rigid head torch features 25-foot superflex cables that provide exceptional maneuverability while maintaining precise control for critical welds.

Built on CK Worldwide's proven 8 Series platform, this torch shares the same robust consumable system as the CK80 and CK90 torches. The rigid head design ensures stable arc positioning, while the gas-cooled operation eliminates the complexity of water cooling systems. The two-piece superflex cable configuration provides maximum flexibility without sacrificing durability.

• 80 amp ACHF or DCSP @ 100% duty cycle
• Gas-cooled design — no water cooling required
• 25-foot superflex cables in 2-piece configuration
• 8 Series consumable compatibility with CK80 and CK90 torches
• Rigid head construction for stable arc positioning
• Torch dimensions: 8-1/4" (20.9cm) length, 2-1/4 oz (64gm) weight
• Thread pattern: 3/8" x 32
• Handle compatibility: HS handle standard

Compatible Consumables

• 8C116 — 1/16" (1.6mm) Collet
• 8C332 — 3/32" (2.4mm) Collet
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8CB332 — 3/32" (2.4mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2GL116 — 1/16" (1.6mm) Gas Lens
• 2GL332 — 3/32" (2.4mm) Gas Lens
• 80THS — Standard Heatshield

Ideal for production welding environments requiring extended reach and precise control. Compatible with standard Dinse connectors and AWS/CSA certified for professional fabrication shops and industrial maintenance applications.
