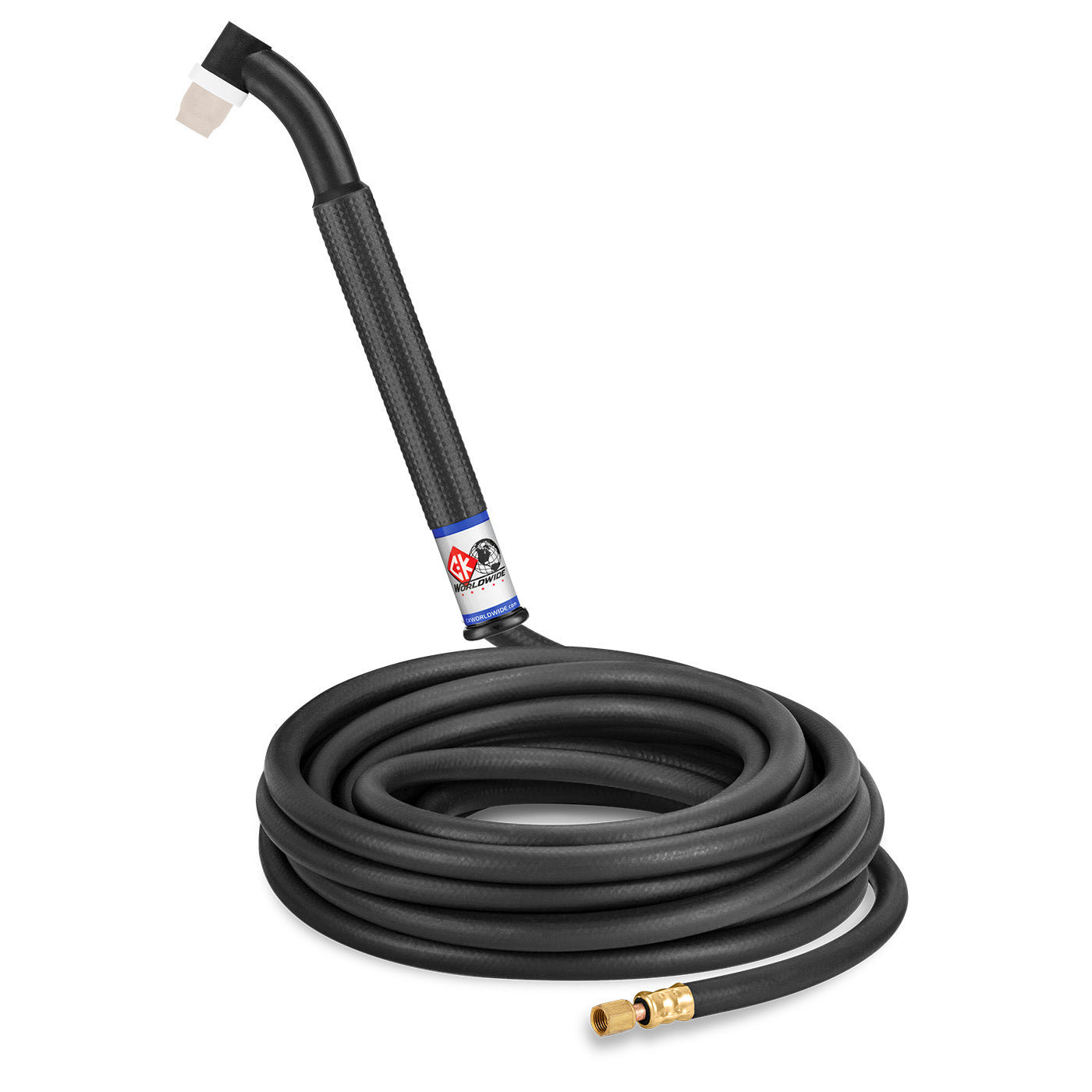

CK24-25-R FX - 90 Amp Flex Head TIG Torch, Gas-Cooled, 25' Cable

The CK24-25-R FX delivers 90-amp AC/DC welding capacity with a professional-grade flex head that provides 40 degrees of articulation in any direction, making it ideal for accessing tight spaces while maintaining precise electrode control. This gas-cooled TIG torch features robust construction engineered for demanding industrial environments with 25-foot cable length for extended reach.

Designed for precision welding applications, the flex head configuration allows welders to maintain optimal electrode positioning without compromising comfort during extended welding sessions. The torch operates at 100% duty cycle for continuous professional use.

• 90 amp capacity AC/DC at 100% duty cycle
• 40-degree flex head articulation in all directions
• 25-foot standard cable length for extended reach
• Gas-cooled design for reliable operation
• 8-1/4" overall length with compact 2-1/4 oz weight
• Professional-grade construction for shop environments
• Compatible with standard 8 Series consumables
• One-piece cable configuration

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 Alumina Cup
• 8A5 — #5 Alumina Cup
• 8A6 — #6 Alumina Cup
• 2GL40 — .040" Gas Lens
• 2GL116 — 1/16" Gas Lens
• 8GHS — Gas Lens Heatshield

This torch is compatible with CK Worldwide's complete 8 Series accessory system and works seamlessly with standard AWS-certified TIG welding power sources. The flex head design makes it particularly well-suited for pipe welding, fabrication work, and maintenance applications where access angles are challenging.
