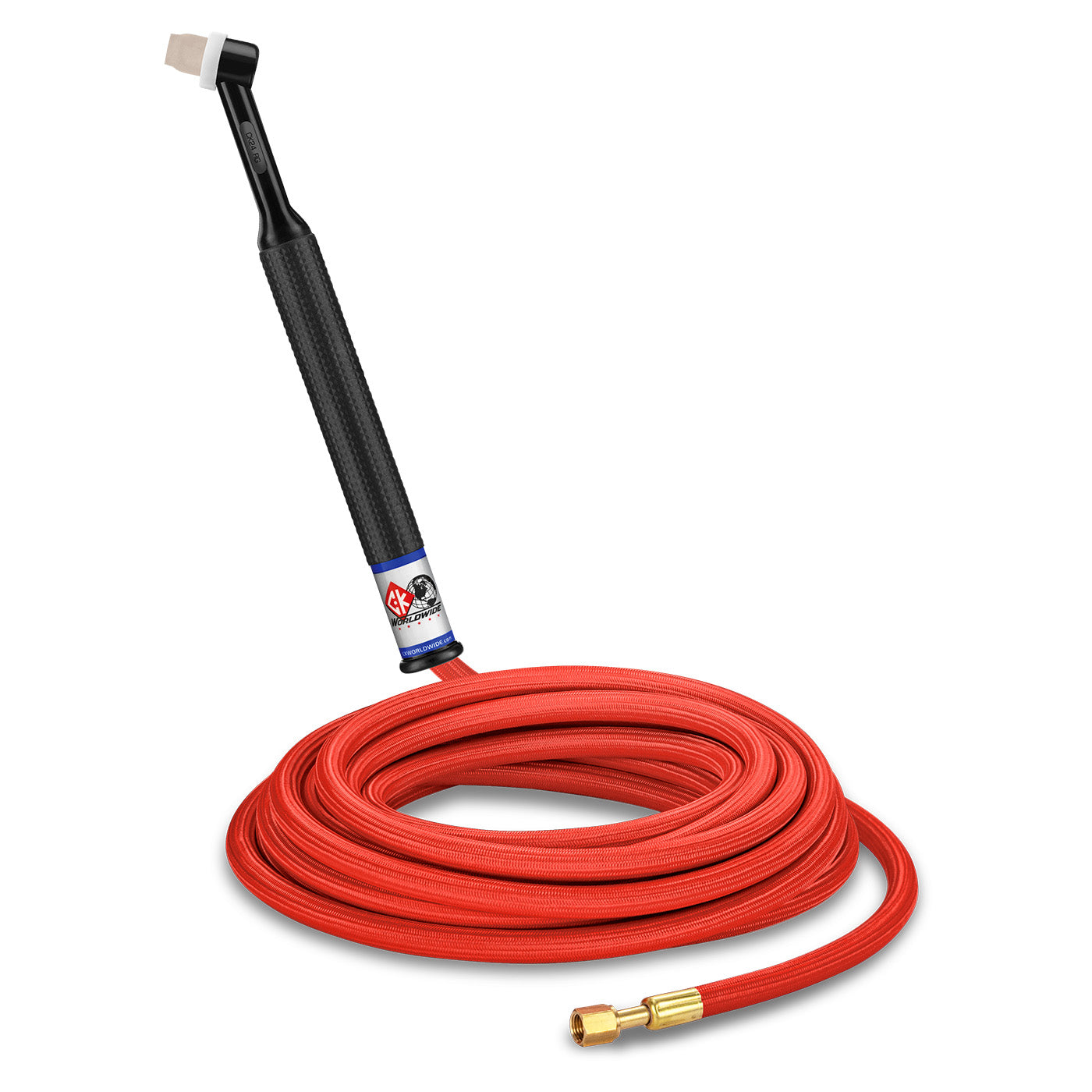

CK24-25-RSF RG - 80 Amp Rigid Head TIG Torch, Gas-Cooled, 25' Superflex Cable

The CK24-25-RSF RG delivers professional TIG welding performance with its 80 amp capacity at 100% duty cycle in a rigid head design. This gas-cooled torch features 25-foot Superflex cables that provide maximum flexibility while maintaining durability in demanding fabrication environments.

Built for precision work, this torch combines CK Worldwide's proven 8 Series head technology with streamlined operation—no valve required for simplified gas control through your welding machine. The rigid head design ensures stable arc control and consistent weld quality, making it ideal for production welding applications.

• 80 amp AC high frequency or DC straight polarity at 100% duty cycle
• 25-foot Superflex cables for maximum maneuverability
• Rigid head design for precise arc control
• Gas-cooled operation for reliable performance
• 8 Series head compatibility with extensive consumable selection
• One-piece cable design reduces connection points
• Overall length: 8-1/4 inches
• Weight: 2-1/4 oz

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL40 — .040" (1.0mm) Gas Lens
• 8GL116 — 1/16" (1.6mm) Gas Lens
• 8GHS — Gas Lens Heatshield

Compatible with standard 8 Series consumables and accessories, this torch provides versatility for various welding applications from thin gauge materials to moderate thickness steel, stainless, and aluminum work.
