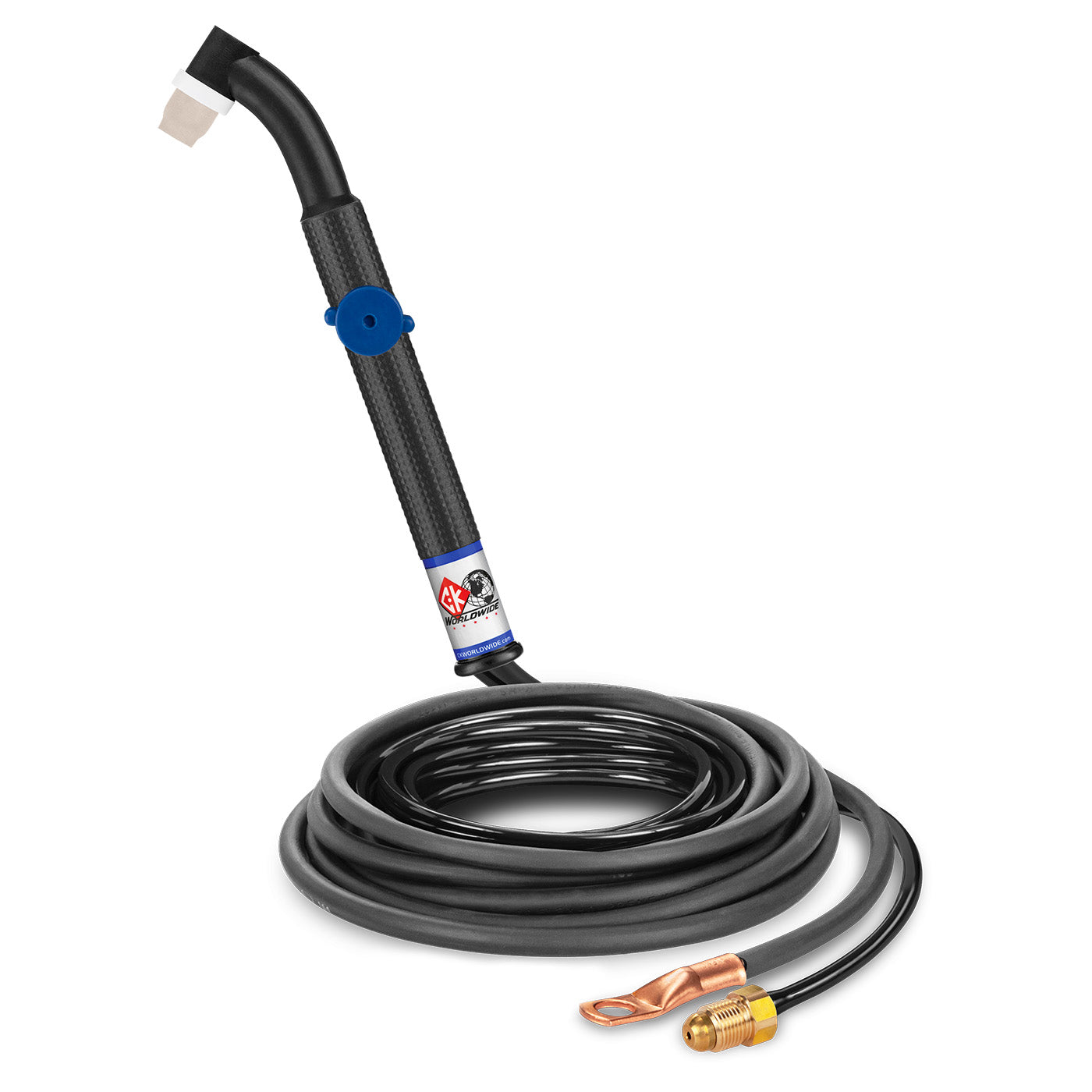

CK24V-12-2 FX - 90 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5' Cable

The CK24V-12-2 FX delivers professional-grade TIG welding performance with CK Worldwide's signature flex head design, providing 40 degrees of articulation in any direction for superior accessibility in confined welding positions. This gas-cooled torch features an integrated valve for precise gas flow control and handles 90 amps at 100% duty cycle on ACHF or DCSP applications.

• 90 amp capacity at 100% duty cycle rating
• Flex head design provides 40° movement in all directions
• Integrated valve on handle for gas flow control
• Gas-cooled construction for optimal heat dissipation
• 12.5-foot cable length for extended reach
• 8-1/4 inch overall length, 2-1/4 oz weight
• Compatible with ACHF and DCSP welding processes
• Professional-grade construction for continuous use

Compatible Consumables

• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 200L — Long Backcap
• 24HVF — CK24V FX Valve Handle
• HS — Standard Handle

The CK24V-12-2 FX uses 2-Series consumables and is ideal for precision work requiring torch maneuverability. The integrated valve eliminates the need for remote gas control, making it perfect for production welding and field applications where consistent gas flow control is essential.
