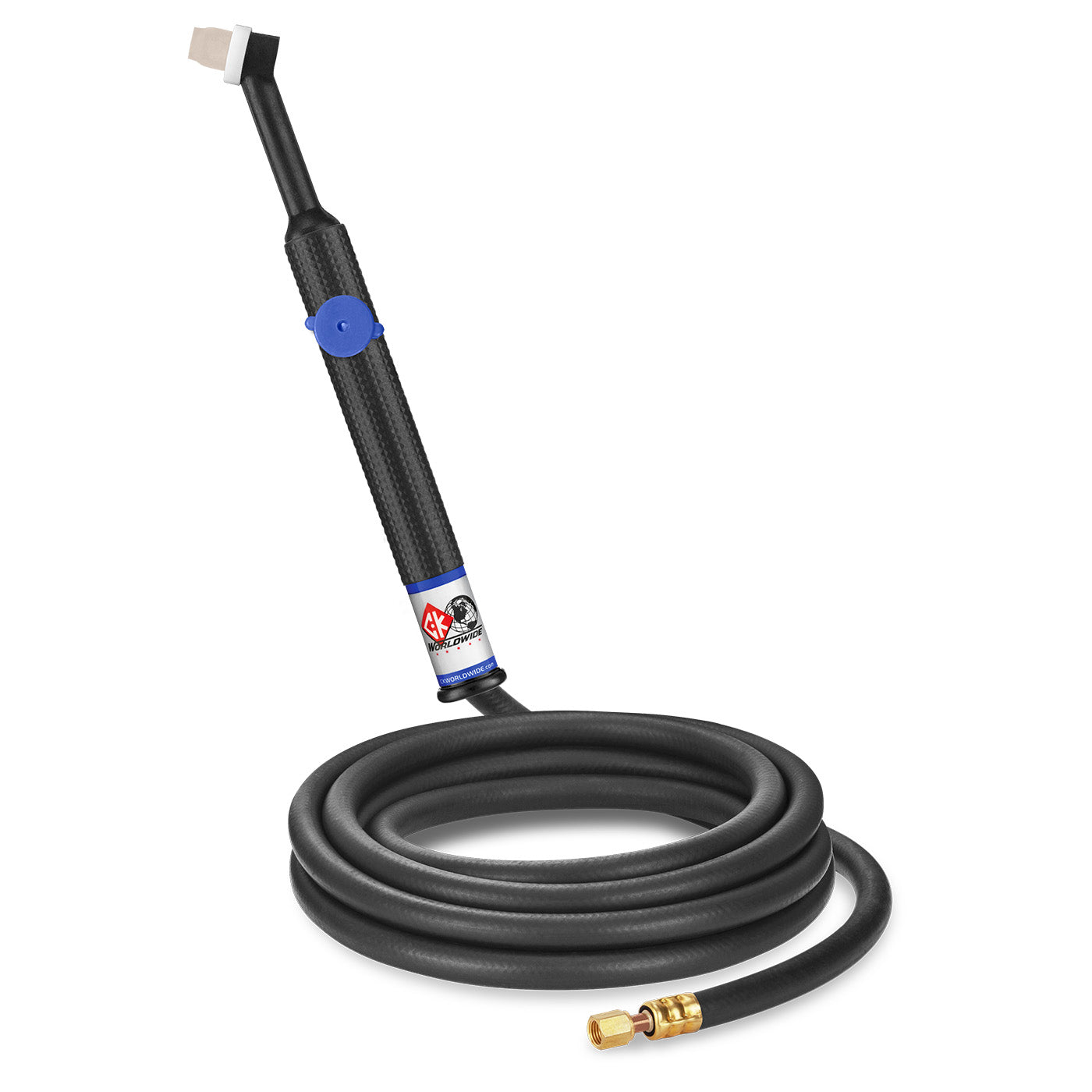

CK24V-12-R RG 80 Amp Rigid TIG Torch with Valve, Gas-Cooled, 12.5

The CK24V-12-R delivers professional TIG welding performance with integrated valve control and 80 amp capacity at 100% duty cycle for continuous operation in demanding fabrication environments.

This rigid-head, gas-cooled torch features an integrated handle valve for precise gas flow control, eliminating the need for separate foot pedal operation. The 12.5-foot standard cable provides excellent maneuverability around the workspace while maintaining reliable power transmission. Compatible with both AC high frequency and DC straight polarity welding applications, this torch delivers consistent arc stability and heat dissipation during extended welding sessions.

• 80 amp capacity at 100% duty cycle
• Gas-cooled design for efficient heat management
• Integrated valve control for precise gas flow adjustment
• 12.5-foot (3.8m) standard cable length
• Rigid head configuration for precise control
• Compatible with AC high frequency and DC straight polarity
• Torch head dimensions: 8-1/4" (20.9cm) length
• Weight: 2-1/4 oz (64g)

Compatible Consumables

• 200L — Long Back Cap
• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• 24HVR — Replacement Valve Handle
• HS — Standard Handle

Ideal for precision welding applications requiring consistent gas flow control and extended duty cycles. This torch shares the same consumable parts as CK80 and CK90 series torches, ensuring easy parts availability and maintenance.
