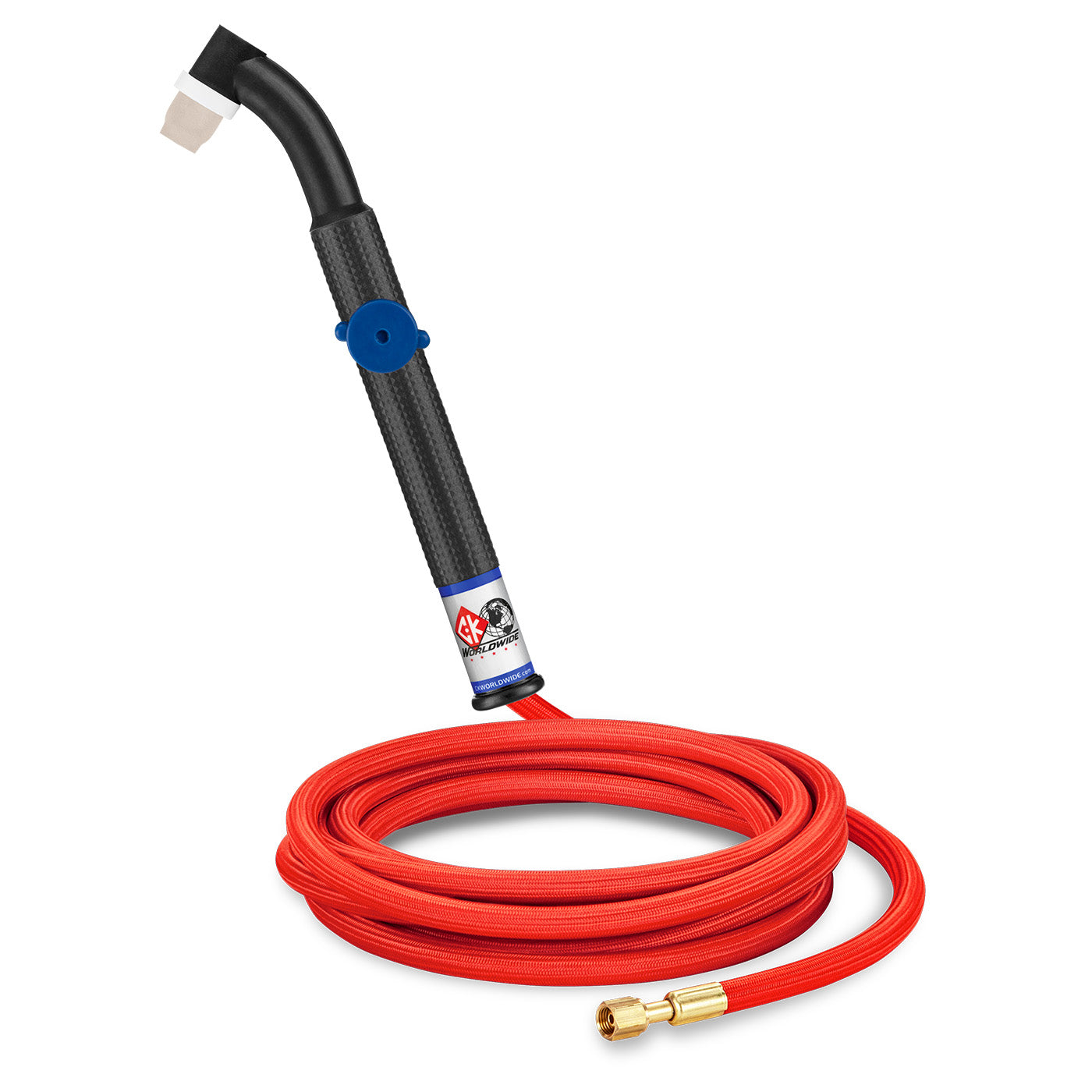

CK Worldwide CK24V-12-RSF FX - 90 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5' Superflex Cable

The CK24V-12-RSF FX delivers professional-grade TIG welding performance with its 90-amp capacity and integrated gas valve control. This flex-head torch features CK's superflex cable technology for maximum maneuverability in demanding production environments.

Engineered for versatility and durability, the CK24V series combines the precision of a 40-degree flex head with valve-on-handle gas flow control. The gas-cooled design operates at 100% duty cycle on both AC high frequency and DC straight polarity, making it ideal for aluminum, stainless steel, and mild steel applications. The 12.5-foot superflex cables provide exceptional flexibility while maintaining consistent electrical conductivity.

• 90 amp capacity at 100% duty cycle (ACHF/DCSP)
• 40-degree flex head for tight-space accessibility
• Integrated gas valve on handle for precise flow control
• 12.5-foot superflex cables for maximum flexibility
• Gas-cooled design — no water cooling required
• 8-1/4 inch overall length, weighs 2-1/4 oz
• Compatible with 2 Series accessories and consumables

Compatible Consumables

• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A4 — #4 Alumina Cup
• 2A5 — #5 Alumina Cup
• 200L — Long Back Cap
• 100VK — Replacement Valve

This torch is compatible with CK's 2 Series consumable system, sharing parts with CK80 and CK90 models. The integrated valve design eliminates the need for remote gas controls, giving welders direct fingertip control over shielding gas flow for precise arc starting and crater fill.
