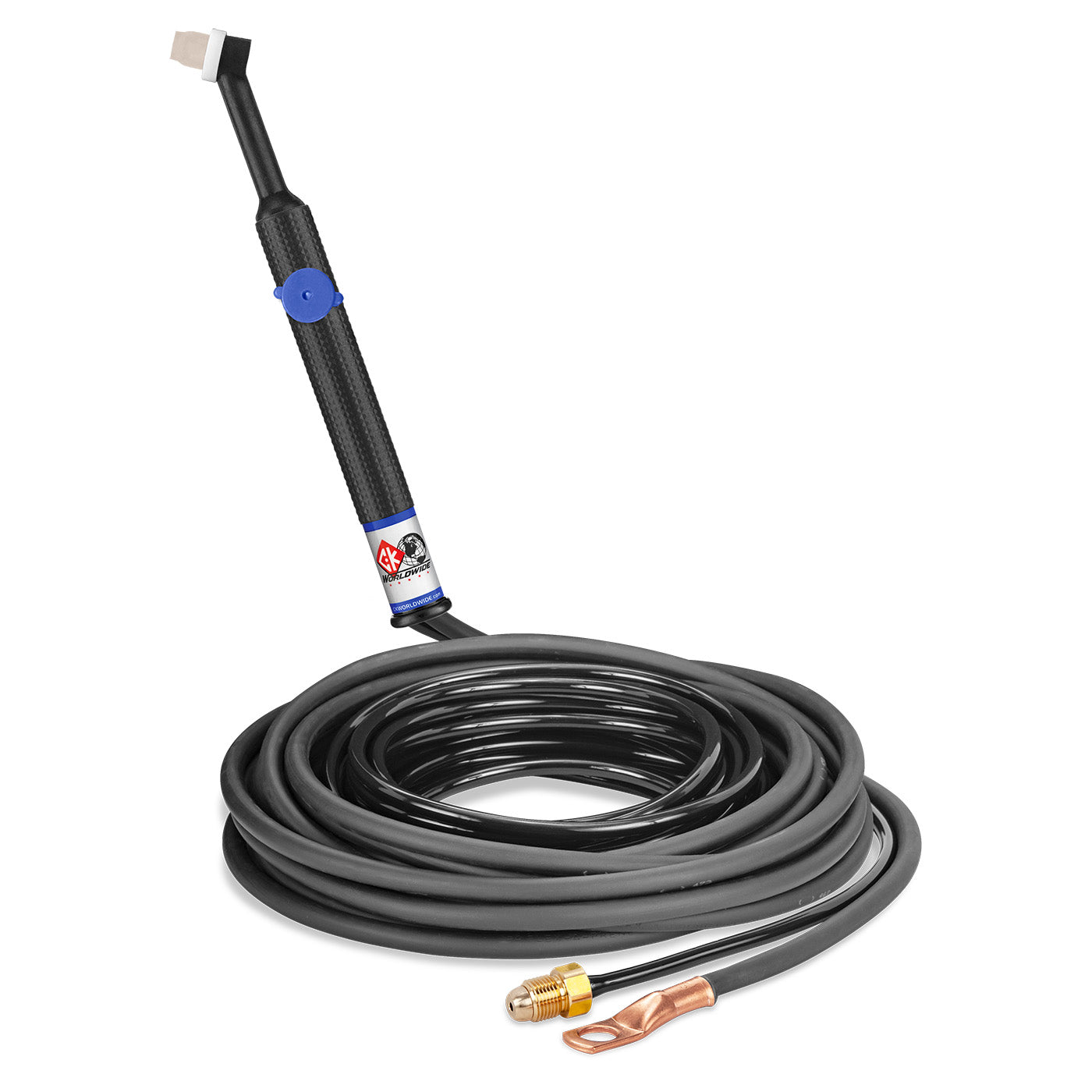

CK Worldwide CK24V-25-2-RG 80 Amp Rigid TIG Torch with Valve, Gas-Cooled, 25

The CK24V-25-2 RG delivers 80 amp TIG welding capacity with integrated valve control in a gas-cooled, rigid head configuration. Built for 100% duty cycle operation, this torch provides the stability and precision demanded by professional welders working on critical applications.

This torch features a rigid head design for maximum arc stability and consistent tungsten positioning. The integrated valve on the handle provides direct gas flow control, eliminating the need for remote gas control systems. Gas-cooled operation ensures reliable performance while keeping operating costs low compared to water-cooled alternatives.

• 80 amp rating at 100% duty cycle (ACHF or DCSP)
• Rigid head for superior arc stability and precision
• Integrated valve for convenient gas flow control
• Gas-cooled design for efficient heat dissipation
• 25-foot cable length for extended reach
• Standard 1-piece cable configuration
• 8-1/4 inch overall length, 2-1/4 oz weight
• Compatible with 8 Series consumables and accessories

Compatible Consumables

• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2A4 — #4 (1/4") Alumina Cup
• 2A5 — #5 (5/16") Alumina Cup
• 2A6 — #6 (3/8") Alumina Cup
• 200L — Long Backcap
• 24HVR — Replacement Handle for CK24V RG
• VKS — Valve Kit

The CK24V-25-2 RG is ideal for fabrication shops, maintenance operations, and production environments where consistent, high-quality TIG welds are essential. Compatible with standard 8 Series consumables for cost-effective operation and easy parts availability.
