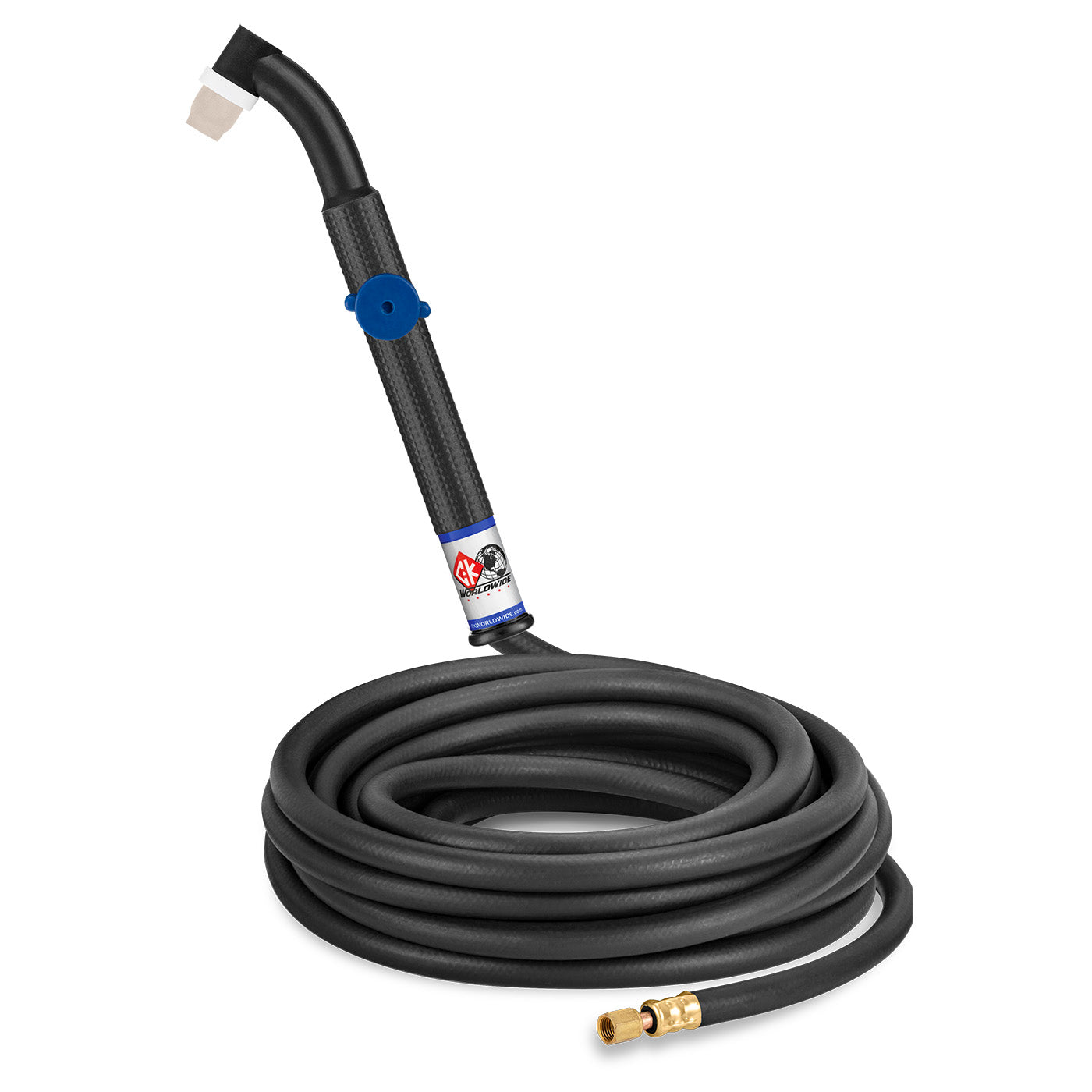

CK24V-25-R FX - 90 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 25' Cable

The CK24V-25-R FX flex-head TIG torch delivers 90 amp capacity at 100% duty cycle with CK Worldwide's signature 40-degree articulating head design for enhanced accessibility in tight welding positions.

This gas-cooled torch combines precision control with durability, featuring an integrated gas valve for precise shielding gas flow adjustment directly at the handle. The 25-foot standard cable configuration provides excellent reach for shop and field applications while maintaining reliable electrical conductivity.

• 90 amp capacity at 100% duty cycle (ACHF/DCSP)
• 40-degree flex head articulation in all directions
• Integrated gas valve for precise flow control
• Gas-cooled design for optimal heat dissipation
• 25-foot standard cables (1-piece configuration)
• Compatible with 8 Series consumables
• CK24V FX torch body with HS handle
• Overall length: 8-1/4" (20.9cm)
• Weight: 2-1/4 oz (64g)

Compatible Consumables

• 2C40 — .040" (1.0mm) Collet
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2CB40 — .040" (1.0mm) Collet Body
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2A4 — #4 (1/4" 6.4mm) Alumina Cup
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 200L — Long Back Cap

Ideal for precision TIG welding applications requiring enhanced maneuverability and gas flow control. The flex-head design excels in confined spaces and complex joint geometries where rigid torches cannot provide proper electrode positioning.
