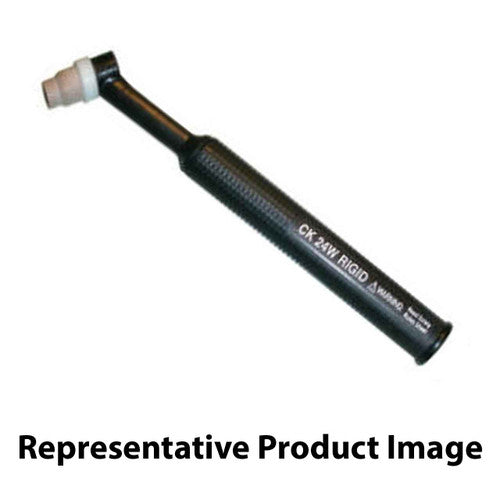

CK Worldwide CK24W-12 - 180 Amp Water-Cooled TIG Torch, Rigid Head, 12.5' Cable

The CK24W-12 delivers professional-grade TIG welding performance with 180 amp capacity at 100% duty cycle, featuring a rigid head design for maximum stability and precision control during critical welding operations.

This gas-cooled torch incorporates CK Worldwide's proven 8 Series head technology with a streamlined design that eliminates the gas valve for direct machine control. The 12.5-foot standard cable configuration provides excellent flexibility for shop and field applications while maintaining consistent arc characteristics.

• 180 amp rating at 100% duty cycle (ACHF or DCSP)
• Rigid head design for superior arc stability and weld control
• Gas-cooled operation with efficient heat dissipation
• 12.5-foot cable length for versatile positioning
• No valve design for streamlined operation
• 8 Series head compatibility with extensive consumable options
• Overall length: 17" (43.2cm) with 8-1/8" neck
• Weight: 3-1/2 oz (99gm)

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8C332 — 3/32" (2.4mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8CB332 — 3/32" (2.4mm) Collet Body
• 8A4 — #4 (1/4") Alumina Cup
• 8A5 — #5 (5/16") Alumina Cup
• 8A6 — #6 (3/8") Alumina Cup
• 80THS — Heatshield

Ideal for aluminum, stainless steel, and exotic alloy welding where precise heat control and arc stability are essential. Compatible with standard argon shielding gas and designed for integration with modern TIG welding power sources featuring remote amperage control.
