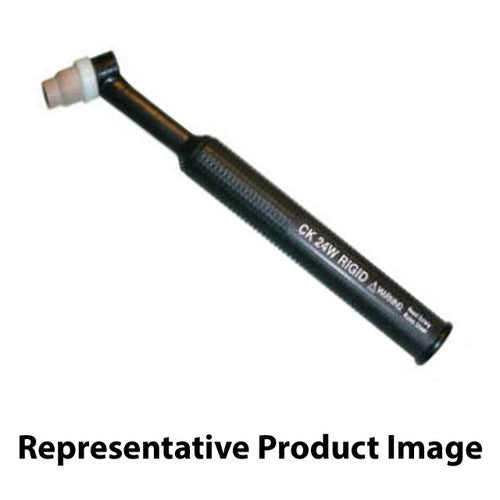

CK Worldwide CK24W-25 TIG Torch - 180 Amp Water-Cooled Rigid Head, 25' Cable

The CK24W-25 delivers professional-grade TIG welding performance with its 180 amp capacity and 100% duty cycle rating. This rigid head, gas-cooled torch is built for demanding fabrication environments where precision and reliability are non-negotiable.

Engineered for AC high frequency or DC straight polarity applications, this torch features CK Worldwide's proven 8 Series design with standard 3-piece cable construction. The rigid head configuration provides superior arc stability for precision work, while the gas-cooled system ensures consistent performance without the complexity of water cooling systems.

• 180 amp capacity at 100% duty cycle
• 25-foot cable length for extended reach
• Gas-cooled design eliminates water cooling requirements
• Rigid head style for maximum arc stability
• 8-1/8" overall length, 3-1/2 oz weight
• Compatible with 8 Series consumables
• Standard 3-piece cable construction
• Non-valved configuration

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8C332 — 3/32" (2.4mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8CB332 — 3/32" (2.4mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 80THS — Standard Heatshield

Ideal for production welding, structural fabrication, and maintenance applications where consistent arc performance is critical. Compatible with CK Worldwide's complete line of 8 Series consumables and accessories for maximum versatility across aluminum, steel, and stainless steel applications.
