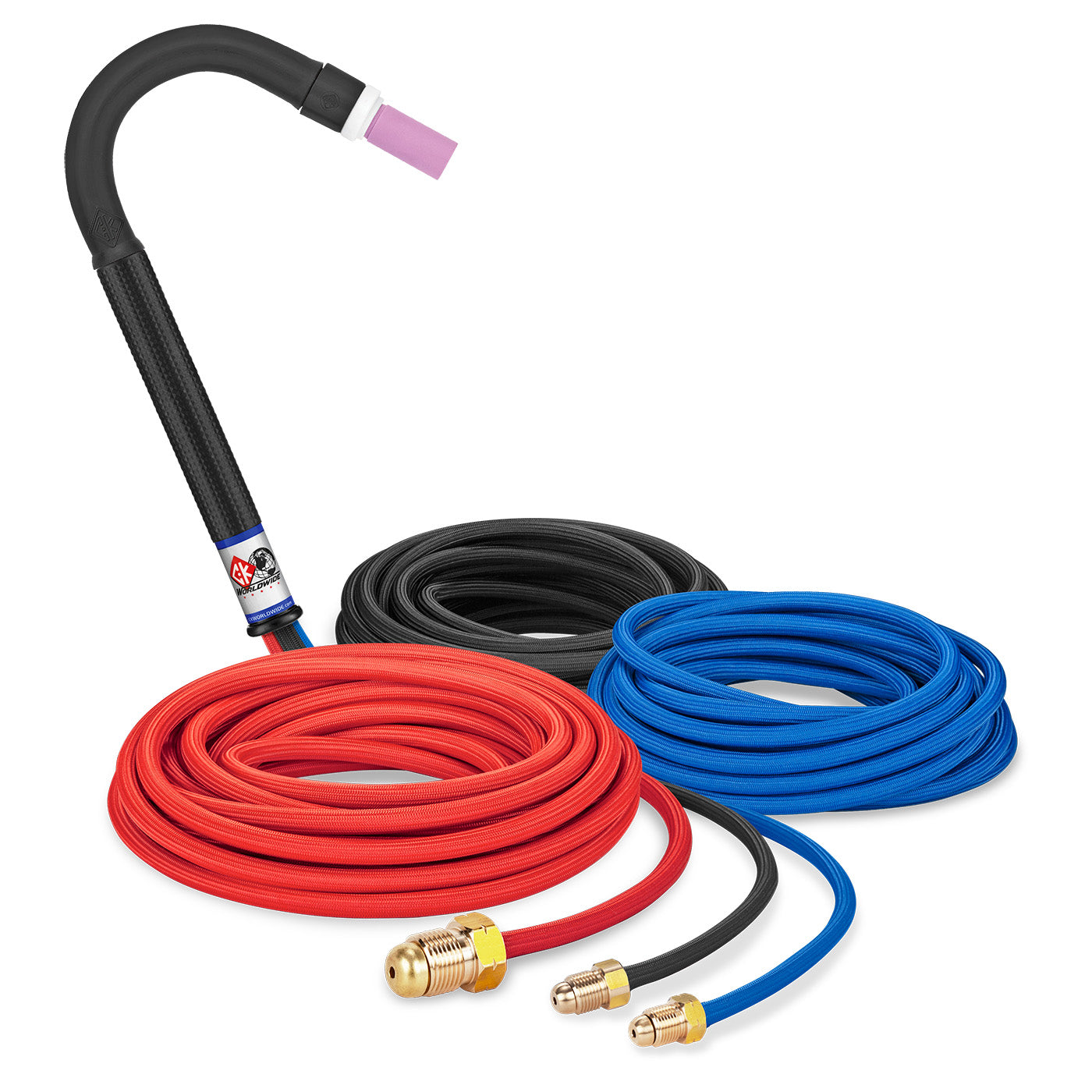

CK Worldwide CK25-25SF 250 Amp Flex Head TIG Torch, Water-Cooled, 25' Superflex Cables

The CK25 250-amp flex head TIG torch delivers professional-grade performance for demanding production welding applications. With 100% duty cycle rating and CK Worldwide's signature 40-degree flex head design, this water-cooled torch provides exceptional access and maneuverability in tight spaces while maintaining consistent arc performance.

Built with Max Flow water cooling technology and 25-foot Superflex cables, this torch stays cooler longer while providing maximum cable flexibility for unrestricted movement around the workpiece. The streamlined design omits the valve for simplified operation and reduced weight.

• Amperage Rating: 250 amp ACHF or DCSP @ 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Design: Flex head with 40-degree articulation
• Cable Length: 25 feet of Superflex cables
• Overall Length: 11-1/2" (29.2cm) neck length
• Weight: 3 oz (85gm) torch head
• Thread Pattern: 5/16" x 24 (2 Series consumables)
• Construction: 3-piece cable assembly

Compatible Consumables

• 200L — Long Back Cap
• 2C116 — 1/16" (1.6mm) Collet
• 2C332 — 3/32" (2.4mm) Collet
• 2C418 — 1/8" (3.2mm) Collet
• 2CB116 — 1/16" (1.6mm) Collet Body
• 2CB332 — 3/32" (2.4mm) Collet Body
• 2CB418 — 1/8" (3.2mm) Collet Body
• 2A5 — #5 (5/16" 8.0mm) Alumina Cup
• 2A6 — #6 (3/8" 9.6mm) Alumina Cup
• 2GL116 — 1/16" Gas Lens

Compatible with all 2 Series consumables and accessories, this torch works seamlessly with standard alumina cups, gas lenses, and tungsten electrodes. The CK25 is also known as the CK200 and CKPF200 in various configurations, ensuring broad compatibility across CK Worldwide's professional torch lineup.
