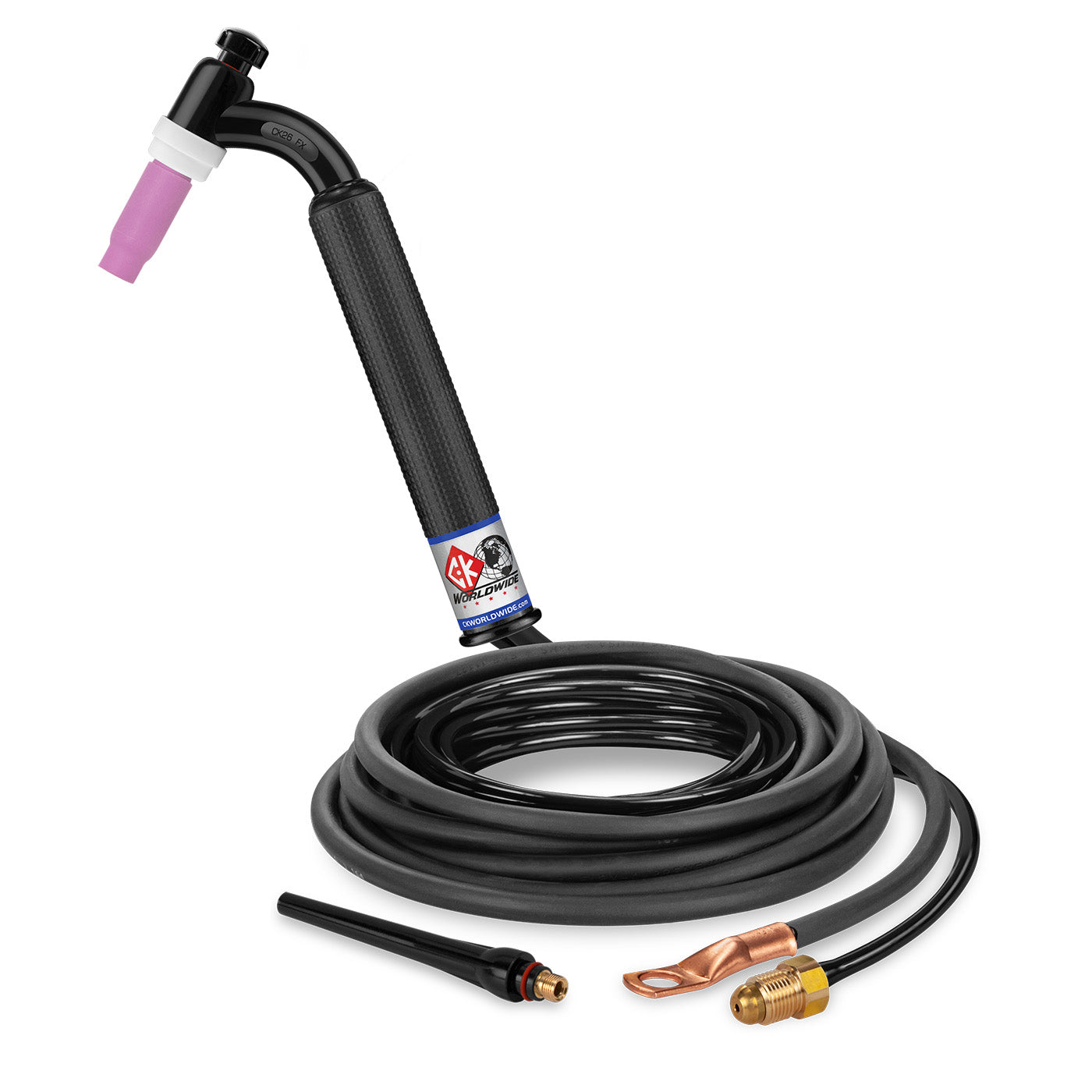

CK Worldwide CK26-12-2 FX TIG Torch - 200 Amp Gas-Cooled Flex Head, 12.5' Cable

The CK26-12-2 FX delivers professional-grade TIG welding performance with CK Worldwide's signature 40-degree flex head that pivots in any direction for enhanced access in tight spaces. This gas-cooled workhorse handles 200 amps at 100% duty cycle on both AC high frequency and DC straight polarity applications.

Built with a streamlined design that eliminates the gas valve for reduced weight and simplified operation, this torch features 12.5-foot standard cables in a convenient 2-piece configuration. The flex head construction allows welders to maintain proper torch angle without repositioning their entire setup, making it ideal for complex fabrication work and confined area welding.

• 200 amp rating at 100% duty cycle ACHF/DCSP
• 40-degree flex head articulation in any direction
• Gas-cooled design for maximum heat dissipation
• 2-piece cable configuration for versatility
• 12.5-foot cable length for extended reach
• 7/8" x 14RH power cable connections
• 9-5/8" overall length, 7-1/2 oz weight
• No gas valve design for streamlined operation
• Compatible with 3 Series head accessories

Compatible Consumables

• 3C040GS — .040" Wedge Collet
• 3C116GS — 1/16" Wedge Collet
• 3C332GS — 3/32" Wedge Collet
• 3C418GS — 1/8" Wedge Collet
• 3CBGS — Collet Body
• 3A4GS — #4 Alumina Cup
• 3A5GS — #5 Alumina Cup
• 3A6GS — #6 Alumina Cup
• 300L — Long Backcap
• 300S — Short Backcap

This torch accepts standard 3 Series consumables and is compatible with CK's GasSaver kit system for up to 40% shield gas savings. The flex head design makes it particularly effective for pipe welding, structural fabrication, and any application requiring precise torch positioning in challenging orientations.
