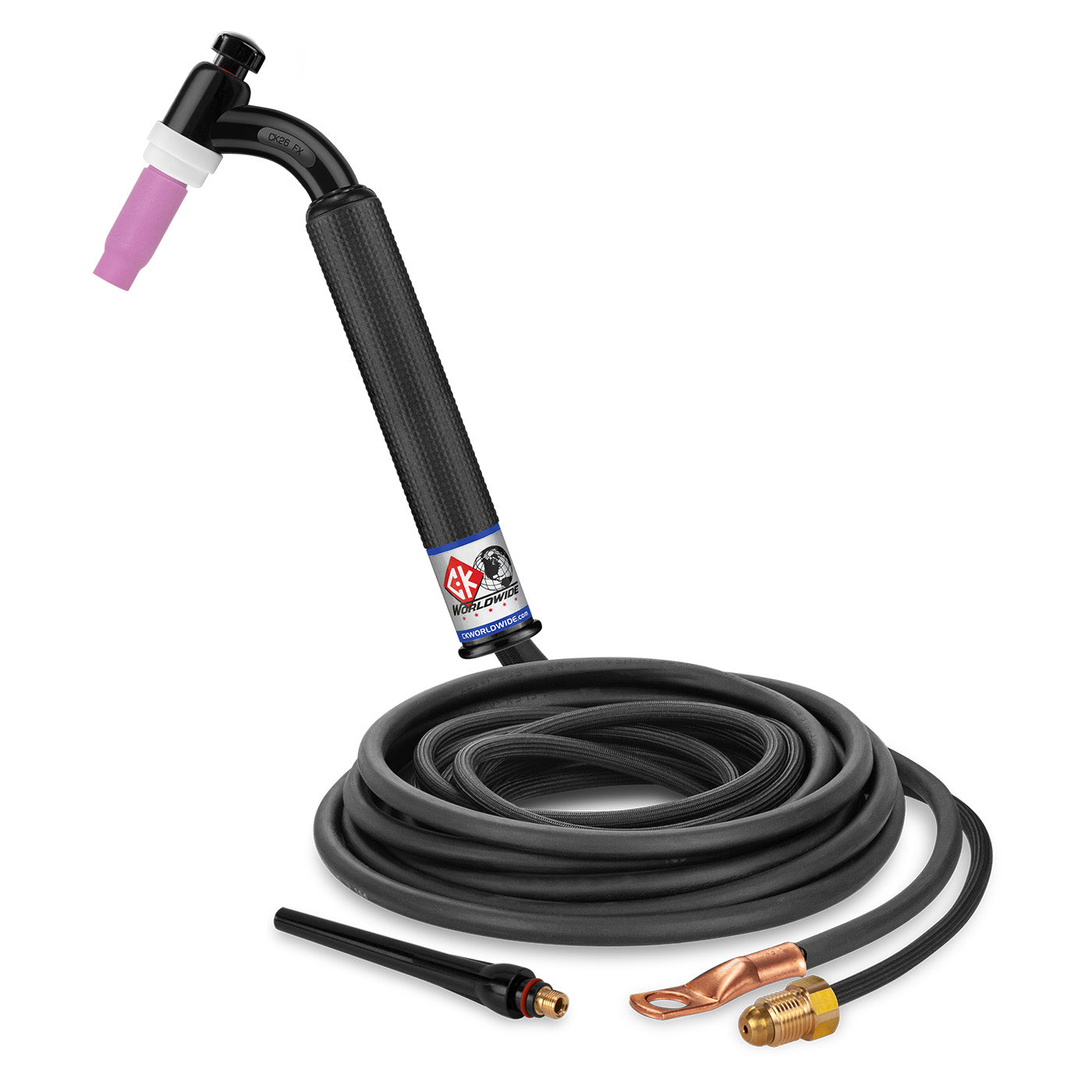

CK Worldwide CK26-12-2SF FX - 200 Amp Flex Head TIG Torch, Gas-Cooled, 12.5' SuperFlex Cable

The CK26-12-2SF FX delivers exceptional versatility with its signature flex head design, allowing 40 degrees of articulation in any direction for superior access in tight welding spaces. This 200-amp gas-cooled torch features SuperFlex cables and operates at 100% duty cycle for continuous heavy-duty applications.

• Amperage Rating: 200 amp ACHF or DCSP @ 100% duty cycle
• Head Style: Flex head with 40-degree articulation
• Cable Configuration: 2-piece SuperFlex cables, 12.5 ft length
• Cooling Type: Gas-cooled for maximum heat dissipation
• Weight: 7.5 oz (212 grams)
• Overall Length: 9-5/8" (24.4 cm)
• Power Connection: 7/8" x 14RH power cable connections
• Valve: No valve design for streamlined operation

Compatible Consumables

• 300S — Short Back Cap
• 300M — Medium Back Cap
• 300L — Long Back Cap
• 3C116 — 1/16" Wedge Collet
• 3C332 — 3/32" Wedge Collet
• 3C418 — 1/8" Wedge Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup

Part of the CK26 3-Series torch family, this model accepts all standard 3-Series consumables and accessories. The 2-piece cable design separates gas and power lines for enhanced flexibility, while the gas-cooled system eliminates the need for water cooling infrastructure in demanding fabrication environments.
