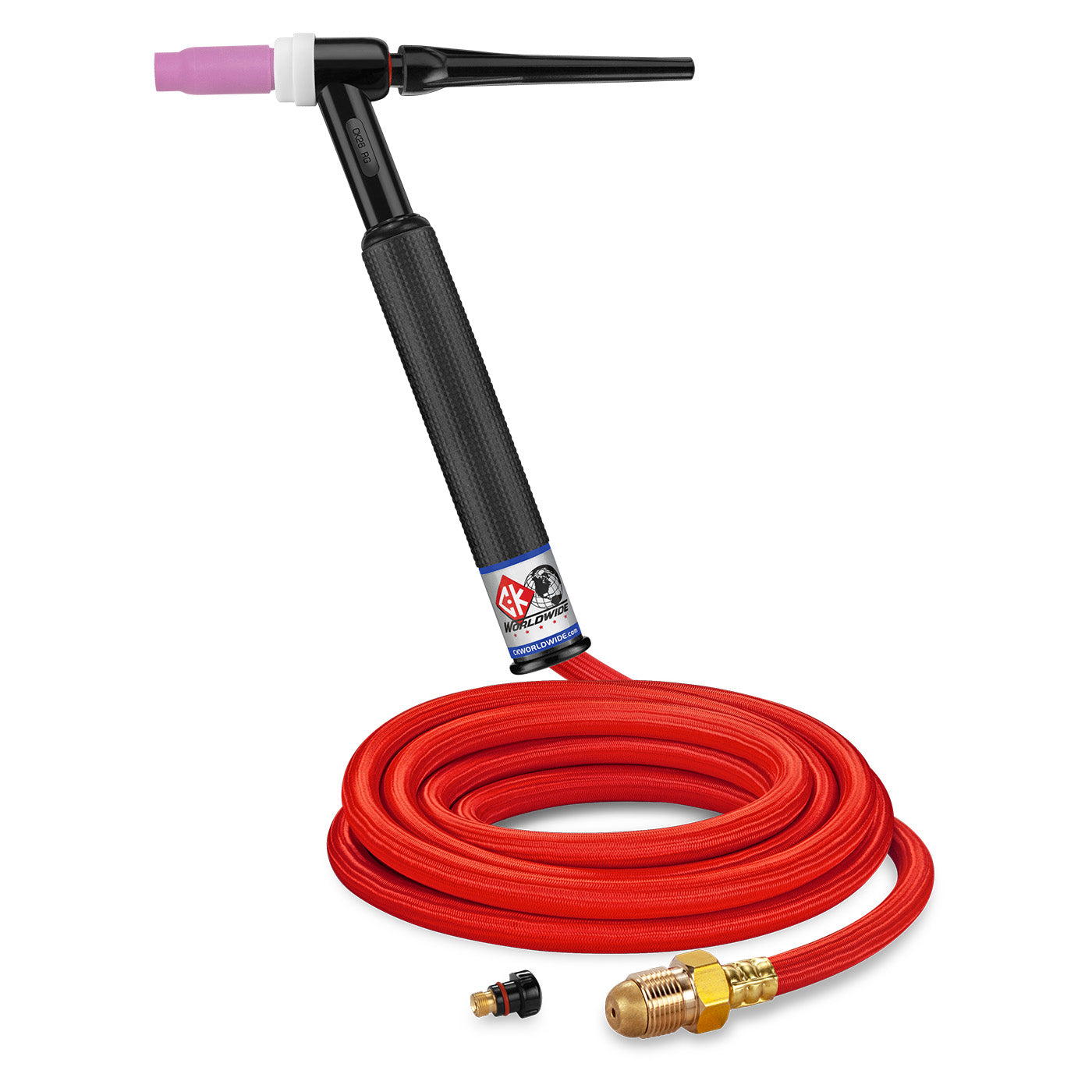

CK Worldwide CK26-12-RSF RG 200 Amp Rigid TIG Torch, Gas-Cooled, 12.5' SuperFlex

The CK26-12-RSF RG delivers professional-grade TIG welding performance with 200 amp AC/DC capacity at 100% duty cycle, featuring a rigid head design for maximum precision and control in demanding fabrication work.

This gas-cooled torch combines durability with flexibility through its SuperFlex cable construction, allowing unrestricted movement around complex workpieces while maintaining consistent arc performance. The rigid head configuration provides superior tungsten electrode stability for precise weld starts and intricate detail work.

• Amperage Rating: 200 amp AC high frequency or DC straight polarity at 100% duty cycle
• Head Style: Rigid configuration for maximum precision
• Cable: 12.5 ft SuperFlex design for enhanced maneuverability
• Cooling: Gas-cooled for optimal heat dissipation
• Weight: 7.5 oz (212g) torch head
• Torch Length: 9.5 inches (24.1cm)
• Power Connection: 7/8" x 14RH standard connection
• Valve: Non-valved design for streamlined operation

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 300L — Long Back Cap

Compatible with all 3 Series torch accessories and consumables, this torch integrates seamlessly with existing CK Worldwide setups while providing the amperage capacity needed for heavy steel fabrication, aluminum welding, and precision stainless steel applications.
