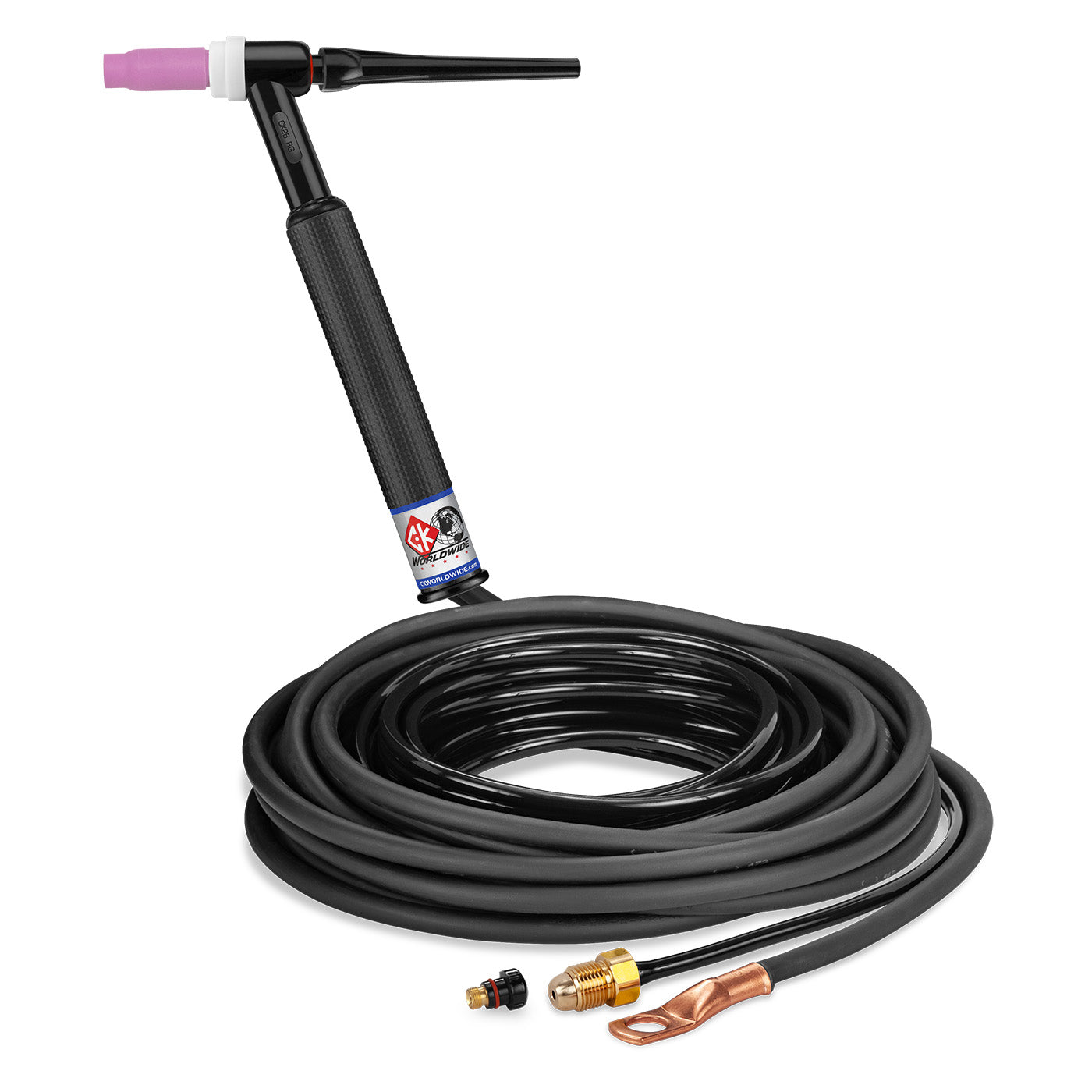

CK Worldwide CK26-25-2 RG TIG Torch - 200 Amp Gas-Cooled Rigid Head, 25' Cable

The CK26-25-2 RG delivers 200 amp capacity at 100% duty cycle with a rigid head design that provides the stability and precision demanded by professional TIG welders. This gas-cooled torch features a 2-piece cable configuration with 25-foot standard cables, making it ideal for shop environments where mobility and reliable performance are essential.

Built on the proven CK26 platform, this torch combines durability with ergonomic design. The rigid head construction eliminates flex during welding operations, ensuring consistent arc positioning and superior weld quality. Gas cooling provides efficient heat dissipation while maintaining the lighter weight profile preferred for extended welding sessions.

• Amperage Rating: 200 amp ACHF or DCSP at 100% duty cycle
• Head Style: Rigid construction for maximum stability
• Cooling Type: Gas-cooled for efficient heat management
• Cable Configuration: 2-piece, 25-foot standard series cables
• Overall Length: 9-1/2" (24.1cm)
• Weight: 7-1/2 oz (212g)
• Power Connection: 7/8" x 14RH standard lug connector
• Valve: No valve configuration for streamlined operation

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Wedge Collet
• 3C332 — 3/32" (2.4mm) Wedge Collet
• 3C418 — 1/8" (3.2mm) Wedge Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 300L — Long Back Cap

The CK26 series utilizes 3 Series Head Accessories and is compatible with both standard consumables and gas lens conversion kits for enhanced shielding gas coverage. This torch is well-suited for structural welding, fabrication work, and production applications where consistent performance and operator comfort are priorities.
