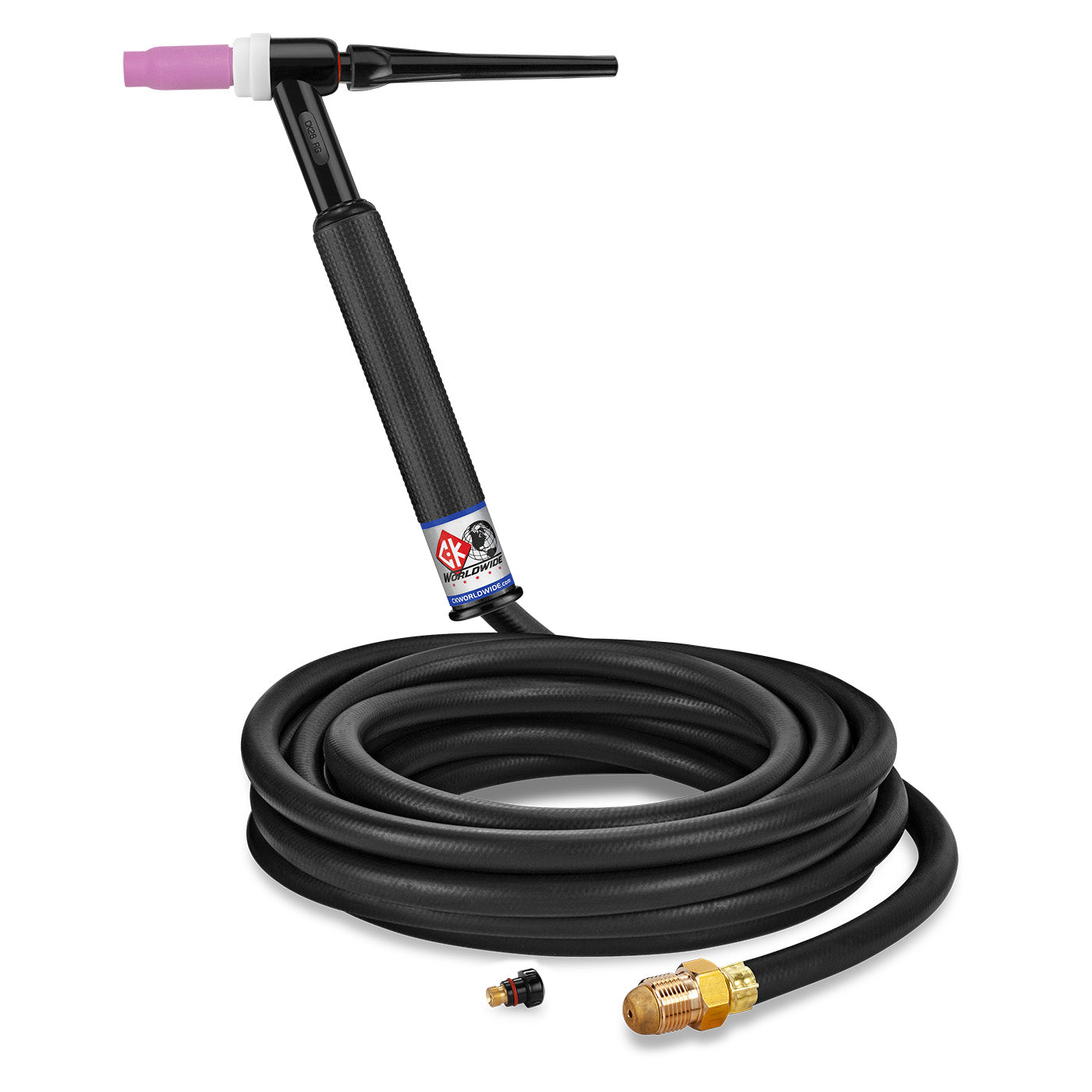

CK Worldwide CK26-25-R RG 200 Amp Rigid TIG Torch, Gas-Cooled, 25' Standard Cable

The CK26-25-R RG delivers 200 amp capacity at 100% duty cycle in a gas-cooled rigid head configuration designed for demanding production welding applications. This single-piece torch with 25-foot standard cables provides the reliability and precision that professional welders expect from CK Worldwide's proven 3 Series design.

Built with a rigid head design for maximum arc stability and control, this torch excels in applications requiring consistent tungsten positioning and precise weld placement. The gas-cooled design eliminates the complexity of water cooling while maintaining excellent heat dissipation through efficient airflow management.

• 200 amp rating — ACHF or DCSP at 100% duty cycle
• Gas-cooled design — No water cooling required
• Rigid head configuration — Superior arc stability and control
• 25-foot cable length — Extended reach for large workpieces
• Single-piece cable design — Streamlined setup and reduced connections
• 7/8" x 14RH power connections — Standard industry threading
• Compact profile — 9-1/2" overall length, 7-1/2 oz weight
• 3 Series compatibility — Uses standard CK consumables

Compatible Consumables

• 300S — Short Backcap
• 300M — Medium Backcap
• 300L — Long Backcap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup

Perfect for aluminum and stainless steel fabrication where portability is essential but amperage demands exceed air-cooled torch capabilities. The CK26 series accepts all standard 3 Series consumables and works with most TIG welding machines equipped with standard lug connections.
