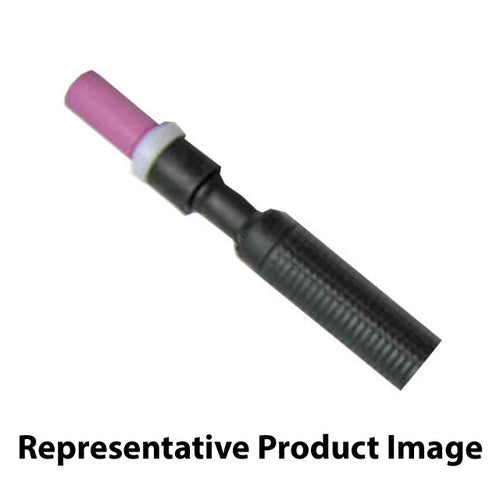

CK Worldwide CK26P-12-R 200 Amp Gas-Cooled TIG Torch, Pencil Rigid Head, 12.5

The CK Worldwide CK26P-12-R delivers precision and durability for demanding TIG applications, featuring a lightweight pencil rigid head design that provides exceptional control and access in tight spaces. This 200-amp gas-cooled torch operates at 100% duty cycle on both AC high frequency and DC straight polarity, making it ideal for aluminum and steel fabrication work.

• 200 amp rating at 100% duty cycle (ACHF or DCSP)
• Pencil rigid head — only 3 oz (85g) for reduced operator fatigue
• 9-1/4" (23.5cm) overall length for excellent maneuverability
• Gas-cooled design for efficient heat dissipation
• 12.5 ft standard cable with 1-piece construction
• 7/8" x 14RH power cable connections
• 3 Series consumable compatibility
• No integrated valve for streamlined operation

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup

The lightweight pencil design makes this torch particularly well-suited for detailed work, precision welding, and applications requiring extended welding periods. Compatible with all 3 Series consumables and accessories, ensuring easy maintenance and parts availability for professional welding operations.
