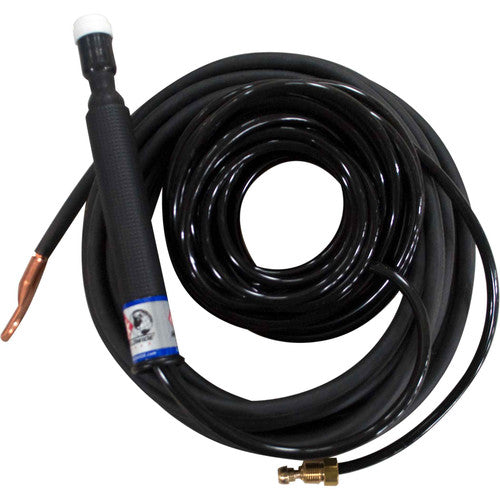

CK26P-25-2 - 200 Amp Gas-Cooled TIG Torch, Pencil Rigid Head, 25' Cable

The CK26P-25-2 delivers professional-grade precision with its rigid pencil head design, rated for 200 amp ACHF or DCSP at 100% duty cycle for continuous heavy-duty operation. This gas-cooled torch features a streamlined valve-free design and 25-foot standard cables for extended reach in demanding fabrication environments.

Built for welders who demand accuracy and reliability, this torch combines CK Worldwide's proven 3 Series head technology with the lightweight advantage of a pencil-style head configuration. The rigid head construction eliminates flex during welding, ensuring consistent arc positioning and superior weld quality on critical applications.

• 200 amp rating — ACHF or DCSP at 100% duty cycle
• Gas-cooled design — Maximum heat dissipation without water cooling complexity
• Rigid pencil head — 9-1/4" length, 3 oz weight for precise control
• 25-foot standard cables — 2-piece configuration for flexibility
• 7/8" x 14RH power connections — Industry-standard compatibility
• Valve-free operation — Streamlined design reduces maintenance points
• 3 Series head accessories — Wide range of consumable options

Compatible Consumables

• 300S — Short Backcap
• 300L — Long Backcap
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 4C116 — 1/16" Gas Lens Collet
• 4GL116 — 1/16" Gas Lens

Compatible with CK Worldwide's complete 3 Series consumable lineup and 4 Series gas lens accessories. The torch accepts standard tungsten electrodes and works with most Miller, Lincoln, and ESAB TIG welders equipped with standard dinse connections.
