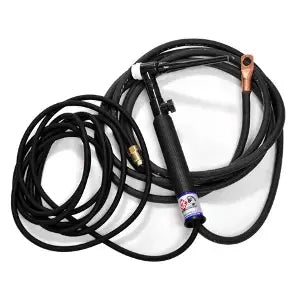

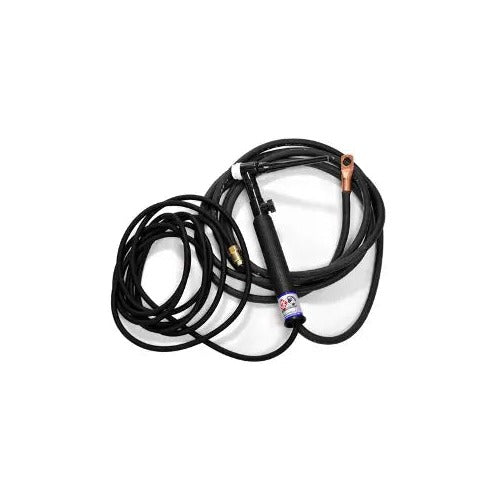

CK Worldwide CK26V-12-2SF FX 200 Amp Flex Head TIG Torch with Valve, Gas-Cooled, 12.5' SuperFlex Cable

The CK26V-12-2SF FX delivers precision TIG welding performance with its signature 40-degree flex head and integrated gas valve for complete control on demanding applications. This gas-cooled torch combines 200-amp capacity at 100% duty cycle with superflex cables for maximum maneuverability in tight spaces.

Built on CK Worldwide's proven 3 Series platform, this torch features a two-piece cable design that reduces stress on connections while maintaining consistent power delivery. The flex head technology allows welders to access challenging joint configurations without compromising arc stability or gas coverage.

• 200 amp rating at 100% duty cycle (ACHF or DCSP)
• 40-degree articulating flex head in all directions
• Integrated gas valve on handle for precise flow control
• 12.5-foot superflex cable assembly for enhanced flexibility
• Two-piece cable design reduces connection stress
• Gas-cooled for optimal heat dissipation
• 9-5/8 inch overall length, 7-1/2 oz weight
• 7/8" x 14RH power cable connections

Compatible Consumables

• 3C40 — .040" (1.0mm) Collet
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB40 — .040" (1.0mm) Collet Body
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A4 — #4 (1/4") Alumina Cup
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 300S — Short Backcap

This torch excels in production welding environments where access angles vary frequently, making it ideal for structural fabrication, repair work, and precision manufacturing applications requiring consistent arc control with gas flow adjustment capability.
