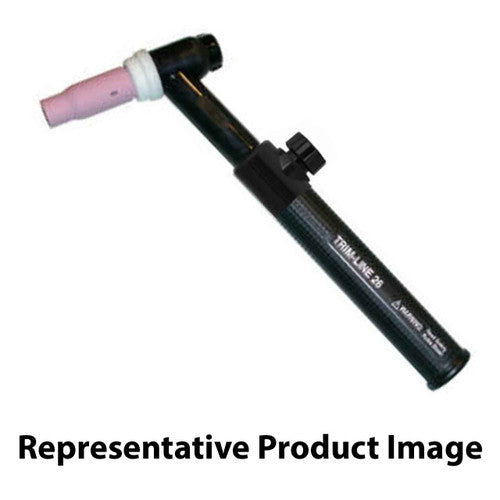

CK Worldwide CK26V-12-R RG 200 Amp TIG Torch with Valve, Gas-Cooled, 12.5' Cable

The CK26V-12-R RG delivers professional-grade TIG welding performance with 200 amp capacity at 100% duty cycle for demanding fabrication work. This gas-cooled torch features a rigid head design with integrated valve control for precise gas flow management directly at the handle.

Engineered for reliability in production environments, this torch combines CK Worldwide's proven 3 Series head accessories with standard 12.5-foot cables and 7/8" x 14RH power connections. The rigid head configuration provides exceptional stability for precision welding applications, while the valve control eliminates the need for remote gas flow adjustments.

• Amperage Rating: 200 amp AC/DC at 100% duty cycle
• Cooling Type: Gas-cooled for maximum heat dissipation
• Head Style: Rigid with integrated valve control
• Cable Length: 12.5 feet (3.8m) standard configuration
• Overall Length: 9-1/2" (24.1cm)
• Weight: 7-1/2 oz (212g)
• Power Connections: 7/8" x 14RH threads
• Series Compatibility: 3 Series head accessories

Compatible Consumables

• 300S — Short Back Cap
• 300L — Long Back Cap
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup

Perfect for fabrication shops requiring consistent arc control and gas flow management in a single torch package. Compatible with all 3 Series consumables and accessories, making it easy to maintain inventory and reduce setup time across multiple welding stations.
