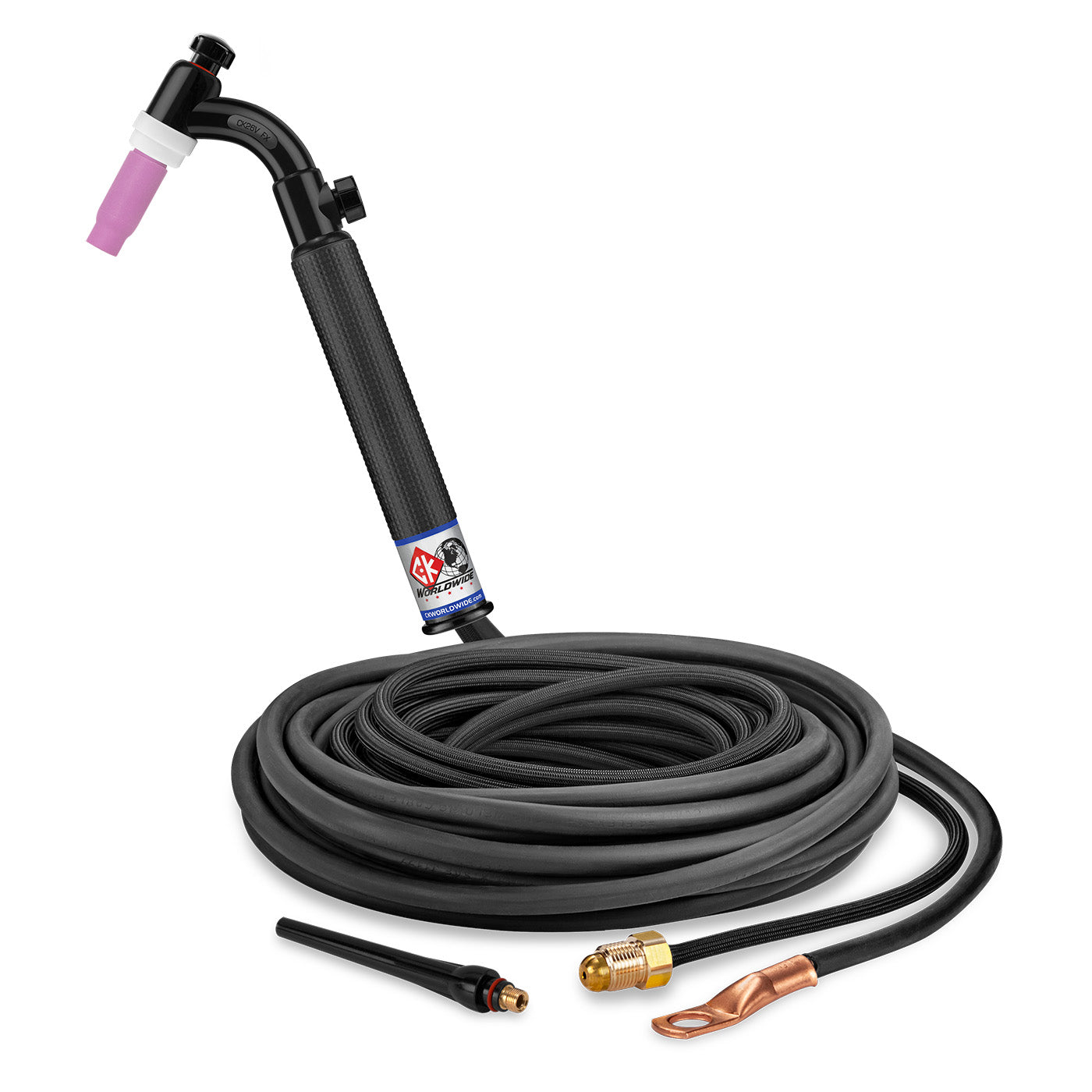

CK Worldwide CK26V-25-2SF RG 200 Amp TIG Torch with Valve, Gas-Cooled, 25' SuperFlex

The CK26V-25-2SF RG delivers 200 amp capacity at 100% duty cycle for demanding TIG applications where precision and reliability are non-negotiable. This gas-cooled torch features a rigid head design with integrated valve control and 25-foot superflex cables for maximum maneuverability in tight spaces.

Built on CK Worldwide's proven 3 Series platform, this torch combines the stability of a rigid head with the convenience of handle-mounted gas flow control. The two-piece superflex cable configuration provides exceptional flexibility while maintaining the power delivery needed for high-amperage work. Gas cooling ensures efficient heat dissipation during extended welding sessions.

• Amperage Rating: 200 amp ACHF or DCSP @ 100% duty cycle
• Head Style: Rigid with integrated valve
• Cooling Type: Gas-cooled
• Cable Length: 25 feet (7.6m)
• Cable Type: Two-piece superflex construction
• Overall Length: 9-1/2" (24.1cm)
• Weight: 7-1/2 oz (212gm)
• Power Connections: 7/8" x 14RH threads
• Series: CK26 3 Series compatibility

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Back Cap

Ideal for fabrication shops and industrial maintenance operations requiring consistent arc performance and operator control. Compatible with standard CK 3 Series consumables and accessories, making maintenance straightforward and cost-effective.
