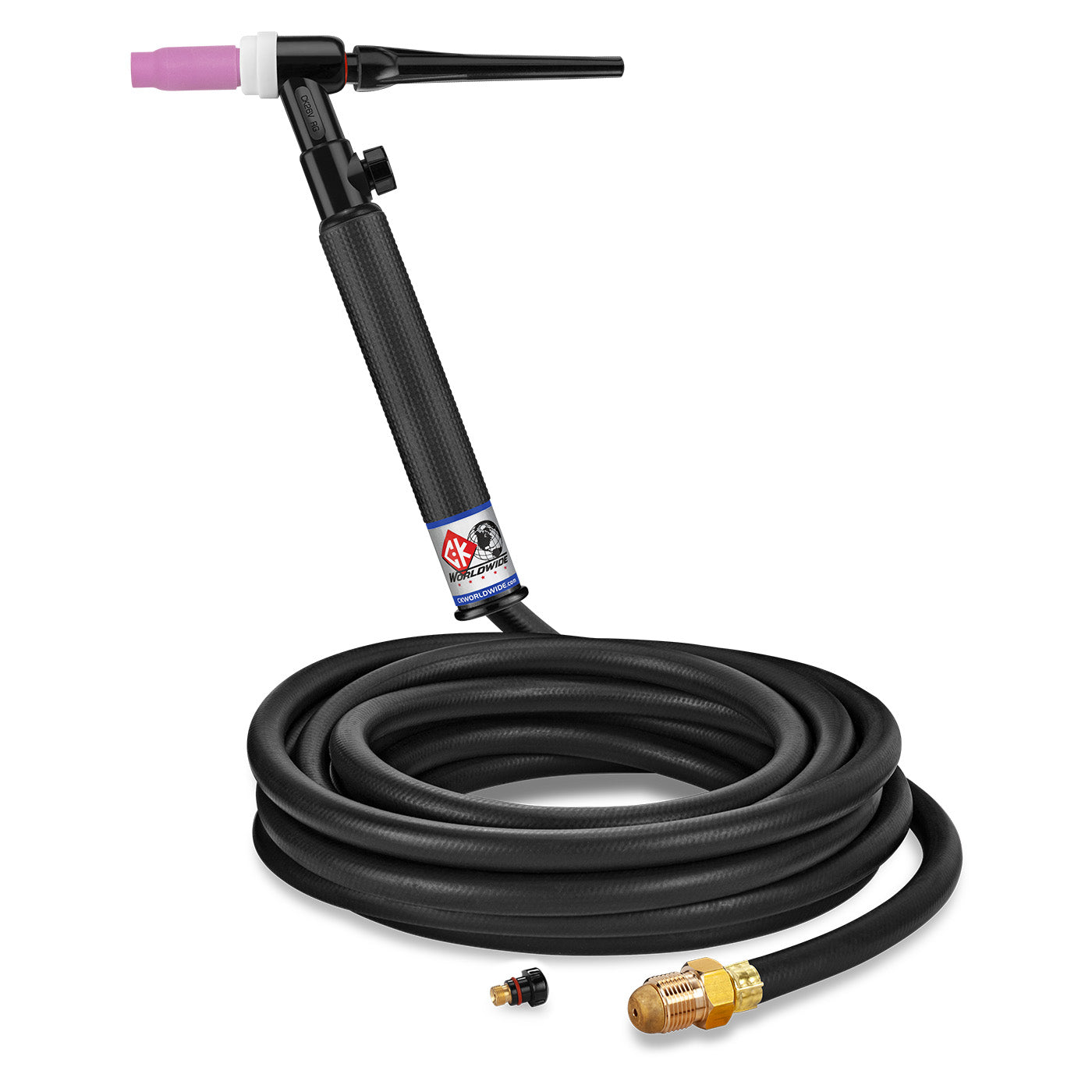

CK Worldwide CK26V-25-R RG 200 Amp TIG Torch - Rigid Head with Valve, Gas-Cooled, 25

The CK26V-25-R RG delivers professional-grade TIG welding capability with integrated gas valve control for enhanced operator precision. This 200-amp gas-cooled torch features a rigid head design that ensures consistent arc stability and precise tungsten positioning across demanding fabrication applications.

Built for continuous operation at 200 amp ACHF or DCSP @ 100% duty cycle, this torch handles extended welding sessions without thermal degradation. The integrated valve on the handle provides immediate gas flow control, eliminating the need for remote foot pedals or machine-mounted controls. Standard 25-foot cables offer excellent reach for shop and field applications while maintaining proper electrical conductivity.

• Amperage Rating: 200 amp ACHF or DCSP @ 100% duty cycle
• Cooling Type: Gas-cooled for reliable heat dissipation
• Head Style: Rigid with integrated valve control
• Cable Configuration: 1-piece, 25 ft. standard cables
• Weight: 7-1/2 oz (212 gm)
• Length: 9-1/2" (24.1 cm)
• Power Connection: 7/8" x 14RH threads
• Series: 3 Series head accessories compatible

Compatible Consumables

• 300S — Short Back Cap
• 300L — Long Back Cap
• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• T1167GC2 — 1/16" x 7" 2% Ceriated Tungsten

This torch accepts standard 3 Series consumables and accessories, making maintenance straightforward and cost-effective. Compatible with most TIG welding machines featuring standard Dinse or twist-lock connections for immediate integration into existing welding systems.
