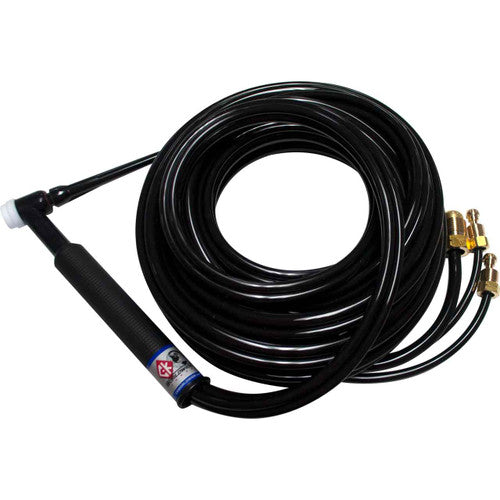

CK Worldwide CK325 350 Amp Water-Cooled TIG Torch - Rigid Head, 25' Standard Cables

CK Worldwide's CK325 delivers professional-grade precision with 350 amperage capacity and water-cooled reliability for demanding fabrication work. This rigid head torch maintains consistent arc stability while the Max Flow cooling system extends operating life under continuous high-amperage conditions.

Built for production environments, this torch features a rigid head design that eliminates flex during precision welding operations. The water-cooled system operates at 100% duty cycle at 350 amps on both AC high frequency and DC straight polarity applications. Standard 25-foot cables provide shop flexibility while maintaining optimal power delivery.

• 350 amp capacity at 100% duty cycle (ACHF/DCSP)
• Water-cooled design with Max Flow technology
• Rigid head for maximum arc stability
• 25-foot standard cables with 3-piece construction
• Streamlined design without valve for direct machine control
• 9.5-inch overall length with 6.5 oz operating weight
• 3/8" x 32 thread pattern for 3 Series consumables

Compatible Consumables

• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

The CK325 integrates seamlessly with CK Worldwide's 3 Series consumable system and accepts standard Dinse power connections. Designed for aluminum, stainless steel, and exotic alloy applications where sustained high amperage and precise control are essential.
