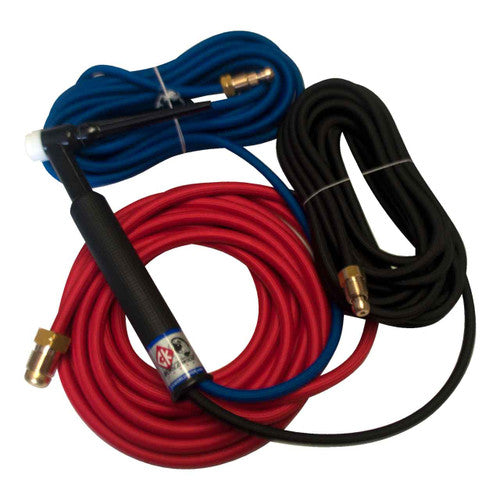

CK Worldwide CK325SF 350 Amp Rigid Head TIG Torch, Water-Cooled, 25' Super-Flex Cables

The CK325SF delivers professional-grade performance with 350 amp capacity at 100% duty cycle for demanding water-cooled TIG applications. This rigid head torch combines CK Worldwide's Max Flow cooling technology with 25-foot Super-Flex cables for enhanced maneuverability without compromising cooling efficiency.

Built for continuous heavy-duty welding, this torch features a streamlined design without gas valve for direct machine control applications. The rigid head configuration ensures precise arc control and consistent weld quality, while the water-cooling system maintains optimal operating temperatures during extended welding sessions.

• Amperage Rating: 350 amps ACHF/DCSP at 100% duty cycle
• Head Style: Rigid for maximum stability and precision
• Cooling: Water-cooled with Max Flow technology
• Cable Length: 25 feet (7.6m) Super-Flex for superior flexibility
• Cable Type: 3-piece Super-Flex construction
• Weight: 6.5 oz (184 gm) torch head
• Overall Length: 9-1/2" (24.1 cm)
• Thread Pattern: 3/8" x 32 standard
• Valve: Non-valved design for machine control

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Back Cap

Compatible with CK 3-Series consumables and standard 3/8" x 32 thread accessories. Ideal for fabrication shops, structural welding, and industrial maintenance applications requiring consistent high-amperage performance with superior cable flexibility.
