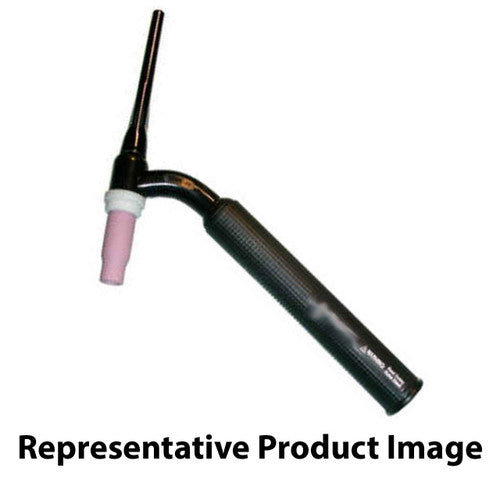

CK Worldwide CK325V TIG Torch - 350 Amp Water-Cooled Rigid Head with Valve, 25ft Cable

The CK325V delivers professional-grade precision for demanding TIG applications with 350 amp capacity at 100% duty cycle in a water-cooled design. This rigid head torch with integrated valve provides exceptional arc control and extended operation time for high-amperage welding projects.

Built on CK Worldwide's proven 3 Series platform, this torch features Max Flow cooling technology to maintain optimal operating temperatures during continuous use. The valve-equipped handle allows precise gas flow adjustment without returning to the machine controls, improving productivity in production environments.

• Amperage Rating: 350 amps AC/DC at 100% duty cycle
• Cooling System: Water-cooled with Max Flow technology
• Head Style: Rigid with integrated gas valve
• Cable Length: 25 feet standard 3-piece cable set
• Thread Pattern: 3/8" x 32 for standard 3 Series consumables
• Overall Length: 9-1/2 inches
• Weight: 6.5 oz (torch head only)
• Compatibility: AC/DC TIG welding applications

Compatible Consumables

• 3CB116 — 1/16" Collet Body
• 3CB332 — 3/32" Collet Body
• 3CB418 — 1/8" Collet Body
• 3C116 — 1/16" Collet
• 3C332 — 3/32" Collet
• 3C418 — 1/8" Collet
• 3A5 — #5 Alumina Cup
• 3A6 — #6 Alumina Cup
• 3A8 — #8 Alumina Cup
• 300L — Long Back Cap

Ideal for fabrication shops, structural welding, and heavy industrial applications requiring consistent high-amperage performance. Compatible with all CK 3 Series consumables and accessories for maximum versatility across different welding projects.
