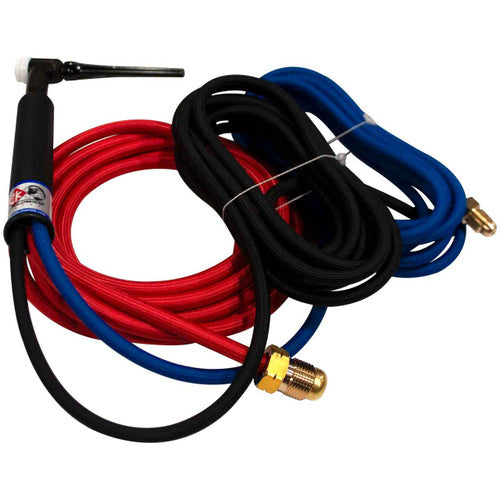

CK Worldwide CK3512SF FX 400 Amp Flex Head TIG Torch, Water-Cooled, 12.5' Super-Flex

The CK3512SF FX delivers maximum versatility for demanding TIG welding applications with its signature flex head design that articulates 40 degrees in any direction. This 400 amp @ 100% duty cycle water-cooled torch combines CK Worldwide's Max Flow cooling technology with superflex cables for enhanced maneuverability in tight spaces.

• 400 amp capacity at 100% duty cycle for continuous high-amperage welding
• Flex head design provides 40-degree articulation in all directions
• Water-cooled construction with Max Flow technology for superior heat management
• 12.5-foot superflex cables maximize flexibility and reduce operator fatigue
• Streamlined design without valve for simplified operation
• 3-piece cable assembly for easy maintenance and replacement
• Compatible with 3 series consumables and accessories

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

Ideal for fabrication shops requiring maximum amperage capacity with enhanced maneuverability around complex weldments. The flex head design makes this torch particularly valuable for welding in confined spaces where standard rigid torches cannot reach optimal angles.
