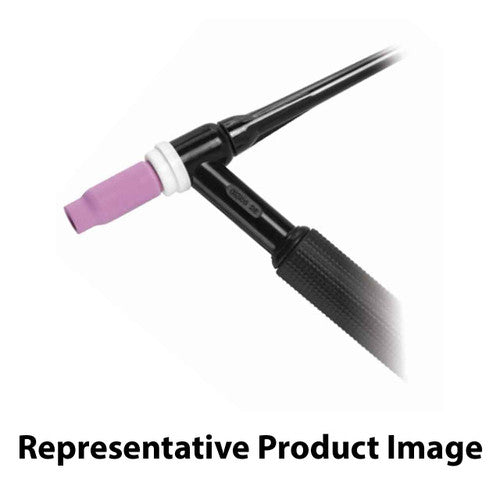

CK Worldwide CK3525 400A Water-Cooled TIG Torch - Rigid Head, 25' Standard Cable

The CK3525 delivers 400 amps at 100% duty cycle in a water-cooled rigid head design, making it the professional standard for heavy-duty TIG welding applications. This torch features CK's Max Flow technology for superior cooling performance and comes equipped with 25-foot standard cables for reliable shop floor operation.

Built for demanding production environments, this torch provides consistent arc stability and precise control for both ACHF and DCSP welding processes. The rigid head configuration ensures steady torch positioning during long welding sessions, while the water-cooling system maintains optimal operating temperatures even under continuous high-amperage use.

• Amperage Rating: 400 amps @ 100% duty cycle
• Cooling Type: Water-cooled with Max Flow technology
• Head Style: Rigid head for enhanced stability
• Cable Length: 25 feet standard cables
• Cable Configuration: 3-piece standard series
• Valve: No valve (streamlined design)
• Thread Pattern: 3/8" x 32 (3 Series compatibility)
• Overall Length: 9-1/2" (24.1cm)
• Weight: 6.5 oz (184gm)

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16" 8.0mm) Alumina Cup
• 3A6 — #6 (3/8" 9.6mm) Alumina Cup
• 3A8 — #8 (1/2" 12.8mm) Alumina Cup
• 300L — Long Backcap

Compatible with all 3 Series torch accessories and consumables. Perfect for fabrication shops, shipyards, and heavy industrial applications requiring maximum amperage capacity with water-cooled reliability. Uses standard Dinse and adapter connections for universal power source compatibility.
