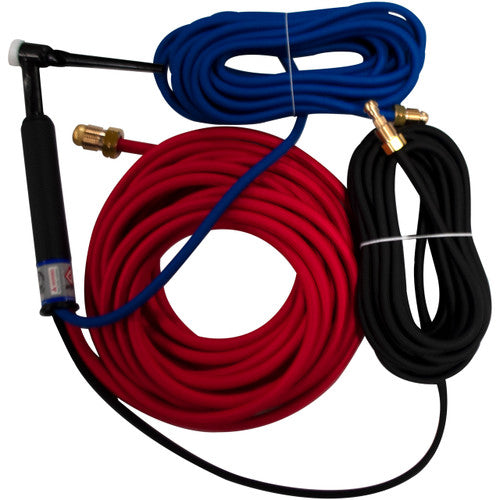

CK Worldwide CK3525SF FX 400 Amp Flex Head TIG Torch Water-Cooled 25' SuperFlex

The CK3525SF FX delivers professional-grade TIG welding performance with 400 amperage at 100% duty cycle and CK Worldwide's signature flex head technology providing 40 degrees of directional versatility for challenging weld positions.

This water-cooled torch features Max Flow technology for superior heat dissipation during extended welding sessions, while the 25-foot superflex cables maximize maneuverability without sacrificing durability. The streamlined design excludes a valve for simplified operation, making it ideal for precision TIG applications where consistent arc control is paramount.

• 400 amp @ 100% duty cycle — continuous welding capability
• Water-cooled with Max Flow technology — enhanced thermal management
• Flex head design — 40-degree articulation in any direction
• 25-foot superflex cables — maximum workspace mobility
• Valve-free design — streamlined operation
• 3 Series consumable compatibility — standard torch accessories

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 300L — Long Back Cap

Compatible with CK Series 17, 18, and 26 torch accessories and consumables. Requires appropriate water-cooling system and power source capable of 400-amp output for optimal performance.
