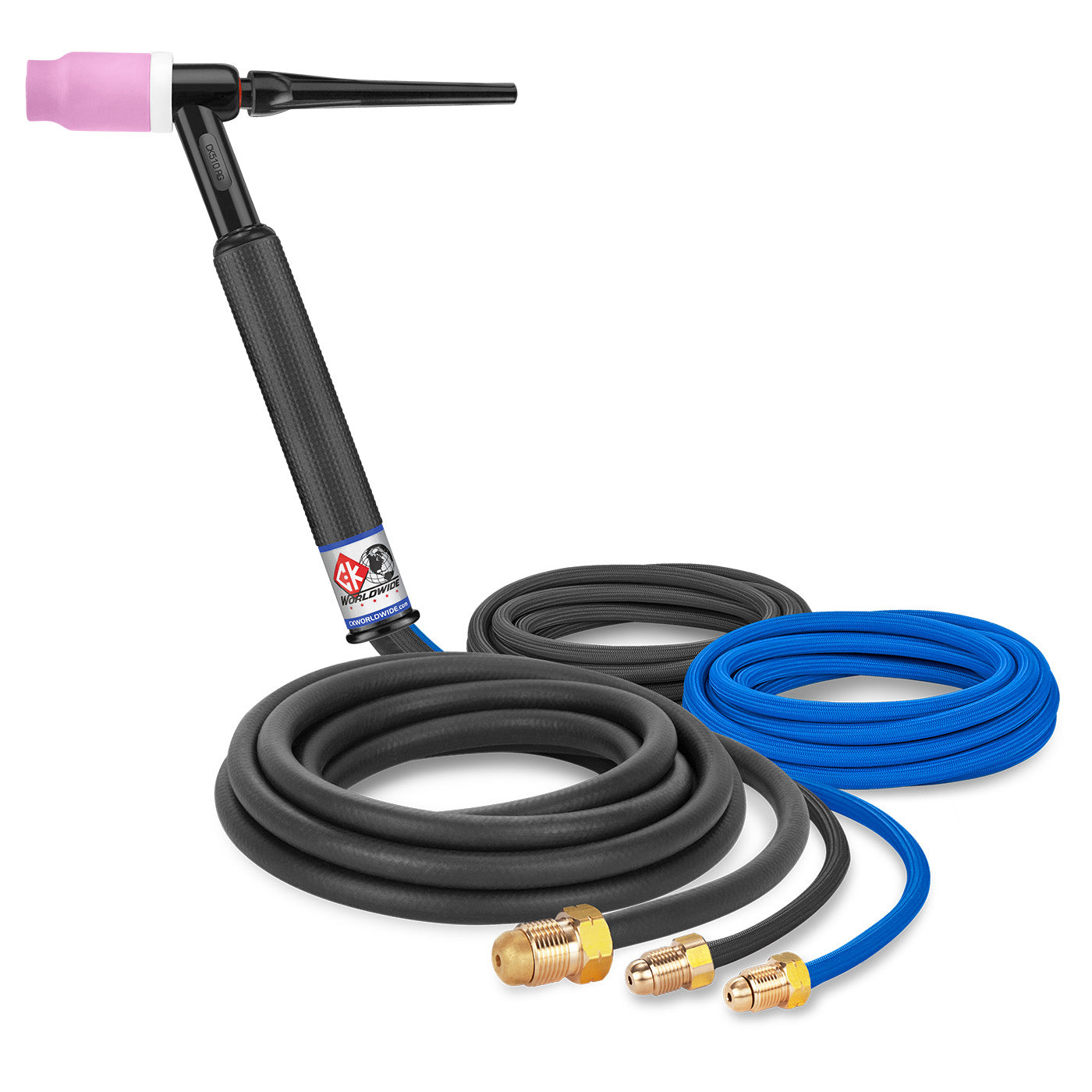

CK Worldwide CK5112SF - 500 Amp Water-Cooled TIG Torch, Rigid Head, 12.5' SuperFlex Cable

The CK5112SF delivers professional-grade precision in the world's smallest 500 amp TIG torch package. This water-cooled rigid head torch operates at 100% duty cycle with ACHF or DCSP current, featuring CK's Max Flow cooling technology and SuperFlex cables for maximum maneuverability in demanding fabrication environments.

Built for heavy-duty applications requiring sustained high amperage welding, this torch accommodates tungsten electrodes from .020" to 1/4" (0.5mm to 6.4mm). The rigid head design ensures stable arc control for critical weld joints, while the 12.5-foot SuperFlex cable assembly provides enhanced flexibility without sacrificing durability.

• 500 amp rating at 100% duty cycle (ACHF or DCSP)
• Water-cooled with Max Flow technology
• Rigid head for maximum stability and precision
• 12.5-foot SuperFlex cables for enhanced maneuverability
• Compact design — smallest 500 amp torch available
• Tungsten range: .020" to 1/4" (0.5mm to 6.4mm)
• Weight: 6-3/4 oz (191g)
• Overall length: 9-1/4" (23.5cm)
• Valve-free design for streamlined operation

Compatible Consumables

• 3C116 — 1/16" (1.6mm) Collet
• 3C332 — 3/32" (2.4mm) Collet
• 3C418 — 1/8" (3.2mm) Collet
• 3CB116 — 1/16" (1.6mm) Collet Body
• 3CB332 — 3/32" (2.4mm) Collet Body
• 3CB418 — 1/8" (3.2mm) Collet Body
• 3A5 — #5 (5/16") Alumina Cup
• 3A6 — #6 (3/8") Alumina Cup
• 3A8 — #8 (1/2") Alumina Cup
• 300L — Long Backcap

This torch integrates seamlessly with CK 3 Series and 51 Series head accessories, making it ideal for fabrication shops requiring versatile consumable options. The CK510 series represents the pinnacle of high-amperage TIG welding technology for professional welders demanding maximum performance in compact form.
