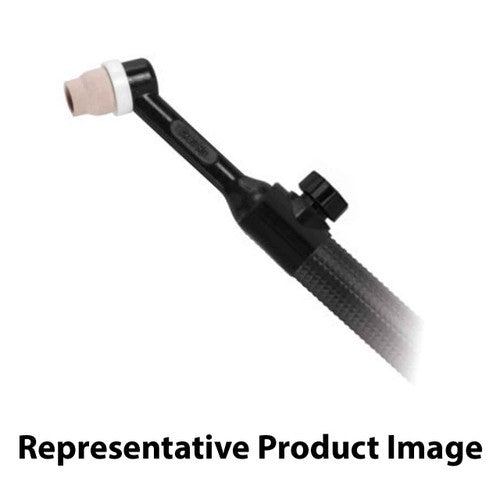

CK Worldwide CK812VH TIG Torch - 80 Amp Gas-Cooled with Valve, 12.5' Cable

The CK 80-amp rigid head TIG torch with valve delivers precise welding control and 100% duty cycle reliability for demanding fabrication work. This gas-cooled torch features an integrated valve on the handle for on-the-fly gas flow adjustment and standard 12.5-foot cables optimized for shop versatility.

• 80 amperage rating at 100% duty cycle (ACHF or DCSP)
• Rigid head design with valve for enhanced stability and gas control
• Gas-cooled system for efficient heat dissipation
• 12.5-foot standard cables with 1-piece construction
• 8-1/4" overall length, 2-1/4 oz weight
• 3/8" x 32 thread pattern with 5/8" x 18 collet body compatibility
• Compatible with CK 8 Series consumables and accessories

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL40 — .040" (1.0mm) Gas Lens
• 8GL116 — 1/16" (1.6mm) Gas Lens
• 80THS — Standard Heatshield

This torch integrates seamlessly with standard TIG welding power sources and accepts the full range of CK 8 Series consumables. The valve-equipped handle provides immediate gas flow control without returning to the machine, making it ideal for production welding and multi-pass applications where gas coverage precision is critical.
