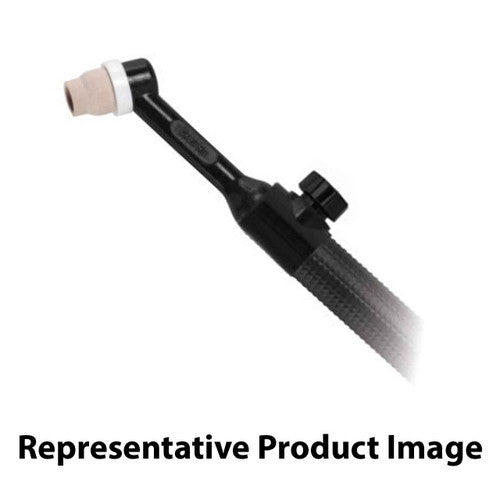

CK Worldwide CK812VHSF 80 Amp TIG Torch - Rigid Head with Valve, Gas-Cooled, 12.5' Super-Flex

The CK Worldwide CK812VHSF delivers 80 amp capacity at 100% duty cycle with precision rigid head design and integrated gas valve control. This professional-grade TIG torch combines superior heat dissipation with SuperFlex cable technology for demanding fabrication environments.

Built for consistent performance in high-amperage applications, this torch features a rigid head construction that ensures arc stability and precise tungsten positioning. The integrated valve on the handle provides immediate gas flow control, while the gas-cooled design efficiently manages heat during extended welding sessions. The 12.5-foot SuperFlex cables deliver exceptional flexibility without compromising electrical conductivity.

• Amperage Rating: 80 amps at 100% duty cycle on ACHF or DCSP
• Head Style: Rigid with integrated gas valve
• Cooling Type: Gas-cooled for maximum heat dissipation
• Cable Length: 12.5 feet (3.8m)
• Cable Type: SuperFlex for enhanced flexibility
• Weight: 2.25 oz (64g)
• Overall Length: 8.25 inches (20.9cm)
• Construction: One-piece design

Compatible Consumables

• 8C40 — .040" (1.0mm) Collet
• 8C116 — 1/16" (1.6mm) Collet
• 8CB40 — .040" (1.0mm) Collet Body
• 8CB116 — 1/16" (1.6mm) Collet Body
• 8A4 — #4 (1/4" 6.4mm) Alumina Cup
• 8A5 — #5 (5/16" 8.0mm) Alumina Cup
• 8A6 — #6 (3/8" 9.6mm) Alumina Cup
• 8GL40 — .040" (1.0mm) Gas Lens
• 8GL116 — 1/16" (1.6mm) Gas Lens
• 80THS — Standard Heatshield

This torch is compatible with standard 3/8" x 32 thread pattern consumables and integrates seamlessly with CK Series 8 accessories. The rigid head design makes it ideal for precision work requiring consistent arc placement, while the valve control allows welders to adjust gas flow without returning to the machine.
